One oven changed. Is your kitchen fitout drawing still current?

The replacement oven fits the same space. The supplier changes the model code on the quote, the builder keeps the old services drawing, and the rough-in meeting carries on. Nobody has checked whether the new appliance connects in the same places—or needs the same services at all.

Plan commercial kitchen services from a controlled equipment schedule and an assessed site, then reopen the affected design whenever a model changes. A similar footprint is not evidence that power, gas, water, drainage or ventilation remain suitable.

This guide follows a fictional oven substitution through a dependency register. Use it to make a change visible before pipes, cables and finished surfaces lock the assumptions in. It does not size services, design ventilation or approve an installation.

Start with the equipment and the premises together

An equipment wish list cannot override the building. Equally, an inherited power outlet or gas point does not prove the next machine can use it. Bring the proposed menu and equipment, existing supplies, access, landlord constraints and relevant approvals into the same design discussion.

Give every appliance a stable project ID, such as O1 for the main oven or D1 for the dishwasher. Record the exact offered model and variant beside it, including accessories and stand or stacking arrangements. When a brand or model changes, keep O1 as the job reference and record the revision underneath it.

Attach the current technical documents and connection drawings. Ask the supplier which details require a separate installation manual, accessory document or local configuration confirmation. A product photo and a nameplate rating are not the complete installation brief.

The designer and relevant qualified trades then assess the whole arrangement. This includes simultaneous use, neighbouring equipment, access for operation and maintenance, and any conditions imposed by the premises. Do not calculate an approved electrical supply or gas pipe size by adding numbers from this article.

Worked change: O1 becomes a different appliance package

Fictional design-review example, not actual model specifications. The first O1 proposal is an electric oven package. A later offer substitutes a gas-fired package with electrical controls. Both are described by the supplier as serving the same menu job. Neither has passed a loaded task or site assessment in this example.

The project has an equipment schedule R1, a coordinated services drawing C1 and a planned rough-in release. The changed quote is R2. Someone has written “same size” beside O1. That does not reconcile R2 with C1.

Scroll the table sideways to see every column.

All seven rows are open. That is not a prediction that seven construction changes are necessary. Some checks may establish that existing work remains suitable; others may require a changed location, appliance or service. Record the evidence either way.

The useful immediate decision is to hold the affected O1 rough-in release until the dependencies are resolved and a coordinated issue is authorised. The project lead should decide which other work can proceed independently. A change register is not permission to shut down every trade or to continue affected work on an untested assumption.

Turn each service into an answerable design question

Electrical: identify the exact supplied configuration, connection and nominated equipment operating together. Have the electrician assess supply capacity, protection, isolation and proposed points. Keep available supply, connected ratings and assessed demand as different fields. “There is three-phase in the building” does not confirm the complete installation.

Gas: confirm the appliance configuration and the site's actual gas supply. Ask the appropriately qualified gas practitioner to assess the complete arrangement and required work. Do not assume that changing gas type is always a permitted conversion, or that a different oven can inherit the previous connection detail.

Water and waste: show each appliance's required supplies, treatment, connection locations, drainage and cleaning access from its applicable documents. Ask who supplies the treatment components, tests the incoming water where needed and maintains the arrangement. Keep building drainage and trade-wastewater approval as explicit project questions.

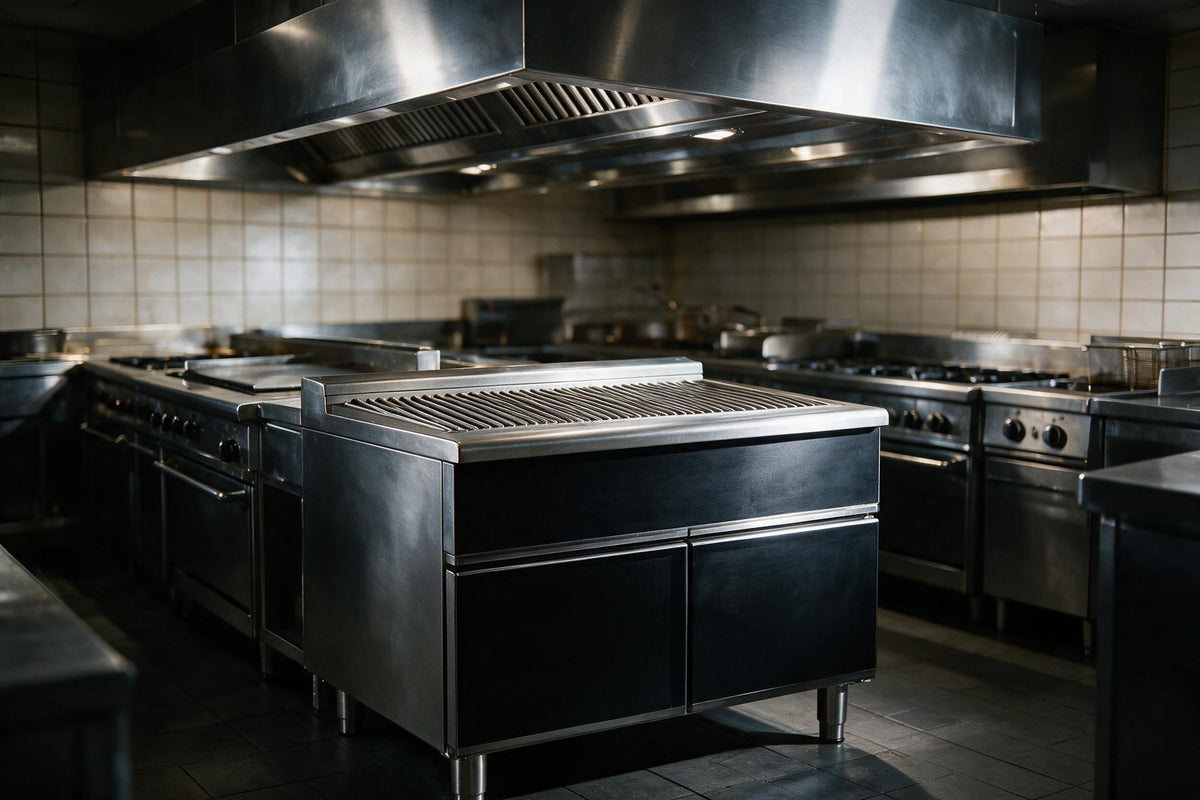

Ventilation: have the designer assess the proposed cooking line, heat and discharge arrangements, replacement air and the building constraints together. An existing canopy or unchanged appliance width is not approval of a substituted cooking task. Record who coordinates the appliance, mechanical and other relevant design requirements.

For context, Energy Safe Victoria's commercial-kitchen gas guidance connects appliance installation, air supply and surrounding-material issues. It is Victorian guidance, not a national installation recipe. Use the requirements and approvals that actually apply to the premises.

Use manufacturer documents without turning them into a universal rule

The official UNOX CHEFTOP-X/BAKERTOP-X user manual, version 2.6, includes appliance-specific water-treatment and washing information and precautions around access and nearby heat sources. It illustrates how equipment instructions can affect the surrounding arrangement. It is a user manual, not the project's complete installation design.

Do not copy a clearance, water-treatment claim or maintenance interval from one manual into every appliance row. Request the current installation documents and the supplied Australian configuration. Where an accessory or stack changes the arrangement, include those documents too.

Wastewater is also location-specific. Sydney Water's commercial trade-wastewater guidance describes permission and permit conditions, including applicable pre-treatment, within its area of operations. That is a reason to establish the relevant authority and approval path early—not to prescribe one grease-trap size or arrangement across Australia.

Attach a document reference and revision to every confirmed answer. “Supplier checked” is weak evidence if the quote changes tomorrow. Keep superseded drawings available as history, clearly marked as superseded so the installer can identify the current authorised issue.

Release work in stages with evidence at each handoff

Scroll the table sideways to see every column.

These are review checkpoints, not a claim that every fitout follows one construction order or finishes each stage in a day. The project designer and lead must adapt the sequence to the site and approvals. The critical feature is traceability: the next person knows which issue was accepted and what remains conditional.

Inspect delivery as well as service points. An appliance's shipping envelope, lifting arrangement or route through the building may differ from the final footprint. Confirm access before neighbouring work prevents placement, using an agreed handling plan rather than improvising on delivery day.

At handover, keep a successful equipment test separate from unresolved project items. One appliance starting normally does not confirm every extraction, drainage, approval or food-process requirement. Record the applicable evidence and who has authority to accept it.

Prepare the dependency register before the next change meeting

For your own supplier brief, record equipment revisions, site dependencies, included work, provider responsibilities and unresolved handoffs. Replace the fictional inputs with actual evidence and leave unresolved decisions visible.

“Please review this exact equipment revision against the site and current coordinated drawings. Identify every affected service, access requirement and approval; return the evidence and owner for each open row before the defined rough-in scope is released.”

Send your equipment schedule and current drawings through Atlantic Equipment enquiries or discuss the wider project through design and fitouts. If the purchase list itself is still unsettled, the commercial kitchen equipment buying guide helps connect menu jobs to the major-equipment shortlist.

Sources and example boundaries

• Energy Safe Victoria commercial-kitchen gas installation guidance: linked installation and air-supply questions; Victorian scope.
• UNOX CHEFTOP-X/BAKERTOP-X user manual, version 2.6: examples of appliance-specific use, water-treatment and surrounding-equipment conditions; not a substitute for installation documents.
• Sydney Water commercial trade wastewater: permission and permit conditions in its service area.

Checked 18 October 2026. O1, the R1/R2 equipment schedules, C1 drawing, C02 register row and unresolved substitution are fictional. No actual model equivalence, construction outcome, cost saving, required service size or installation approval is claimed.
