Overview

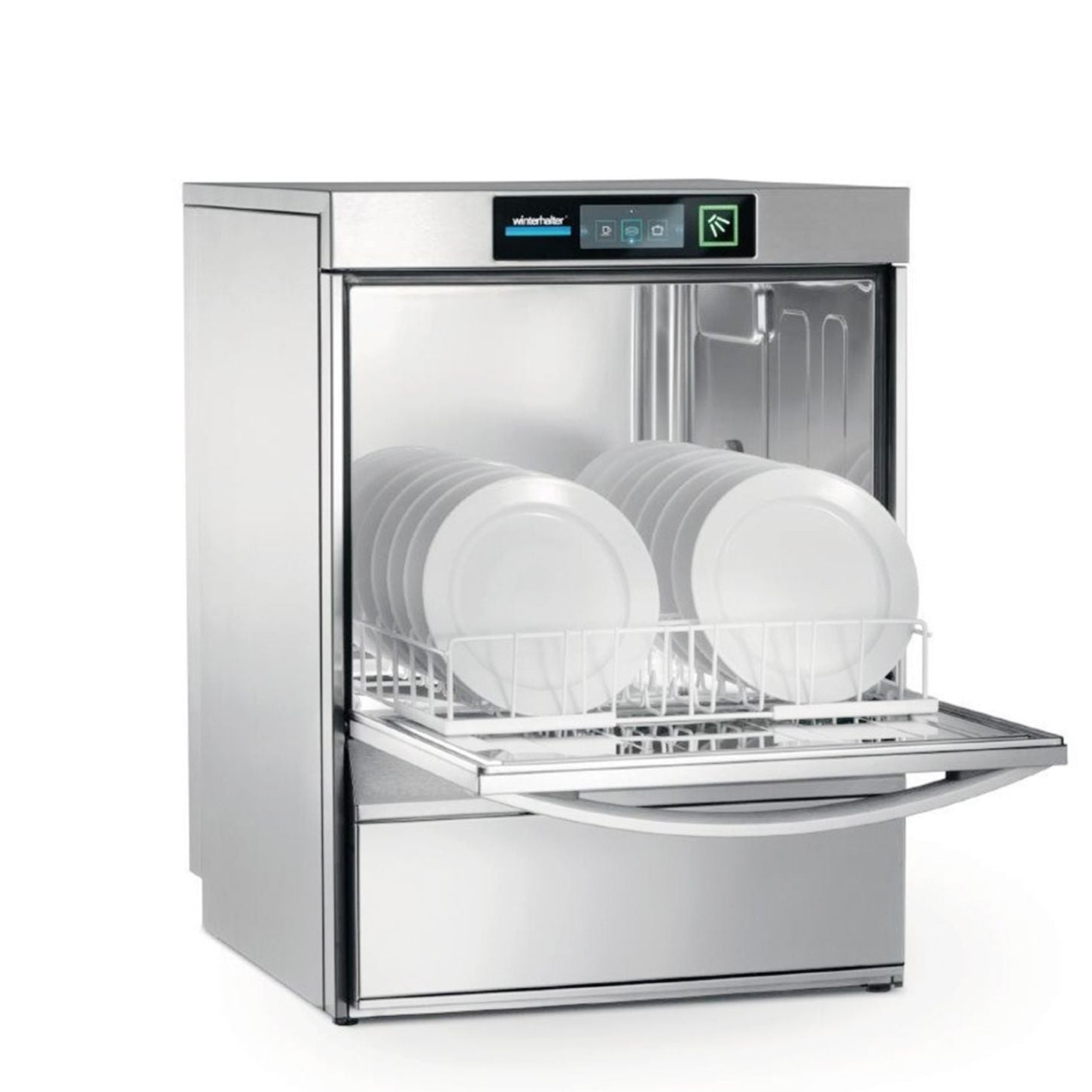

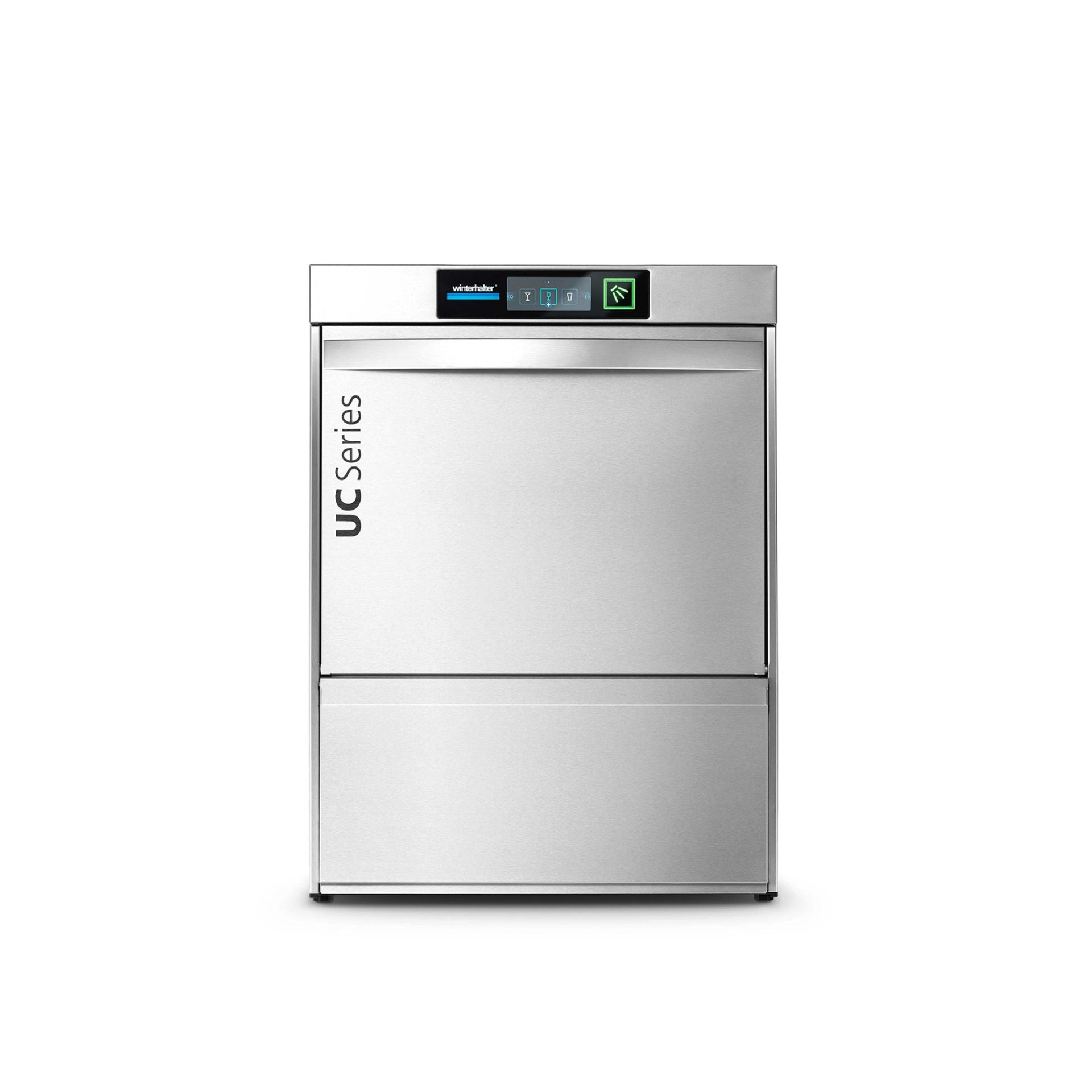

Winterhalter UC-XL Under Counter Warewasher 600 x 637 x 855mm

The Winterhalter UC-XL is a premium under counter warewasher built in Germany and engineered to meet the rigorous demands of commercial catering. Sized to fit neatly beneath standard bench heights, it delivers sparkling glasses, clean dishes and impeccable cutlery cycle after cycle, backed by an intuitive touchscreen interface, connected wash capability and PIN-protected operator and technician controls that keep operation straightforward and secure in any busy kitchen.

Winterhalter has designed the UC-XL as a configurable all-in-one system, pairing a double-skinned housing and door for superior heat retention with elliptical wash fields and special jet geometry for thorough, even coverage. Onboard detergent and rinse aid storage tanks, a four-stage filtration system, an eco programme and automated start-up and shut-down functions work together to hold running costs down while maintaining consistent hygiene outcomes across every service.

Key Benefits

• Intuitive touchscreen with detailed error codes and plain-text messages reduces downtime and simplifies staff training.
• Four-stage wash water filtration, incorporating a tank cover, filter cylinder, pump screen, clouding sensor and Mediamat, removes food debris at every stage to protect wash quality and extend machine life.
• Onboard detergent and rinse aid tanks with filling funnels and empty indicators ensure dosing is never interrupted mid-service.
• Eco programme and time-controlled automatic start-up and shut-down reduce energy and water consumption during quieter periods.
• Variopower wash pressure adjustment lets operators tailor wash intensity to suit delicate glassware or heavily soiled cookware.
• Hygiene logbook with onboard data memory supports compliance documentation and due-diligence record keeping.
• Double-skinned housing and door retain heat efficiently, lowering energy use and reducing steam release into the kitchen.
• Available in single-phase 15 amp or three-phase 20 amp hot-fill configurations to suit different site electrical setups.
• 24-month warranty and made-in-Germany build quality provide long-term reliability for high-volume commercial operations.

Key Features

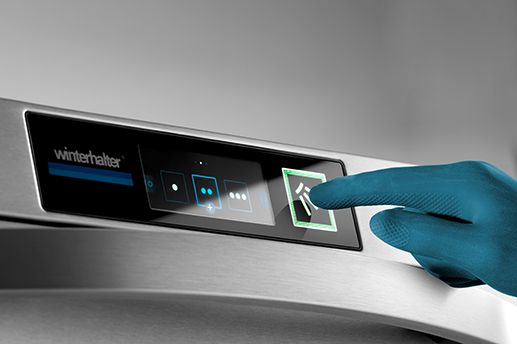

• Innovative touchscreen control panel with PIN-protected operator and technician access levels.
• Connected wash capability for remote monitoring and diagnostics.
• Double-skinned housing and door construction for thermal efficiency and reduced ambient heat.

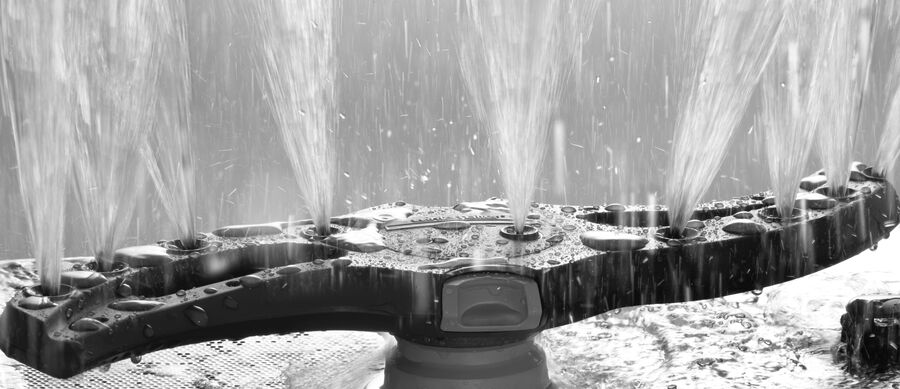

• Elliptical wash fields with special jet geometry for complete, even coverage of wash items.
• Variopower wash pressure adjustment to match wash intensity to item type.
• Four-stage wash water filtration system comprising a tank cover, filter cylinder, pump screen, clouding sensor and Mediamat.
• Dedicated internal storage tanks for detergent and rinse aid, each with integrated dosing devices and filling funnels.
• Empty indicators for both detergent and rinse aid to prevent dosing interruptions.
• Drain pump and dedicated rinse booster pump for consistent rinse performance.
• Eco programme for reduced water and energy consumption during lower-demand periods.
• Multiphasing capability for optimised cycle management.
• Time-controlled automatic start-up and shut-down for energy savings across the day.
• Maintenance interval indicator to support proactive servicing schedules.
• Detailed error display showing error code and descriptive text for rapid fault diagnosis.
• Hygiene logbook with onboard data memory for compliance and record keeping.
• Drop-down door for ergonomic loading and unloading.
• Full stainless steel construction inside and out for durability and easy cleaning.
• Manufactured in Germany.
• Standard electrical: 2.9 kW, 240 V single phase, 15 amp connection.
• Optional configuration: 7.1 kW, three-phase, 20 amp hot-fill (additional cost applies).
• Under counter installation type to maximise bench and floor space.
• 24-month warranty.

Specifications

• Width (mm): 600
• Depth (mm): 637
• Height (mm): 855
• Weight (kg): 69
• Colour: Stainless Steel
• Material: Stainless Steel
• Door Type: Drop-down
• Country of Origin: Germany
• Warranty (months): 24
• Installation Type: Undercounter
• Voltage/Phase: 240V/1P
• Power Rating: 240v, 2.9 kw , 15 Amp connection
• Power Supply: Single Phase
• Fuel Type: Electric
