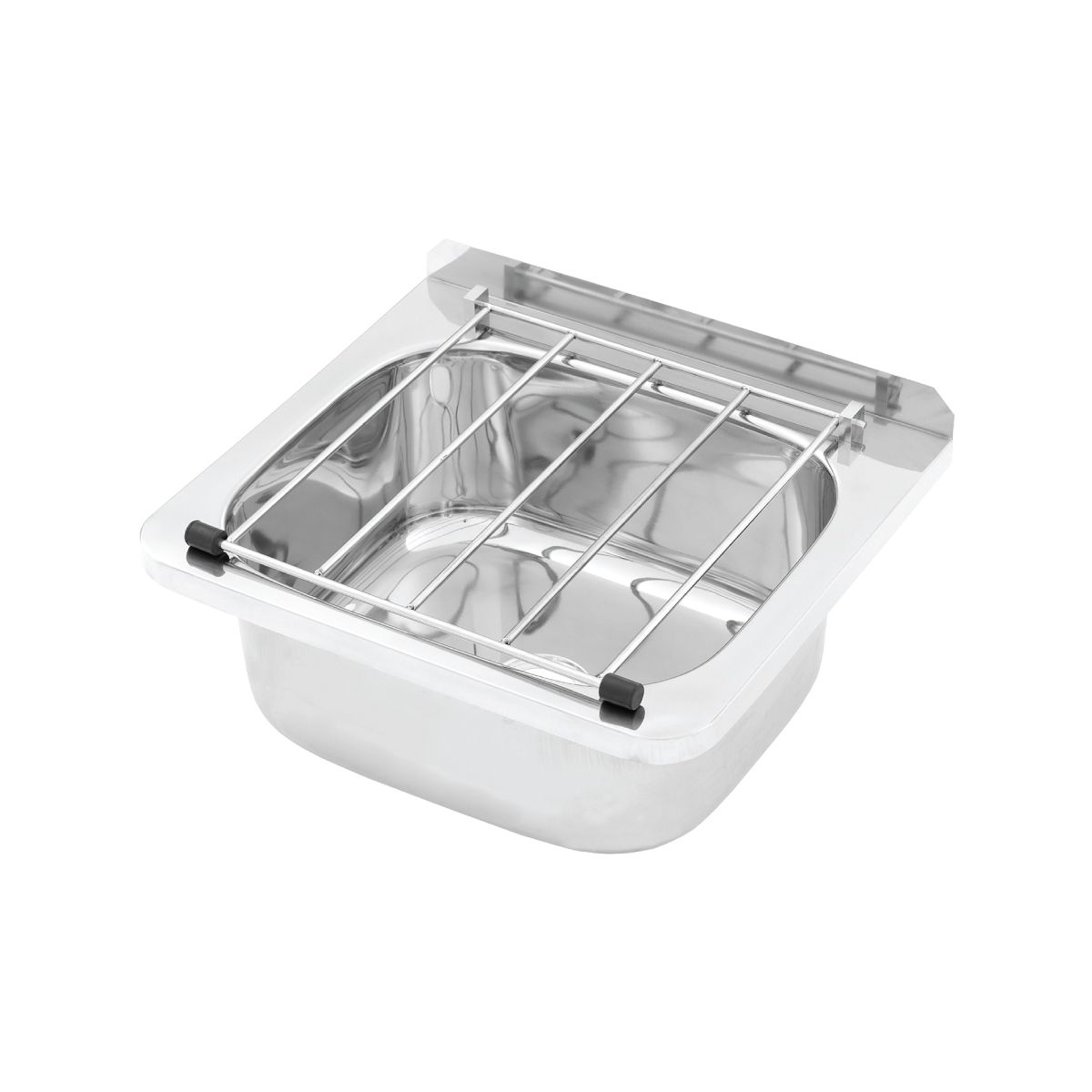

F.H.E AB-CS-B Cleaners Sink with Hinged Grate and Wall Mount Brackets

The F.H.E AB-CS-B is a wall-mounted cleaners sink built from 1mm 304 grade stainless steel with a mirror polish finish, purpose-designed for demanding commercial environments including restaurants, cafes, bars, and busy kitchen operations. The unit features a large-capacity tub with a hinged grate positioned over the bowl, a 50mm splashback, and comes supplied complete with stainless steel wall mount brackets for secure installation.

Engineered and manufactured in Australia, the AB-CS-B is available with either stainless steel wall mount brackets or stainless steel legs to suit varying installation requirements. The 90mm outlet accommodates a basket waste or 90mm Scraptrap, and the SAFETEE-STRIP finish option eliminates sharp edges for a safer working environment. Professional installation by a licensed plumber is required.

Key Benefits

• 304 grade stainless steel construction delivers strong corrosion resistance and long-lasting durability under heavy daily commercial use
• Mirror polish finish creates a hygienic, easy-to-clean surface that maintains a professional appearance over time
• Hinged grate keeps large debris out of the drainage system while providing a convenient resting surface, reducing plumbing blockages
• 90mm outlet supports both basket waste and 90mm Scraptrap fittings, giving flexibility in plumbing configuration
• 50mm splashback helps contain splashing and protects the adjacent wall surface during cleaning tasks
• Wall mount brackets included, allowing straightforward and secure installation without additional hardware purchases
• Available with stainless steel legs as an alternative mounting option to suit different site layouts
• SAFETEE-STRIP compatibility removes sharp edges from the unit, improving safety for kitchen and cleaning staff
• Compact footprint makes this sink a practical choice in tight utility and back-of-house areas where space is limited

Key Features

• Constructed from 1mm 304 grade stainless steel throughout
• Mirror polish finish
• Large-capacity tub with 250mm bowl depth and 2-litre capacity
• Hinged grate included, positioned over the sink bowl
• 50mm splashback integrated into the unit
• 90mm drain outlet suits basket waste or 90mm Scraptrap

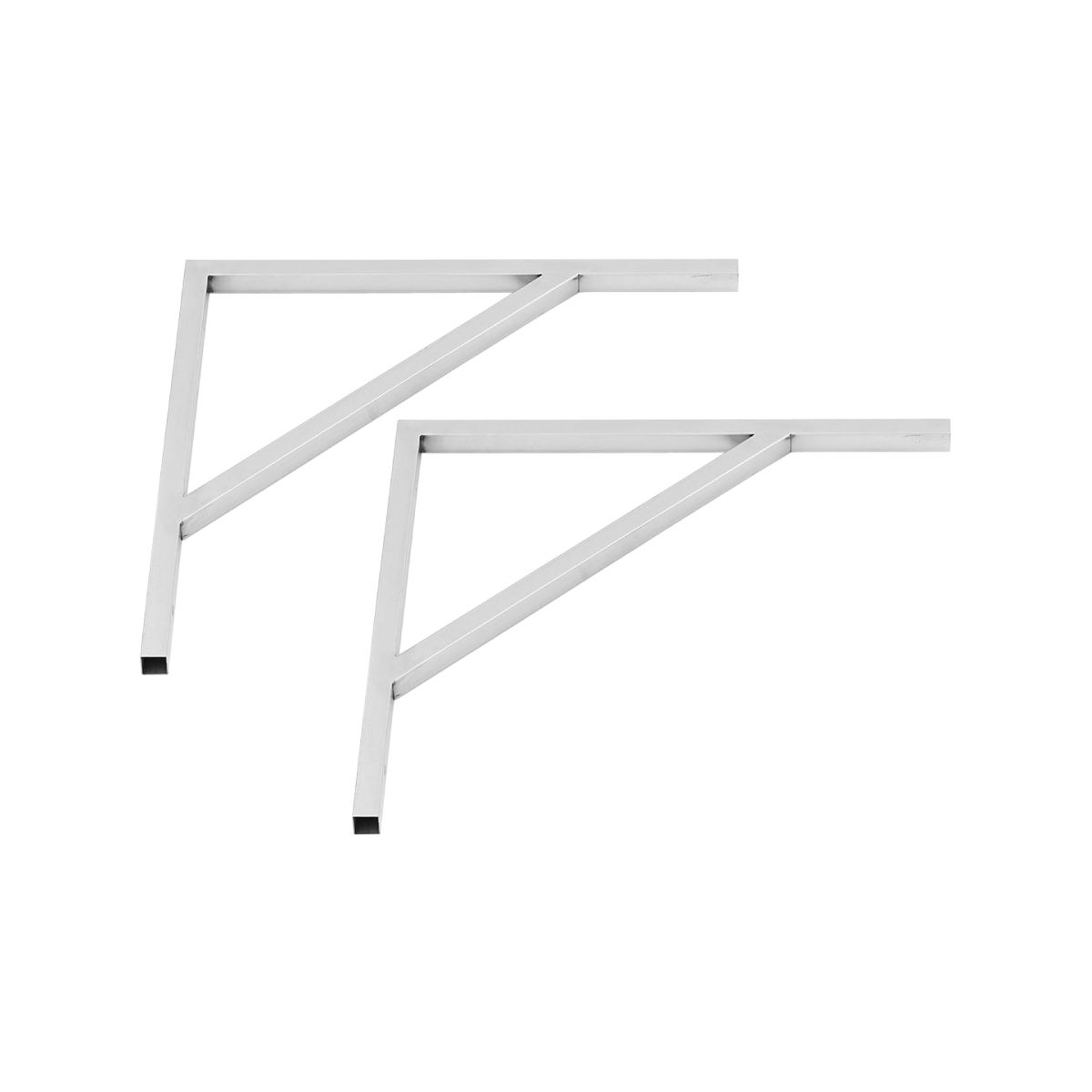

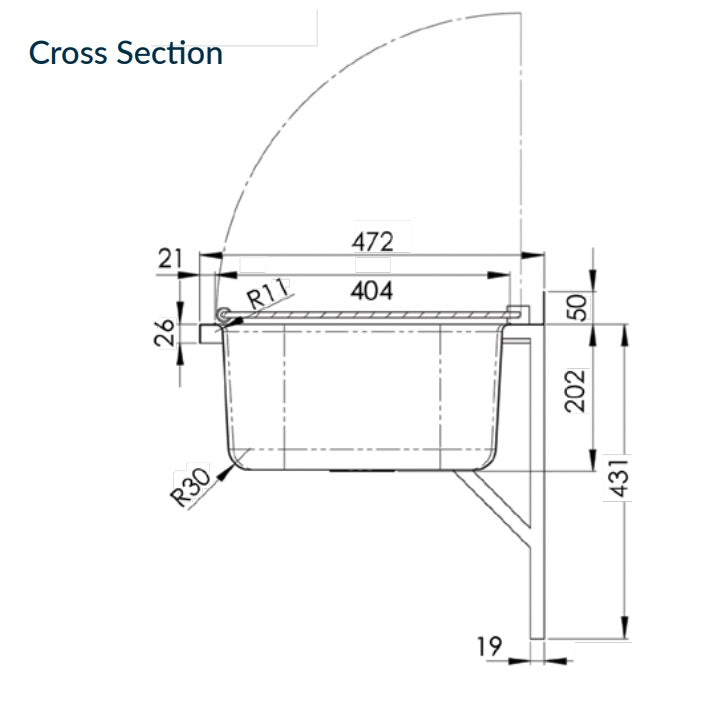

• Supplied complete with stainless steel wall mount brackets

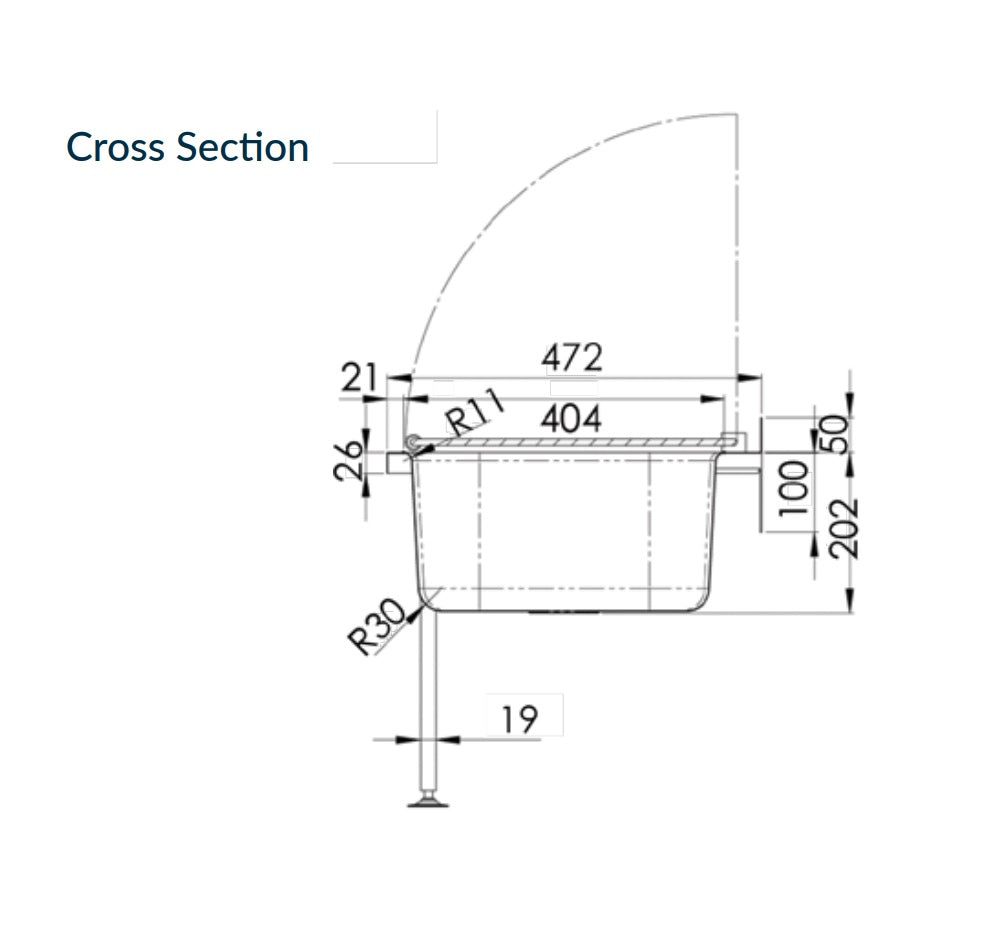

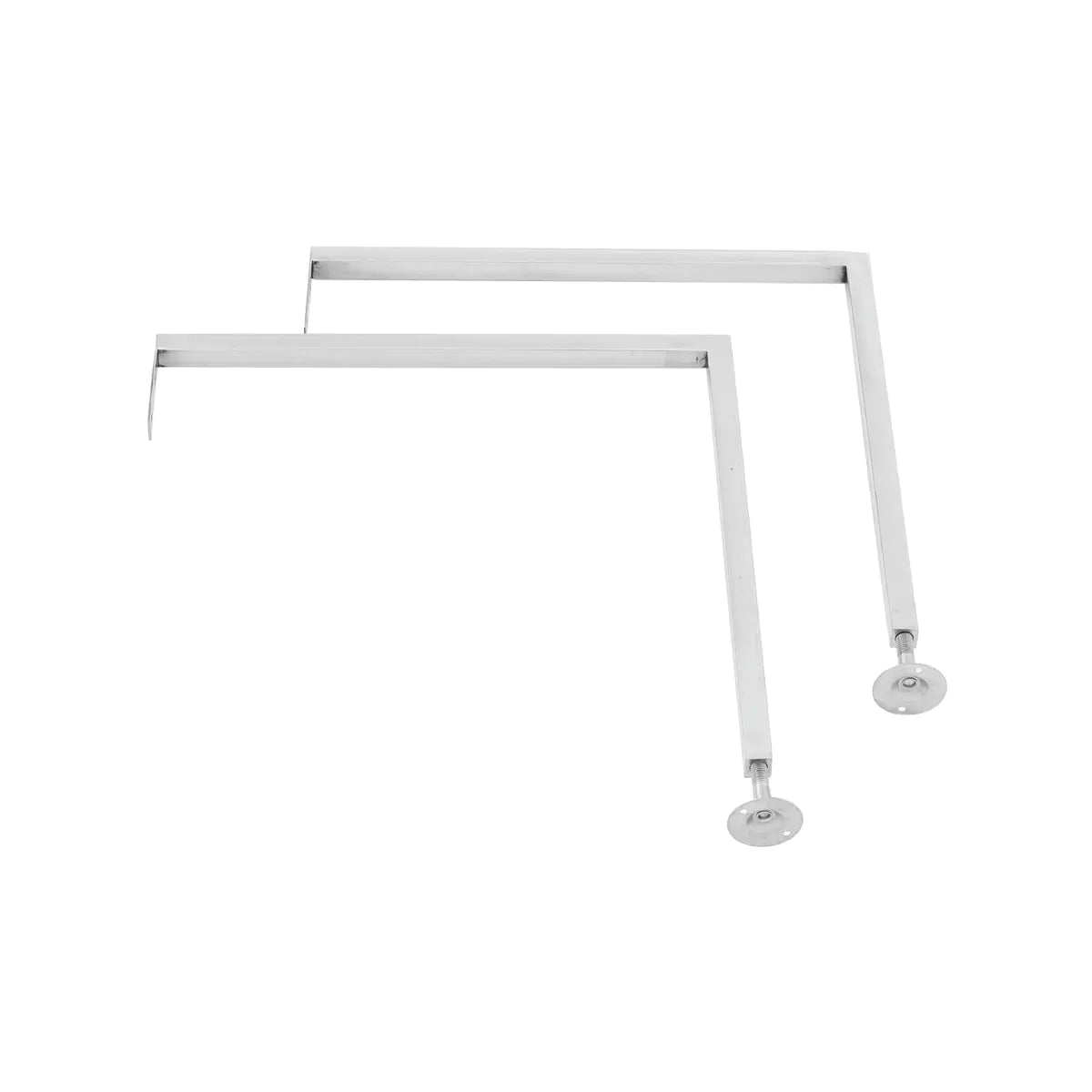

• Also available configured with stainless steel legs
• SAFETEE-STRIP compatible for sharp-edge elimination
• Wall-mounted installation type
• Country of origin: Australia
• Must be installed by a licensed plumber
• 60-month warranty

Specifications

• Width (mm): 530
• Depth (mm): 590
• Height (mm): 330
• Weight (kg): 5
• Colour: Mirror polish
• Drain/Outlet Size (mm): 90
• Packed Width (mm): 530
• Packed Depth (mm): 590
• Packed Height (mm): 330
• Shipping Weight: 7
• Shipping Cubic: 0.045000000m3
• Capacity (Litres): 2
• Bowl Depth (mm): 250
• Material: Stainless Steel
• Undershelf: No
• Splash Back: 50 mm
• Installation Type: Wall Mounted
• Mounting Type: Wall Mounted
• Country of Origin: Australia
• Warranty (months): 60.0
