Overview

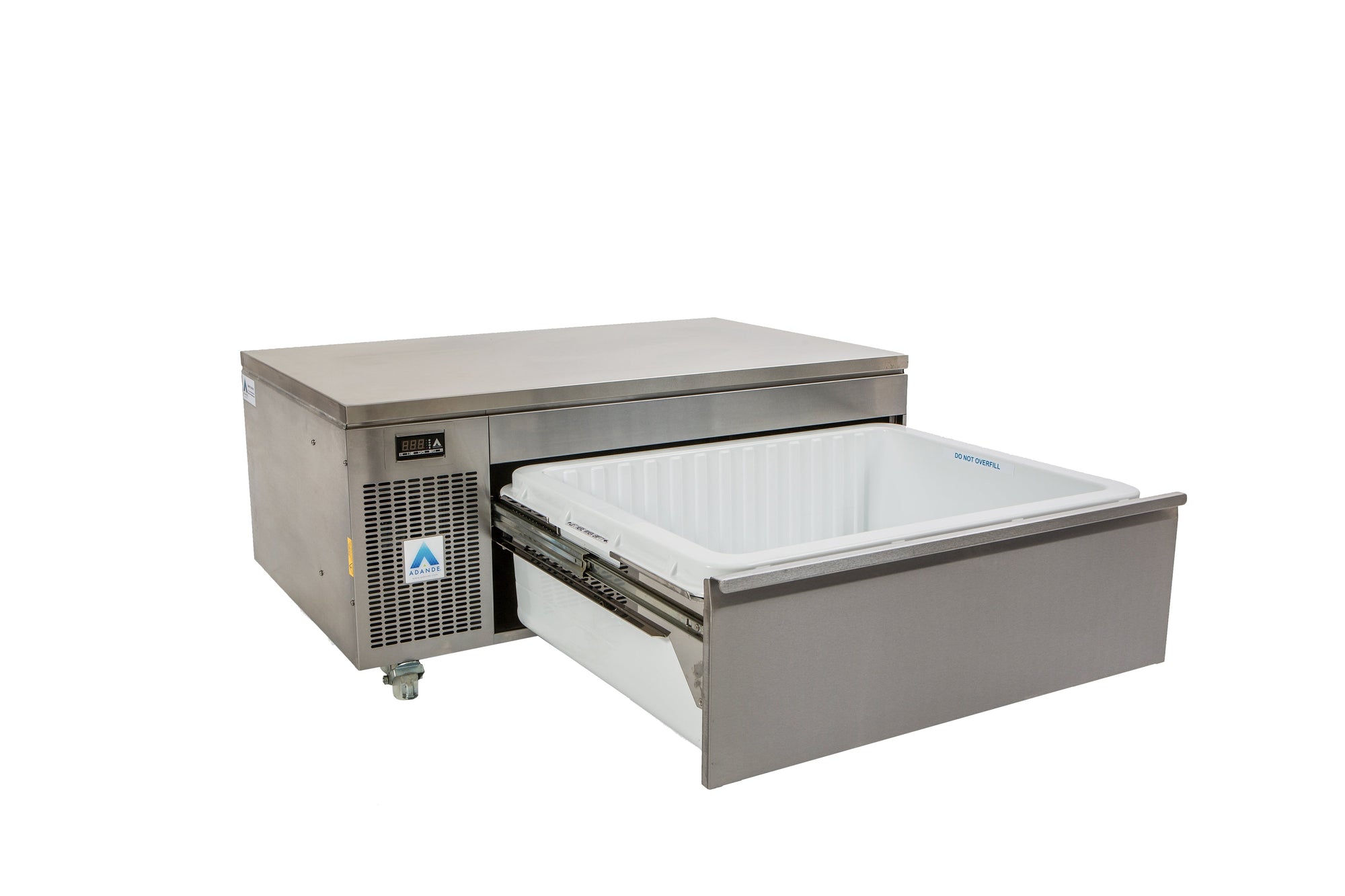

Adande VCS1.RW Single Refrigerated Drawer Unit with Side Engine and Solid Worktop

The Adande VCS1.RW is a single-drawer refrigerated unit built around Adande's patented drawer refrigeration technology, trusted in commercial kitchens worldwide. Featuring a side-mounted compressor and solid stainless steel worktop, it operates across a wide dual temperature range of +15°C to -22°C in precise 1°C increments, making it equally suited to chilled and frozen applications beneath the pass or prep bench.

Engineered for demanding environments with a Climate Class 4 (Tropical) rating, this unit runs on just 2.1 kWh per 24 hours and holds up to 4 x 1/1 GN 100mm deep pans. Its 'hold the cold' insulated container technology, low-velocity airflow and automatic defrost work together to preserve food in frost-free, dehydration-free condition, significantly extending shelf life and reducing spoilage in high-throughput kitchens.

Key Benefits

• Under-bench positioning puts refrigerated or frozen storage directly at the point of use, accelerating service speed on the line.
• Precise digital temperature control across a wide +15°C to -22°C range in 1°C increments means a single unit can serve as a fridge or freezer depending on the application.
• Low-velocity cooling maintains stable temperatures and exceptional humidity, preventing food from drying out and extending shelf life compared to conventional refrigeration.
• Insulated drawer containers retain cold air when the drawer is opened, reducing temperature recovery time and lowering overall energy consumption.
• A condensate burn-off tray eliminates the need for a waste drain point, simplifying installation and reducing plumbing costs.
• Adjustable levelling rollers allow the unit to be positioned precisely on uneven floors, with simple installation requiring only a level surface within a 5mm fall to the rear.
• External drawer runners keep mechanical components accessible and easy to wipe down, supporting fast cleaning and strong hygiene compliance.
• Each drawer includes a divider and keyed-alike locks, helping with food segregation, stock rotation and kitchen security.
• A removable internal bin makes cleaning straightforward and assists with efficient stock rotation, minimising waste.

Key Features

• Patented Adande modular refrigerated drawer system configurable as a worktop or undercounter unit for versatile kitchen layouts.
• Single drawer holding 4 x 1/1 GN 100mm deep pans with 65-litre capacity.
• Dual temperature range: +15°C to -22°C adjustable in 1°C increments via digital temperature controller.
• Blast chiller option available.
• Side-mounted compressor for easy access and servicing.
• Automatic defrost system for low-maintenance operation.
• Low-maintenance internal condenser.
• Climate Class 4 (Tropical) rated, designed to operate in ambient temperatures up to 40°C.
• Energy consumption of 2.1 kWh per 24 hours with R600a refrigerant.
• Solid stainless steel worktop rated to a maximum load of 230 kg.
• Adjustable levelling rollers; must be installed level with a maximum rear fall of 5mm.
• External drawer runners for improved hygiene and easier cleaning.
• Each drawer supplied with a divider and keyed-alike lock.
• Removable bin to assist with cleaning and stock rotation.
• Condensate burn-off tray eliminates the need for a waste drain connection.
• 'Hold the cold' insulated container technology retains cold air when the drawer is opened.
• Low-velocity airflow prevents food dehydration and preserves product in frost-free condition.
• Stainless steel construction throughout.
• Plug and lead fitted (10A plug); single-phase electric, 0.28 kW power draw.
• Manufactured in the United Kingdom.
• 24-month parts and labour warranty standard; extended 5-year warranty available upon product registration.

Specifications

• Width (mm): 1100
• Depth (mm): 700
• Height (mm): 458
• Weight (kg): 137
• Colour: Stainless
• Gas Type: R600a
• Power (kW): 0.28
• Power Type: Electric
• Amps (A): 10
• Plug Type: Plug & Lead
• Voltage/Phase: 10A plug & lead fitted
• Material: Stainless steel
• Door Type: Drawer
• No. of Doors: 1
• Country of Origin: United Kingdom
• Warranty (months): 24
• Energy Consumption (kWh/24h): 2.1
• Capacity (Litres): 65
• GN Capacity: 4 x 1/1 GN D100mm
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Drawer Fridge
• Compressor Location: Side
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
