Overview

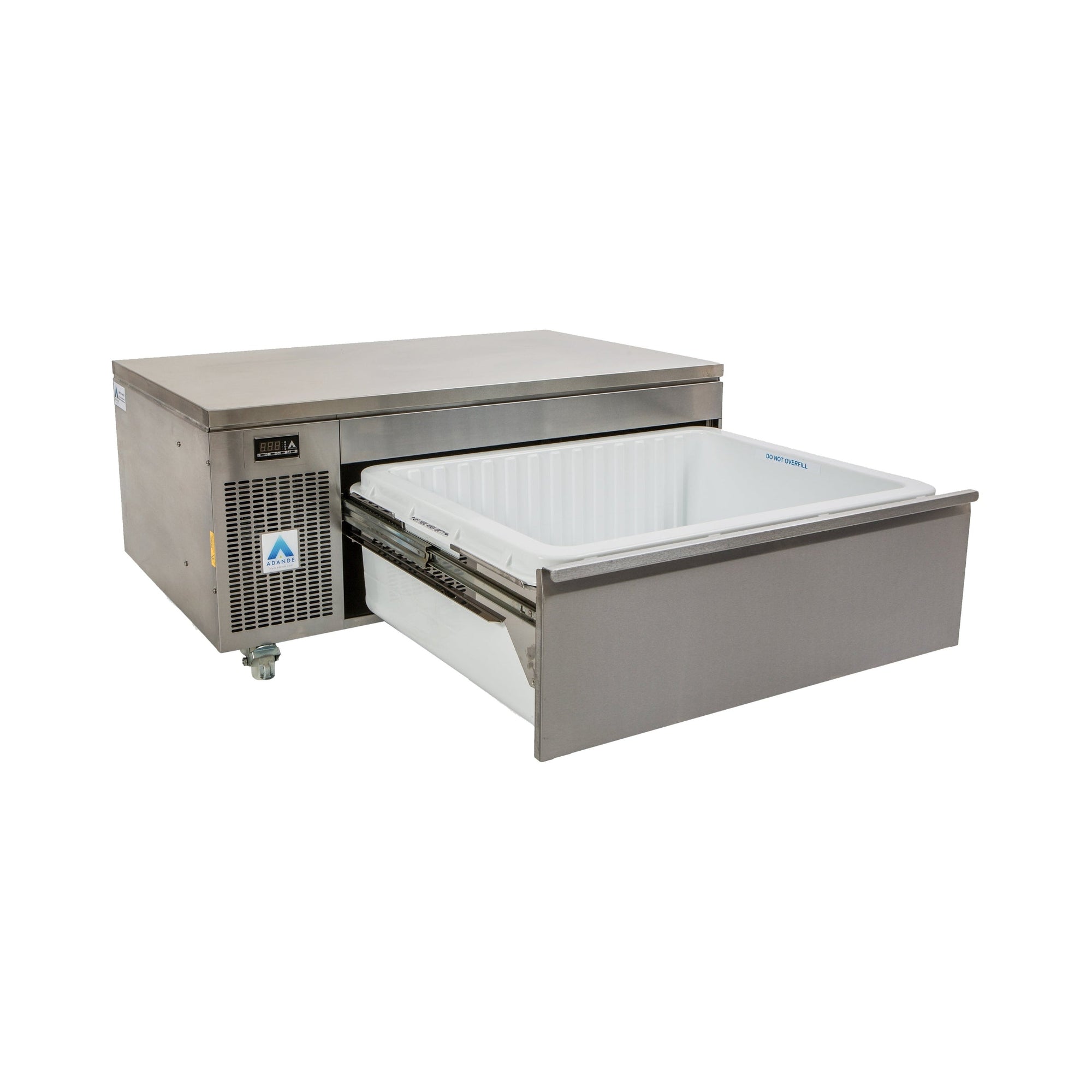

Adande VLS1.CHS Single Slimline Refrigerated Drawer Unit with Heat Shield Top and Standard Castors

The Adande VLS1.CHS is a single slimline refrigerated drawer unit from Adande's modular side-engine series, purpose-built for demanding commercial kitchen environments. Fitted with a heat shield top and standard adjustable castors, it delivers precise temperature control across a wide range from +15°C down to -22°C in 1°C increments, making it equally suited to refrigeration, mild chilling and blast chiller applications. Rated to operate in ambient temperatures up to 40°C (Climate Class 4 Tropical), it draws just 1.9 kWh per 24 hours, keeping running costs and environmental impact low.

Adande's patented 'hold the cold' insulated container technology means the drawer retains its cold mass when opened, minimising temperature fluctuation during busy service. Low-velocity cooling maintains exceptional humidity inside the drawer, preventing food dehydration and preserving ingredients in frost-free, pristine condition to extend shelf life and reduce spoilage. The unit accommodates 4 x 1/1 GN 100 mm deep pans, accepts a maximum load of 300 kg, and connects via a standard 10A plug and lead, making installation straightforward in any commercial kitchen.

Key Benefits

• Precise 1°C-increment digital temperature control from +15°C to -22°C lets operators dial in exactly the right storage conditions for any ingredient or application.
• Patented insulated drawer containers retain cold when the drawer is opened, protecting food safety and reducing compressor workload during high-frequency access on the line.
• Low-velocity airflow keeps humidity stable inside the drawer, preventing dehydration and keeping produce, proteins and prepared items in pristine condition for longer.
• Ultra-low energy consumption of just 1.9 kWh per 24 hours cuts electricity costs and supports sustainability goals without compromising performance.
• Slimline footprint (1100 mm W x 700 mm D x 485 mm H) and undercounter height make it ideal for tight pass or prep areas where bench space and floor space are at a premium.
• Standard adjustable levelling castors allow easy repositioning and ensure the unit sits level for optimal operation, with a maximum allowable fall of 5 mm to the rear.
• External drawer runners keep mechanical components accessible and away from food contact areas, simplifying daily cleaning and routine maintenance.
• Condensate burn-off tray eliminates the need for a waste drain point, reducing installation complexity and improving convenience.
• Modular design allows the unit to be configured as a worktop or undercounter system and paired with a wide range of tops, bases and accessories to suit changing kitchen requirements.

Key Features

• Single slimline drawer unit, side-engine configuration, from Adande's modular refrigerated drawer series.
• Patented insulated drawer containers use 'hold the cold' technology to maintain temperature when the drawer is opened.
• Adjustable digital temperature controller with precise 1°C increments; range +15°C to -22°C, covering refrigeration through to freezing and blast chiller applications.
• Low-velocity cooling system delivers stable temperatures and superior humidity control, leaving food frost-free and preventing dehydration.
• Holds 4 x 1/1 GN 100 mm deep pans; 86-litre total capacity.
• Maximum weight loading of 300 kg.
• Energy consumption of 1.9 kWh per 24 hours.
• Designed and rated to operate in ambient temperatures up to 40°C (Climate Class 4 Tropical).
• R600a refrigerant; 0.28 kW power draw.
• Connects via standard 10A plug and lead; single-phase electric.
• Heat shield top included as standard.
• Standard adjustable levelling castors included; unit must be installed level with a maximum fall of 5 mm to the rear.
• External drawer runners for ease of cleaning and improved hygiene.
• Each drawer supplied with a divider and keyed-alike locks for added security.
• Removable bin facilitates easy cleaning and assists with stock rotation.
• Low-maintenance internal condenser.
• Condensate burn-off tray eliminates the requirement for a plumbed waste point.
• Automatic defrost.
• Stainless steel construction; manufactured in the United Kingdom.
• Modular system: configurable as undercounter or worktop unit, compatible with a range of tops, bases and accessories.
• 24-month parts and labour warranty standard; extended 5-year warranty available upon product registration.

Specifications

• Width (mm): 1100
• Depth (mm): 700
• Height (mm): 485
• Weight (kg): 144
• Colour: Stainless
• Gas Type: R600a
• Power (kW): 0.28
• Power Type: Electric
• Amps (A): 10
• Plug Type: Plug & Lead
• Voltage/Phase: 10A plug & lead fitted
• Material: Stainless steel
• Door Type: Drawer
• No. of Doors: 1
• Country of Origin: United Kingdom
• Warranty (months): 24
• Energy Consumption (kWh/24h): 1.9
• Capacity (Litres): 86
• GN Capacity: 4 x 1/1 GN D100mm
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Drawer Fridge
• Compressor Location: Side
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
