Overview

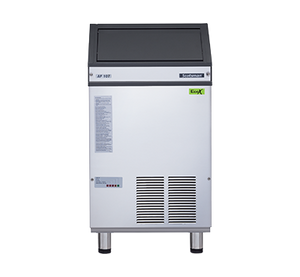

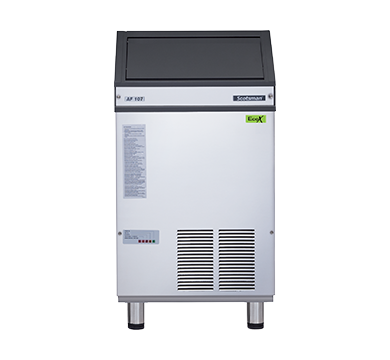

Scotsman AF 107 AS OX 126kg XSafe Self-Contained Flake Ice Maker

The Scotsman AF 107 AS OX is a self-contained, air-cooled flake ice maker capable of producing up to 126kg of ice per 24 hours, with a built-in 30kg storage bin. Designed for demanding commercial environments, it uses R290 refrigerant and incorporates Scotsman's XSafe Natural Sanitation System alongside Agion antimicrobial technology to deliver consistently clean, hygienic ice. The stainless steel exterior, stainless steel auger, and freezing cylinder evaporator are built to withstand the rigours of continuous kitchen use.

Compact enough to fit neatly into service areas, the AF 107 AS OX features a front-access condenser air filter, a clean alert indicator, and simple electromechanical controls that keep daily operation straightforward. The PWD Progressive Water Discharge function can remove excess residual water over distances of up to 15 metres, and the water-in/ice-out concept minimises energy, water, and time wastage. Flake ice with a 25% residual water content makes this machine well suited to seafood displays, buffet presentations, food preservation, and beverage service across restaurants, hotels, healthcare facilities, and retail environments.

Key Benefits

• Up to 126kg daily ice output with a 30kg integrated storage bin keeps pace with high-volume service demands without requiring a separate bin unit.
• XSafe Natural Sanitation System combined with Agion antimicrobial technology actively resists bacterial growth, mould, and odour development, helping maintain food safety compliance.
• R290 natural refrigerant delivers energy-efficient, low-global-warming-potential performance in line with modern sustainability requirements.
• The water-in/ice-out concept reduces unnecessary energy consumption, water usage, and production time compared to conventional ice-making cycles.
• PWD Progressive Water Discharge removes excess residual water at distances of up to 15 metres, offering greater flexibility in drain line routing and installation placement.
• Front-access condenser air filter and a clean alert indicator simplify routine maintenance, reducing downtime and keeping performance consistent.
• Soft, moist flake ice with 25% residual water content conforms closely to food surfaces, enabling rapid, gentle cooling ideal for delicate produce, seafood, and display merchandising.
• Simple electromechanical controls and external indicator lights allow operators to monitor machine status and manage ice production with minimal training.
• Self-contained, air-cooled design with front ventilation allows flexible placement even in confined spaces, eliminating the need for external condensing equipment.

Key Features

• 126kg per 24-hour daily ice production rate
• 30kg built-in storage bin capacity
• Flake ice with 25% residual water content
• XSafe Natural Sanitation System for ongoing hygiene management
• Agion Technology embedded to inhibit microbial growth and prevent odour development, producing pure, clear ice
• Stainless steel auger and freezing cylinder evaporator for durable, consistent ice formation
• PWD Progressive Water Discharge function capable of removing residual water up to 15 metres
• R290 natural refrigerant gas
• Air-cooled, self-contained refrigeration system
• Front-access removable condenser air filter for easy cleaning
• Clean alert indicator signals when filter maintenance is required
• External indicator lights to display operational status
• Simple, reliable electromechanical controls
• Water-in/ice-out production concept to limit excess energy, water, and time wastage
• Resistant stainless steel exterior
• Dimensions: 592mm (W) x 622mm (D) x 1078mm (H) including legs
• Electrical rating: 230-240V, 1P+N+E, 50Hz, 400W; 10A cordset supplied
• Water consumption: 3.3 litres per hour
• Maximum ambient operating temperature: 40°C
• Packed weight: 74kg
• Includes removable air filter, ice scoop, water hose, and drain hose
• Gravity drain only
• Regular six-monthly water filter cartridge replacement and evaporator de-scaling recommended to maintain ice quality, machine longevity, and food safety compliance

Specifications

• Width (mm): 592
• Depth (mm): 622
• Height (mm): 1078
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 3.3 liters per hour
• Shipping Weight: 74
• Packed Width (mm): 592.0
• Packed Height (mm): 1078.0
• Packed Depth (mm): 622.0
• Shipping Cubic: 0.396945000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 9kWh/hr
• Capacity (Litres): 30
• Ice Production: 100
• Ice Storage: 30
• Refrigeration Type: Air Cooled
• Cooling Type: Air Cooled
• Ice Type: Cube
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Half Dice
• Installation Type: Self-Contained
• Voltage/Phase: 230V 50Hz
