Overview

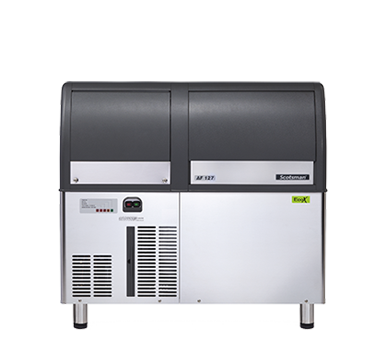

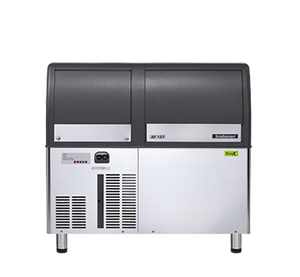

Scotsman AF 127 AS OX 121kg XSafe Self-Contained Flake Ice Maker

The Scotsman AF 127 AS OX is a self-contained flake ice maker producing up to 121 kg of flake ice every 24 hours, with a built-in 40 kg storage bin for continuous on-demand supply. Designed for demanding commercial environments including seafood counters, food displays, salad bars, and healthcare applications, it combines a stainless steel auger and freezing cylinder evaporator with a front-vented air-cooled condenser for flexible placement against walls or under counters.

The AF 127 AS OX features the XSafe Natural Sanitation System alongside Agion antimicrobial technology, which together inhibit the growth of bacteria, mould, and odour-causing microbes to deliver pure, hygienic flake ice every cycle. The PWD Progressive Water Discharge function expels excess residual water up to 15 metres, while the water-in/ice-out concept minimises energy, water, and time wastage. Simple electromechanical controls, a clean-alert filter indicator, and easy-access front condenser air filter make daily operation and routine maintenance straightforward.

Key Benefits

• Produces up to 121 kg of soft, pliable flake ice per 24 hours, providing a reliable supply for food preservation, chilled displays, and beverage service
• Integrated 40 kg storage bin ensures ice is available on demand throughout busy service periods without requiring a separate bin purchase
• XSafe Natural Sanitation System combined with Agion antimicrobial technology continuously suppresses bacteria, mould, and odours for consistently food-safe ice
• Water-in/ice-out design reduces excess energy consumption, water usage, and production time compared with conventional ice-making cycles
• PWD Progressive Water Discharge expels residual water up to 15 metres, giving flexible drain placement in tight or complex kitchen layouts
• Front-vented air-cooled condenser with removable, easy-access filter allows installation against walls or under counters without additional clearance requirements
• Clean-alert indicator and external operation status lights prompt timely maintenance and give at-a-glance machine status during service
• Stainless steel exterior, auger, and freezing cylinder evaporator provide lasting corrosion resistance and professional finish in high-traffic environments
• Flake ice conforms to product surfaces for rapid, even cooling and gentle contact, making it ideal for seafood, produce, and healthcare temperature management

Key Features

• 121 kg per 24-hour daily ice production capacity
• Built-in 40 kg storage bin included as part of the self-contained unit
• Residual water content of 25% in produced flake ice
• XSafe Natural Sanitation System for continuous air and water hygiene inside the machine
• Agion antimicrobial technology integrated into ice-contact components to resist microbial growth and odour development
• PWD Progressive Water Discharge system capable of expelling excess water up to 15 metres
• Water-in/ice-out concept minimises energy, water, and time wastage during production cycles
• Stainless steel auger and freezing cylinder evaporator for durability and hygienic ice formation
• Air-cooled condenser with front-venting for flexible, space-efficient installation
• Easy-access front condenser air filter that is removable for quick cleaning
• Clean-alert indicator to prompt timely filter cleaning and maintenance
• External indicator lights displaying operational status at a glance
• Simple, reliable electromechanical controls for consistent daily operation
• Resistant stainless steel exterior finish
• Includes removable air filter, ice scoop, water hose, and drain hose
• Maximum ambient operating temperature of 40°C
• Dimensions: 950 mm wide x 605 mm deep x 872 mm high (including legs)
• R290 natural refrigerant noted in current product specification
• Energy consumption: 10.5 kW per 24 hours
• Water consumption: 4 litres per hour
• Rated voltage: 400 V 3N~ 50 Hz (modular/three-phase configuration)
• Flake ice type suitable for seafood displays, salad bars, food preservation, and healthcare applications
• Regular six-monthly water filter cartridge replacement and evaporator descaling recommended to maintain ice quality, food safety compliance, and machine longevity

Specifications

• Width (mm): 950
• Depth (mm): 605
• Height (mm): 872
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 4 liters per hour
• Shipping Weight: 77
• Packed Width (mm): 950.0
• Packed Height (mm): 869.0
• Packed Depth (mm): 605.0
• Shipping Cubic: 0.499458000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 10.5kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Flake
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Flake
• Installation Type: Modular
• Voltage/Phase: 400V 3N~ 50Hz
