Overview

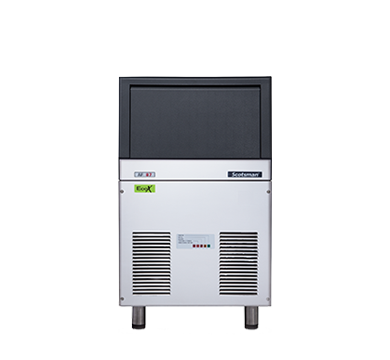

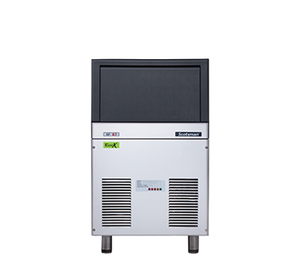

Scotsman AF 87 AS OX Self-Contained Flake Ice Maker with XSafe Sanitation – 68 kg/24 hr

The Scotsman AF 87 AS OX is a self-contained, air-cooled flake ice maker that produces up to 68 kg of flake ice every 24 hours, with a built-in 25 kg storage bin housed within the unit footprint. Designed for commercial kitchens, seafood displays, buffets, healthcare facilities, and food service venues, it delivers consistent, high-quality flake ice with a residual water content of 25% for optimal cooling performance and product presentation, all powered by environmentally responsible R290 refrigerant and built around a stainless steel auger and freezing cylinder evaporator.

Hygiene is central to this machine's design. Scotsman's XSafe Natural Sanitation System operates continuously to preserve ice purity, while Agion Technology actively inhibits microbial growth and odour development throughout the unit. The operating principle converts incoming water directly into ice, avoiding unnecessary consumption of energy, water, and processing time. Simple electromechanical controls, a clean alert indicator, front-access condenser air filtration, and a gravity drain system keep day-to-day operation and routine maintenance straightforward, supporting ongoing food safety compliance.

Key Benefits

• Produces up to 68 kg of flake ice per 24 hours to keep pace with high-demand service environments including seafood counters, salad bars, and healthcare applications.
• Integrated 25 kg storage bin ensures a constant ready supply of ice without the need for a separate storage unit, saving space and reducing equipment costs.
• XSafe Natural Sanitation System continuously works to eliminate bacteria, mould, and other microbes, supporting food safety compliance and delivering consistently hygienic ice.
• Agion Technology embedded throughout the unit actively inhibits microbial growth and prevents odour development, preserving ice purity and flavour neutrality.
• The direct water-to-ice operating principle eliminates unnecessary energy draw, reduces water consumption, and cuts processing time, lowering running costs and environmental impact.
• R290 natural refrigerant offers a low global warming potential, reducing the machine's environmental footprint while maintaining efficient cooling performance.
• Front-access condenser air filter and a clean alert indicator simplify routine servicing, reducing downtime and helping extend the operational life of the unit.
• Self-contained, air-cooled design with front ventilation allows flexible installation in tight spaces without requiring external condensing equipment.
• Flake ice gently conforms to irregular shapes, making it ideal for delicate food preservation, eye-catching product displays, and rapid chilling applications.

Key Features

• Up to 68 kg daily flake ice production capacity
• Built-in 25 kg storage bin integrated into the unit footprint
• Residual water content of 25% in produced flake ice
• XSafe Natural Sanitation System for continuous, automatic hygiene maintenance
• Agion Technology resists microbial growth and odour development to produce pure, clear ice
• R290 natural refrigerant gas with low environmental impact
• Stainless steel auger and freezing cylinder evaporator for durability and hygienic ice production
• Direct water-to-ice operating principle that avoids unnecessary energy draw, excess water use, and processing delays
• Simple, reliable electromechanical controls for straightforward daily operation
• Clean alert indicator signals when the filter requires attention
• External indicator lights to show operational status
• Easy-access front condenser air filter for quick, convenient cleaning
• Durable stainless steel exterior finish
• Gravity drain only
• Progressive water discharge (PWD) function capable of pumping excess residual water up to 15 metres
• Air-cooled condensing unit with front ventilation for flexible placement
• Self-contained installation requiring no separate condensing unit
• Supplied with removable air filter, ice scoop, water hose, and drain hose
• 10 A cordset supplied
• Electrical rating: 230–240 V, 1P+N+E, 50 Hz
• Maximum ambient operating temperature: 40°C
• Dimensions: 535 mm wide x 620 mm deep x 890 mm high

Specifications

• Width (mm): 535
• Depth (mm): 620
• Height (mm): 890
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 2.2 liters per hour
• Shipping Weight: 58
• Packed Width (mm): 535.0
• Packed Height (mm): 890.0
• Packed Depth (mm): 620.0
• Shipping Cubic: 0.295213000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 6.9kW/hr
• Capacity (Litres): 30
• Ice Production: 100
• Ice Storage: 30
• Refrigeration Type: Air Cooled
• Cooling Type: Air Cooled
• Ice Type: Cube
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Half Dice
• Installation Type: Self-Contained
• Voltage/Phase: 230V 50Hz
