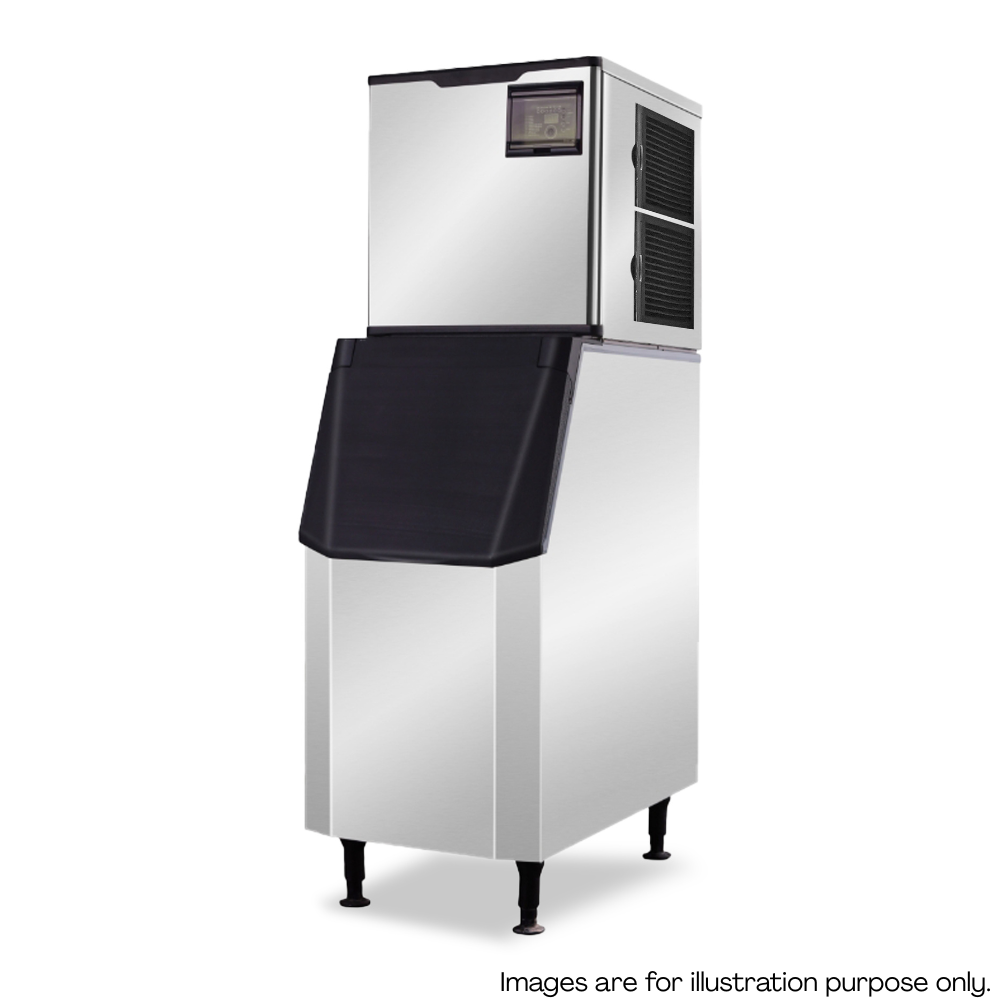

AG Equipment Free Standing Modular Ice Machine Cube Ice - 160Kg/24Hr AG-ICE159
Couldn't load pickup availability
Overview
Free Standing Modular Ice Machine Cube Ice - 160Kg/24Hr
If you never want to run out of ice again, then AG Equipment's ICE159 is the powerhouse ice machine you are searching for. It is designed for busy bars, large restaurants, hotels and event venues. This ice machine will produce 160kg of ice per 24 hours with a 140kg insulated ice storage compartment. Made from commercial-grade stainless steel, it will withstand heavy use and is easy to clean.
Appearance
Highly WHP02400PSV-F3BU5N compressor.
Stainless Steel body with plastic door construction
Ventilation grills are around the whole appliance.
Construction
140 kg insulated ice storage compartment.
User-friendly design with easy maintenance.
R290/120g Refrigerant
220V-240V/50Hz
Input power is 860W
Australian 10-Amp Plug
Adjustable feet
CE / ISO 9001 certifications
Operation
160 kg / 24 hr ice production.
Energy Consumption 13.6kWh/24hr
Installation and Maintenance
1) It is critical to install a water filtration system, which is available locally at retailers like Reece.
2) When having a plumber install the ice maker, please adhere to the water pressure specification that is displayed on a sticker on the back of the unit.
3) This unit requires to be positioned with at least 15 cm of space around it for ventilation. For more information, please refer to the user manual.
4) The filter and ventilation grills on all sides must be cleaned once per month.
NOTE:- Product images are for illustration purposes only; actual products may differ in appearance.
Errors and omissions excepted (E&OE)
SPECIFICATION
AMBIENT TEMPERATURE 38°c
CAPACITY 140 kg
ENERGY CONSUMPTION 13.6 kWh/24h
FREQUENCY 50Hz
INPUT POWER 860W
PACKAGE DIMENSION MM 640(w) x 910(d) x 1810(h)
PRODUCT DIMENSION MM 560(w) x 800(d) x 1720(h)
PRODUCT WEIGHT 93kg
REFRIGERANT R290/160g
SHIPPING WEIGHT 106kg
VOLTAGE 220V - 240V
WARRANTY 12 Month Parts & Labour
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
Key features
Specifications
Documents & downloads
No documents have been added for this product.
Delivery & install
Ice production capacity: 160kg per
Ice production capacity: 160kg per 24 hours
140kg insulated ice storage compartment
140kg insulated ice storage compartment
Cube ice format
Cube ice format
Commercial-grade stainless steel body
plastic door construction
