Overview

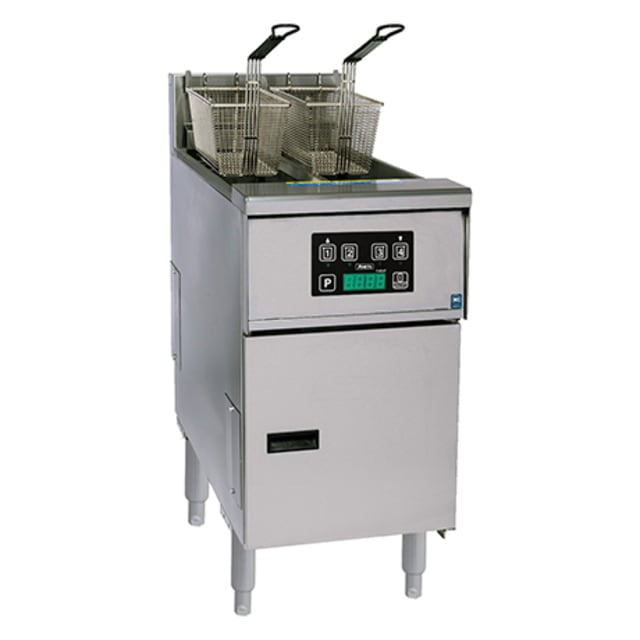

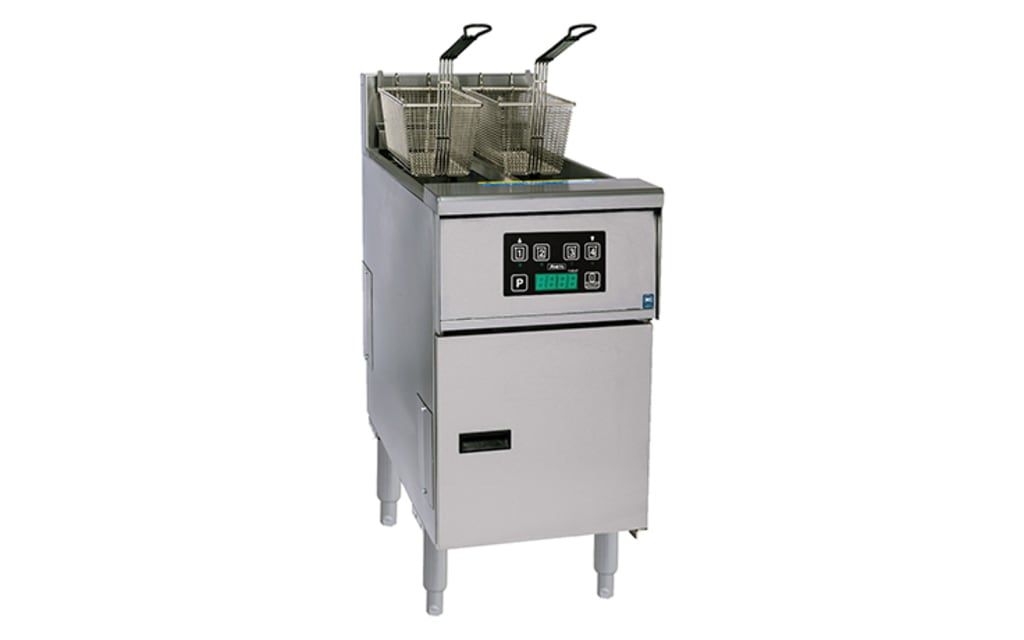

Anets AEP14XD Platinum Electric Fryer 18-23 Litre

The Anets AEP14XD is a freestanding three-phase electric fryer from the Anets Platinum series, built in the USA from stainless steel with a galvanised back panel. Designed for demanding commercial kitchens, it combines an 18-23 litre frypot with a 14 kW fixed immersed heating element to deliver rapid heat recovery and sustained high-volume output, producing approximately 40 kg of frozen 10 mm fries or 48 kg of frozen French-cut fries per hour.

Control is handled by a 4-channel digital controller featuring dedicated melt cycle and bail-out operating modes, giving operators thorough management of oil conditioning and product handling. Should the digital controller develop a fault, a backup solid-state controller is supplied and can be switched across immediately, keeping the unit operational. The stainless steel frypot is backed by a 10-year warranty, underscoring the long-term durability built into the Platinum series.

Key Benefits

• Fixed immersed heating elements deliver fast heat recovery, sustaining frying output throughout continuous peak service periods.
• Hourly throughput of up to 48 kg of frozen French-cut fries makes the AEP14XD well suited to high-volume foodservice operations.
• The 4-channel digital controller offers dedicated modes for oil melt cycles and bail-out scenarios, giving operators thorough command over frying conditions.
• A backup solid-state controller is included and instantly switchable, significantly reducing the risk of costly downtime caused by a digital control fault.
• An operating temperature range of 93°C to 190°C accommodates a wide variety of fried menu items.
• The stainless steel frypot carries a 10-year warranty, providing long-term reliability and confidence in the unit's durability.
• A comprehensive accessory kit is supplied out of the box, reducing setup time and the need for additional procurement.

Key Features

• 18-23 litre frypot capacity suitable for high-demand commercial frying
• 14 kW fixed immersed heating element for efficient and consistent heat transfer
• Three-phase power supply (3Ø + N + E) at 14 kW total power rating
• Operating temperature range of 93°C to 190°C
• 4-channel digital control standard across the Anets Platinum electric series
• Oil melt cycle and bail-out operating modes for thorough management of frying conditions and product handling
• Backup solid-state controller supplied and switchable in the event of digital control failure
• Stainless steel frypot with 10-year warranty
• Stainless steel front, door and sides; galvanised back panel
• Freestanding installation with dimensions 397 mm (W) x 876 mm (D) x 1010 mm (H)
• Unit weight 91 kg
• Manufactured in the USA
• Supplied with 2 x 165 mm wide nickel-plated wire frying baskets
• Accessory kit includes a removable stainless steel basket cradle, lid, drain pipe extension, clean-out rod and brush

Specifications

• Width (mm): 397
• Depth (mm): 876
• Height (mm): 1010
• Weight (kg): 91
• Colour: Stainless
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Burner Output (MJ/h): N/A (Electric)
• Power (kW): 14
• Power Type: Electric
• Phase: Three Phase
• Voltage/Phase: 3Ø + N + E
• Power Rating: 14 kW
• Power Supply: 3 Phase
• Capacity (Litres): 23
• Material: Stainless steel
• Country of Origin: USA
• Warranty (months): 12
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Digital Control
• Mounting Type: Freestanding
• Fuel Type: Electric
