Overview

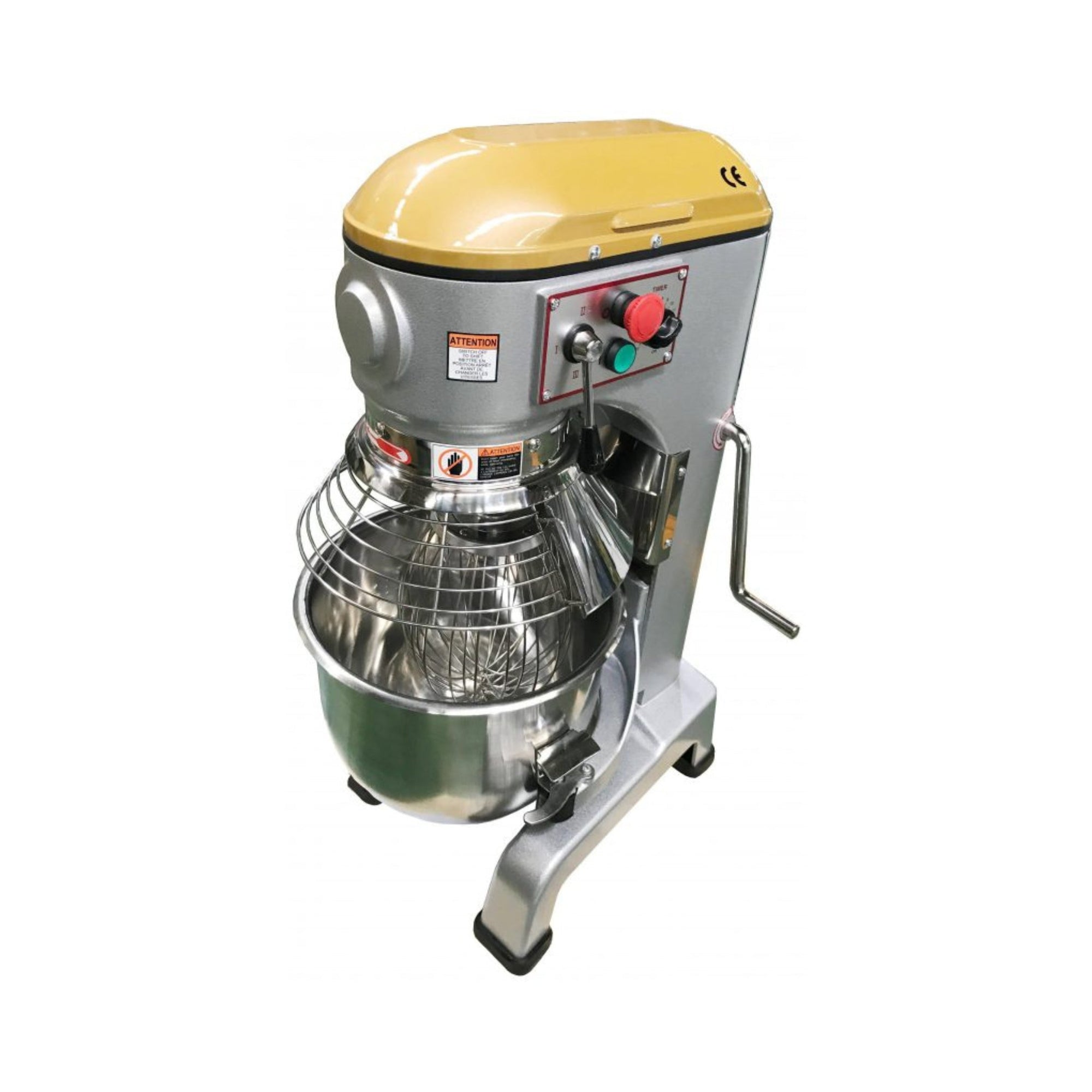

Anvil PMA1020 20 Quart Planetary Mixer

The Anvil PMA1020 is a 20-quart commercial planetary mixer designed for the daily demands of bakeries, cafes, small restaurants and busy production kitchens. Powered by a 0.5 HP (375 W) motor and built around a direct-drive, gear-driven transmission with heat-treated alloy steel gears and shafts, it delivers consistent, thorough mixing across a wide range of ingredients and batch sizes.

Three fixed speeds covering 130, 259 and 473 RPM can be shifted with ease, giving operators precise control whether aerating cream, beating cake batter or working through stiff bread dough. Three standard attachments are included straight out of the box, and a stainless steel safety guard with micro-switch protection ensures safe everyday use.

Key Benefits

• Three distinct speed settings handle everything from gentle whipping to heavy dough kneading without the need for attachments swaps mid-process.
• Direct-drive gear transmission eliminates belts and pulleys, reducing maintenance requirements and delivering torque more efficiently to the bowl.
• Heat-treated alloy steel gears and shafts resist wear under heavy commercial loads, extending the working life of the machine.
• Grease-packed ball bearings run smoothly and quietly, minimising friction and reducing the frequency of lubrication maintenance.
• A stainless steel safety guard fitted with a micro-switch prevents the mixer from operating when the guard is raised, protecting staff during busy service.
• Generous capacity handles practical batch sizes including up to 10 kg of pound cake mix, 8 L of waffle or pancake batter, 6 kg of mashed potato or 3 kg of bread dough in a single run.
• Three included attachments (whisk, dough hook and paddle) mean the mixer is ready for a broad range of preparation tasks immediately upon installation.
• Backed by Anvil's Double Gold Star two-year parts and labour warranty, providing peace of mind for commercial operators.

Key Features

• 20-quart bowl capacity suitable for medium-volume commercial production
• 0.5 HP (375 W) motor with direct-drive gear-driven transmission
• Three fixed speeds: 130 / 259 / 473 RPM with easy speed shifting
• Long-life gearbox constructed from heat-treated alloy steel gears and shafts
• Grease-packed ball bearings for smooth, low-maintenance operation
• Stainless steel safety guard with micro-switch that prevents operation when guard is open
• Includes three attachments: wire whisk, dough hook and flat paddle beater
• Volume guide: mashed potatoes 6 kg, waffle/pancake mix 8 L, pound cake mix 10 kg, bread/roll dough 3 kg (2 kg flour + 1 L water)
• 240 V power supply; 0.37 kW (375 W) power consumption
• Dimensions: 417 mm (W) x 486 mm (D) x 802 mm (H)
• Unit weight: 100 kg
• Manufactured in Taiwan
• Anvil Double Gold Star Warranty: 2 years parts and labour

Specifications

• Width (mm): 417
• Depth (mm): 486
• Height (mm): 802
• Weight (kg): 100
• Packed Width (mm): 510
• Packed Depth (mm): 600
• Packed Height (mm): 1020
• Shipping Cubic: 0.31212
• Shipping Weight: 100
• Voltage (V): 240
• Power (kW): 0.37
• Warranty (months): Double Gold Star Warranty - 2 Years Parts And Labour
• Country of Origin: Taiwan
