Overview

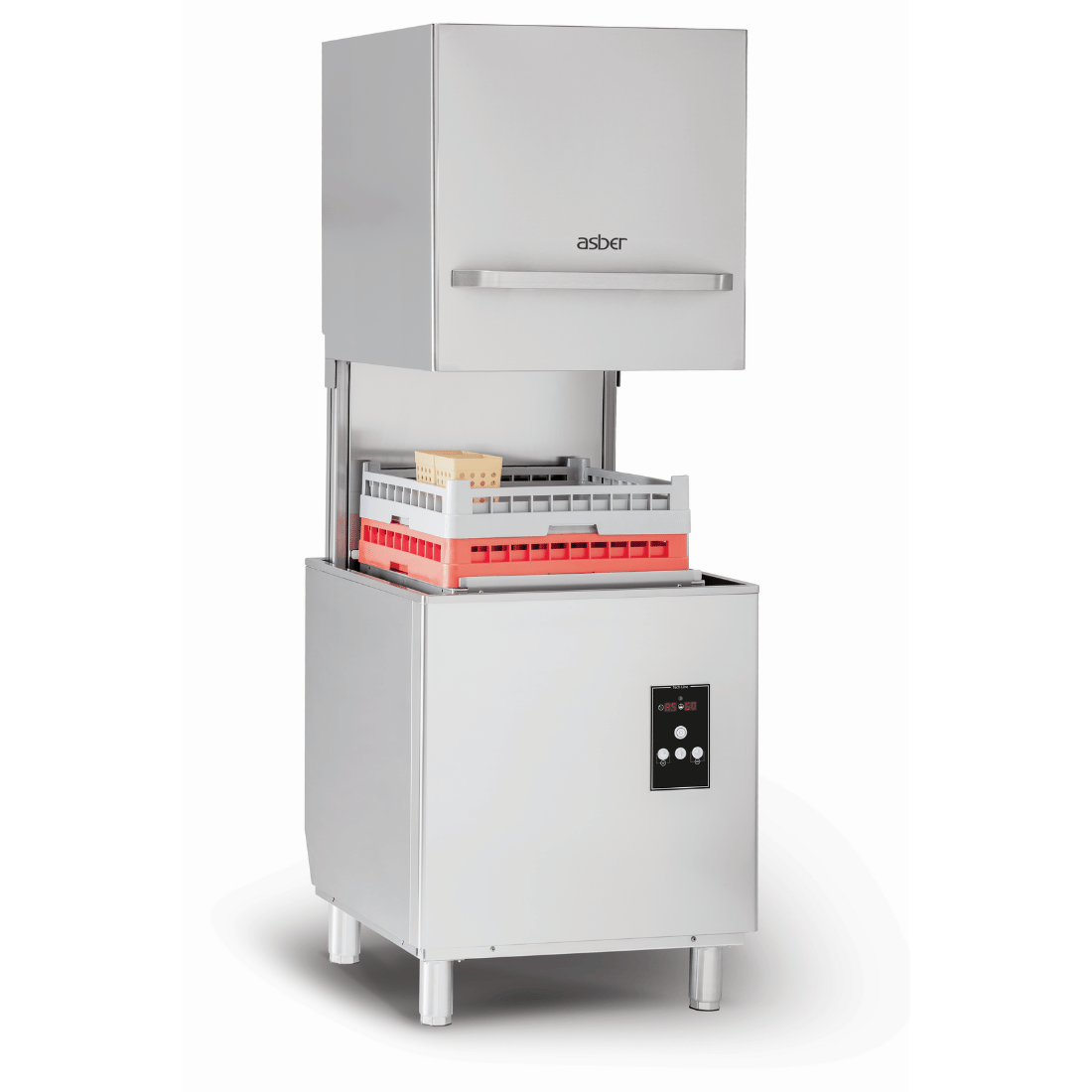

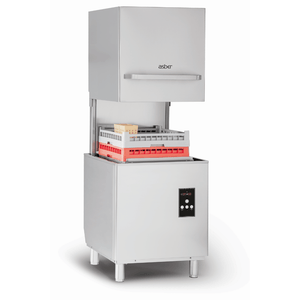

Asber GE-H500DD Tech Line Pass-Through Hood Type Dishwasher

The Asber GE-H500DD is a commercial pass-through hood type dishwasher from the Tech Line range, built to handle the relentless demands of restaurants, hotels, catering venues and institutional kitchens. Operating on a 500 x 500mm basket format, it delivers up to 40 baskets per hour across three selectable wash cycles, with a continuous cycle mode that keeps pace during peak service without requiring manual restarts between loads.

Constructed throughout in stainless steel, the GE-H500DD features a double-skin door for improved insulation, upper and lower rotating wash and rinse arms, and a dedicated boiler that maintains rinse water at 85°C for hygienic, spot-free results. A gravity drain configuration keeps the design straightforward and reliable, while Watermark certification confirms compliance with Australian plumbing standards. The unit ships with baskets and cutlery trays included, ready for immediate integration into an existing dish area.

Key Benefits

• Up to 40 baskets per hour keeps high-volume kitchens moving through service without bottlenecks
• Continuous cycle mode eliminates manual restarts between loads, sustaining throughput during peak periods
• Pass-through hood design supports a logical soiled-to-clean workflow, reducing cross-contamination risk and operator fatigue
• Separate wash tank and boiler with independent temperature controls ensure wash water stays at 60°C and rinse water at 85°C for consistent hygiene
• Low rinse consumption of 2.7L per cycle keeps water and operating costs down without compromising cleanliness
• Thermostop function prevents the cycle from completing until target temperatures are reached, protecting hygiene compliance
• Live temperature display for both the wash tank and boiler lets staff verify correct operating conditions at a glance
• Stainless steel filtering system is simple to remove and clean, reducing downtime during and between services
• Watermark certified and supplied with a two-year parts and labour warranty, providing confidence for commercial installations

Key Features

• 500 x 500mm stainless steel basket format
• Pass-through hood configuration with double-skin door for enhanced insulation
• Electronic control panel with straightforward operator interface
• Three selectable wash cycles: 90, 120 and 180 seconds
• Continuous cycle operation until manual stop
• Soft wash start function
• Upper and lower stainless steel rotating wash arms
• Upper and lower stainless steel rotating rinse arms
• Wash tank capacity 45L with 4.5kW heating element
• Boiler capacity 7L with 6.0kW heating element
• Wash temperature set at 60°C; rinse temperature set at 85°C
• Digital wash tank and boiler temperature display
• Thermostop function holds cycle completion until correct temperatures are achieved
• Safety thermostat fitted to both the wash tank and the boiler
• Built-in rinse aid dispenser
• Built-in detergent dispenser
• Anti-backflow valve fitted as standard
• Stainless steel filtering system
• Wash pump rated at 0.6kW
• Rinse water consumption 2.7L per rinse
• Gravity drain only; no drain pump fitted
• Must be connected to a hot water supply
• Power supply: 415V, 11.1kW, 3-phase plus neutral
• Door clearance: 420mm
• Overall dimensions: 675mm (W) x 675mm (D) x 825-1758mm (H)
• Accessories supplied: two 500 x 500mm dish baskets and two cutlery baskets
• Watermark certified
• Two-year parts and labour warranty

Specifications

• Width (mm): 675
• Depth (mm): 675
• Height (mm): 825
• Weight (kg): 118
• Packed Width (mm): 735
• Packed Depth (mm): 710
• Packed Height (mm): 1650
• Shipping Weight: 118
• Power Delivery: 415, 11.1kW/3~N
• Power (kW): 415
• Warranty (months): Two Year Parts and Labour Warranty
• Country of Origin: CN
