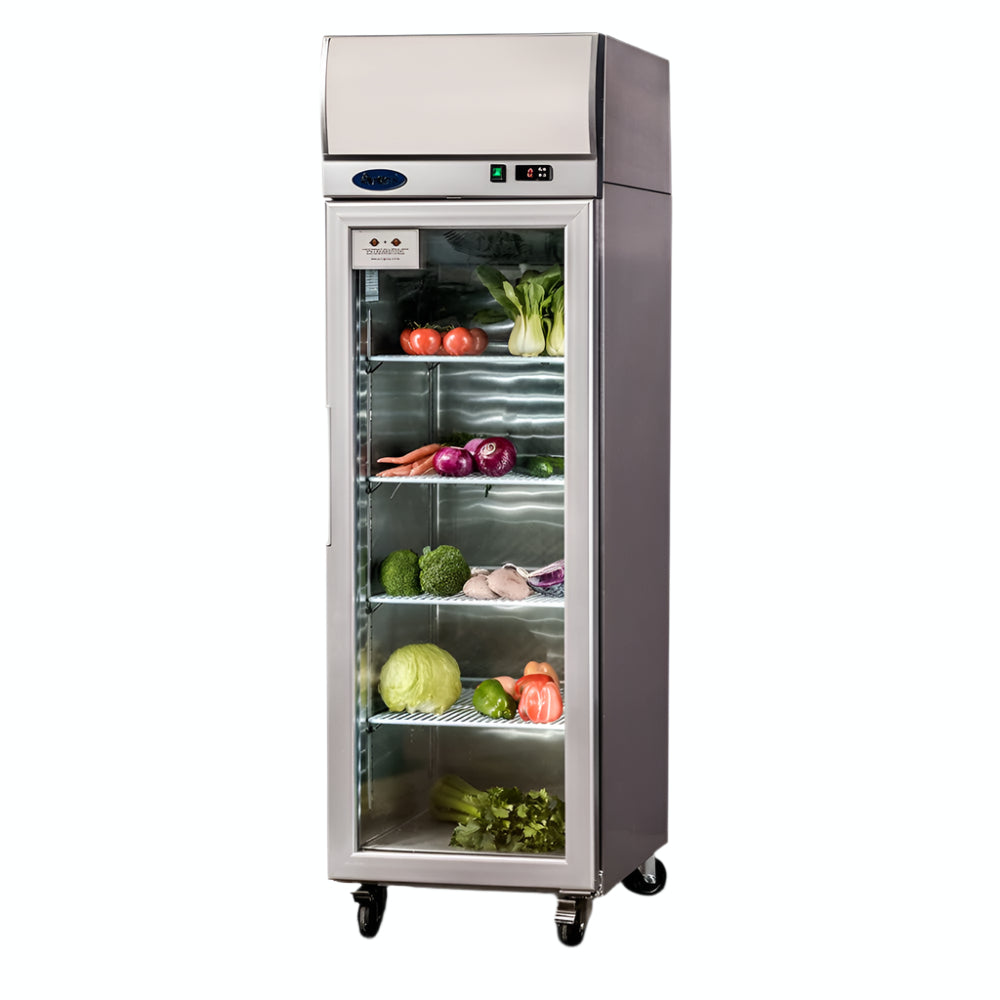

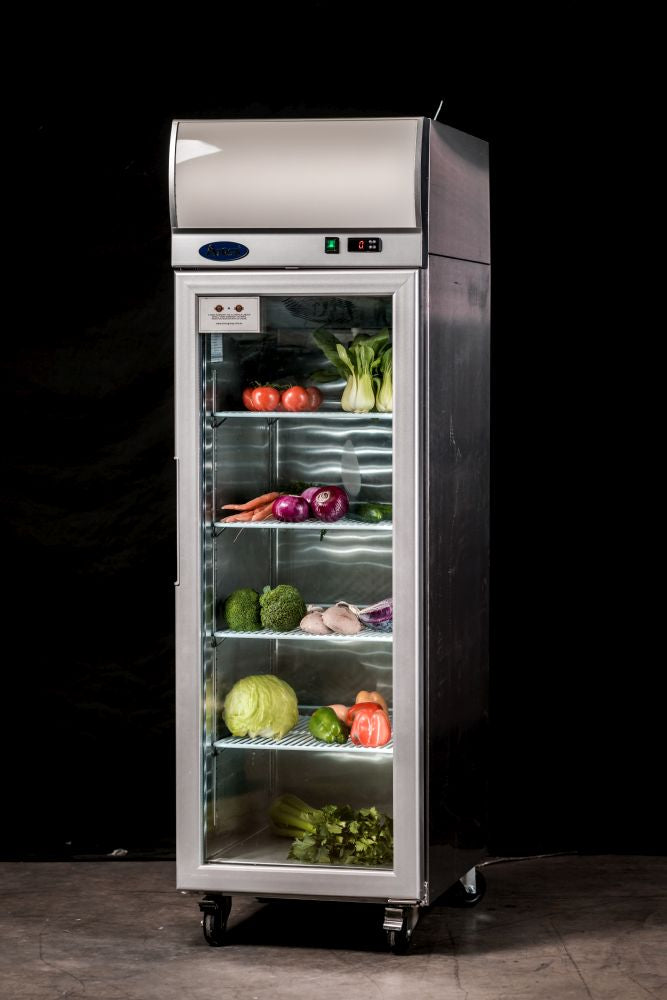

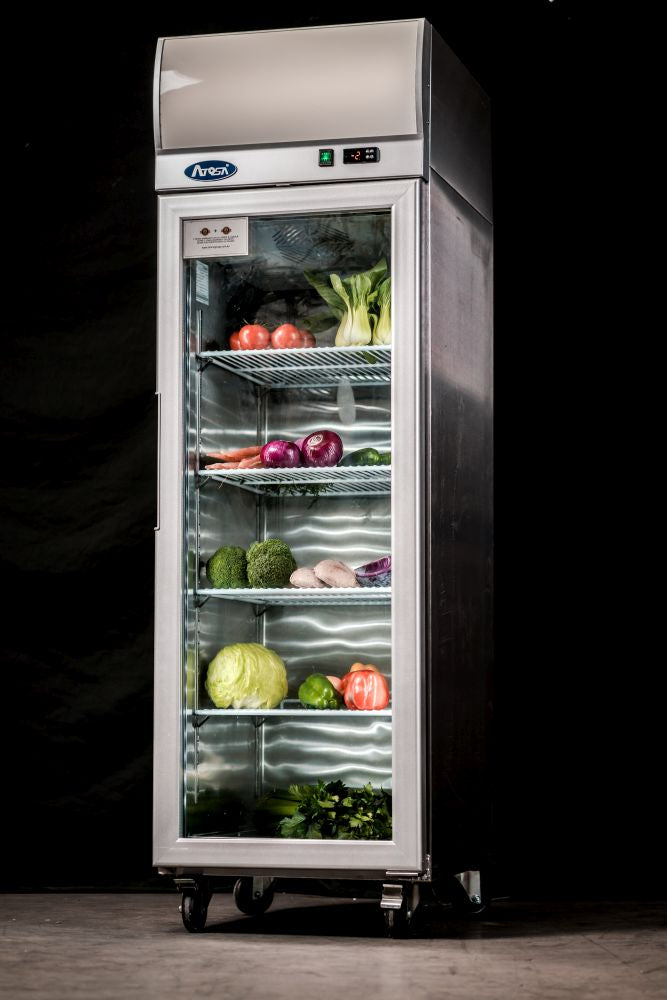

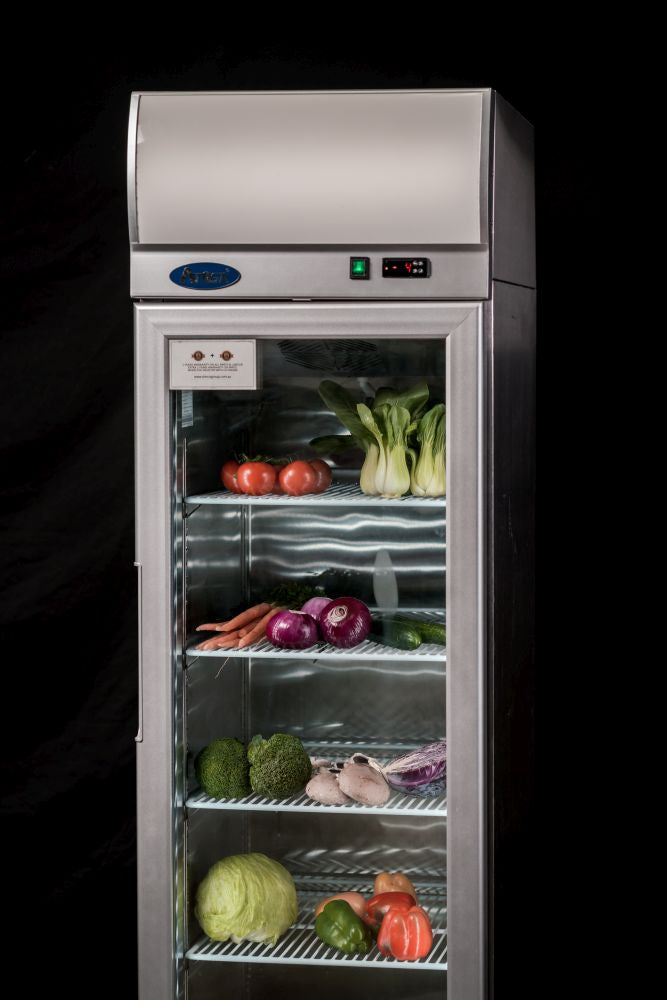

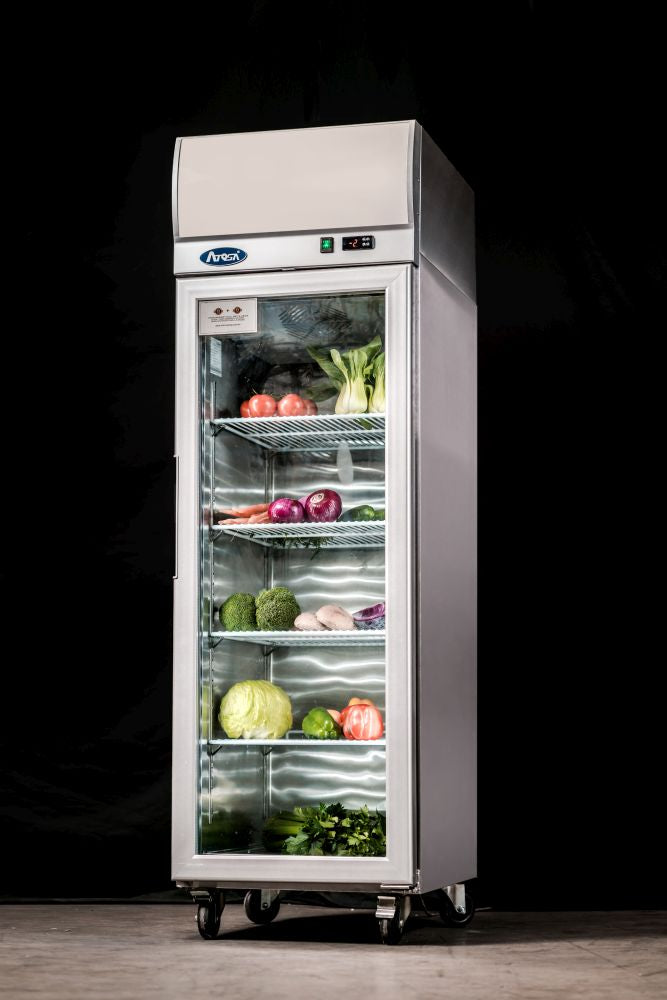

Atosa YCF9407 Top Mounted Single Door Glass Freezer

The Atosa YCF9407 is a 410-litre upright glass door freezer designed for demanding commercial environments, featuring a top-mounted Embraco compressor and fan-forced cooling to maintain consistent temperatures between -18°C and -22°C. Constructed from stainless steel inside and out, with smooth round internal corners for straightforward cleaning, it is climate class 4 rated for ambient temperatures up to 43°C, making it well suited to tropical and high-humidity kitchens.

Controlled by a Dixell digital temperature system and equipped with automatic defrost, the YCF9407 keeps operation simple and efficient throughout busy service periods. Pre-installed heavy-duty castors allow easy repositioning, while LED interior lighting and an anti-fogging heat line on the glass door ensure frozen stock remains clearly visible at all times. A standard safety door lock and magnetic door gaskets help maintain food safety standards across extended operating hours.

Key Benefits

• Consistent sub-zero temperatures between -18°C and -22°C protect frozen stock reliability even during peak service periods.
• Top-mounted compressor placement reduces heat transfer to stored product and simplifies access for servicing.
• Climate class 4 rating allows confident operation in hot, humid kitchens and venues with ambient temperatures reaching 43°C.
• Fan-forced cooling distributes cold air evenly throughout the 410-litre cabinet, minimising hot spots and temperature fluctuations.
• Automatic defrost with a Dixell digital controller reduces manual maintenance and helps staff focus on kitchen operations.
• Anti-fogging heat line on the glass door keeps contents visible without opening the door, reducing cold air loss and improving energy efficiency.
• Pre-installed castors make repositioning straightforward for cleaning or kitchen reconfiguration without additional equipment.
• Stainless steel interior with smooth, round corners speeds up cleaning and supports compliance with hygiene standards.
• Self-closing door with magnetic gaskets and a safety lock minimises accidental temperature rises and unauthorised access.

Key Features

• 410-litre gross capacity single-door upright freezer
• Top-mounted Embraco compressor
• Dixell digital temperature control system
• Fan-forced cooling for even temperature distribution
• Automatic defrost function
• Temperature range: -18°C to -22°C
• Climate class 4 rated for ambient temperatures up to 43°C
• Stainless steel exterior and interior construction
• Smooth round internal corners for easy cleaning
• Anti-fogging heat line on glass door
• LED interior lighting
• Glass door with recessed handle
• Self-closing door with stay-open function
• Magnetic door gaskets
• Standard safety door lock
• 3 adjustable wire shelves (competitor references 4 shelves; supplier spec states 3)
• 70 kg loading capacity per shelf
• Pre-installed heavy-duty castors for mobility
• R290 refrigerant
• Freestanding installation
• Minimum 100 mm clearance required at rear for air ventilation
• Dimensions: 600 mm (W) x 730 mm (D) x 1955 mm (H)
• Unit weight: 98 kg
• 2-year warranty

Specifications

• Width (mm): 600
• Depth (mm): 730
• Height (mm): 1955
• Weight (kg): 98
• Colour: Stainless
• Gas Type: R290
• Packed Width (mm): 655
• Packed Depth (mm): 790
• Packed Height (mm): 2000
• Shipping Weight: 115
• Capacity (Litres): 410
• Material: Stainless Steel
• Door Type: Glass
• No. of Doors: 1
• No. of Shelves: 3
• Shelving Type: Adjustable wire
• Country of Origin: China
• Warranty (months): 24
• Energy Rating: A
• Temperature Range: -18°C to -22°C
• Refrigeration Type: Upright freezer
• Compressor Location: Top mounted
• Defrost Type: Automatic
• Climate Class: 4 (Tropical 43°C)
• Cooling Type: Fan-assisted
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Interior Lighting: LED
• Display Type: Glass Door
