Overview

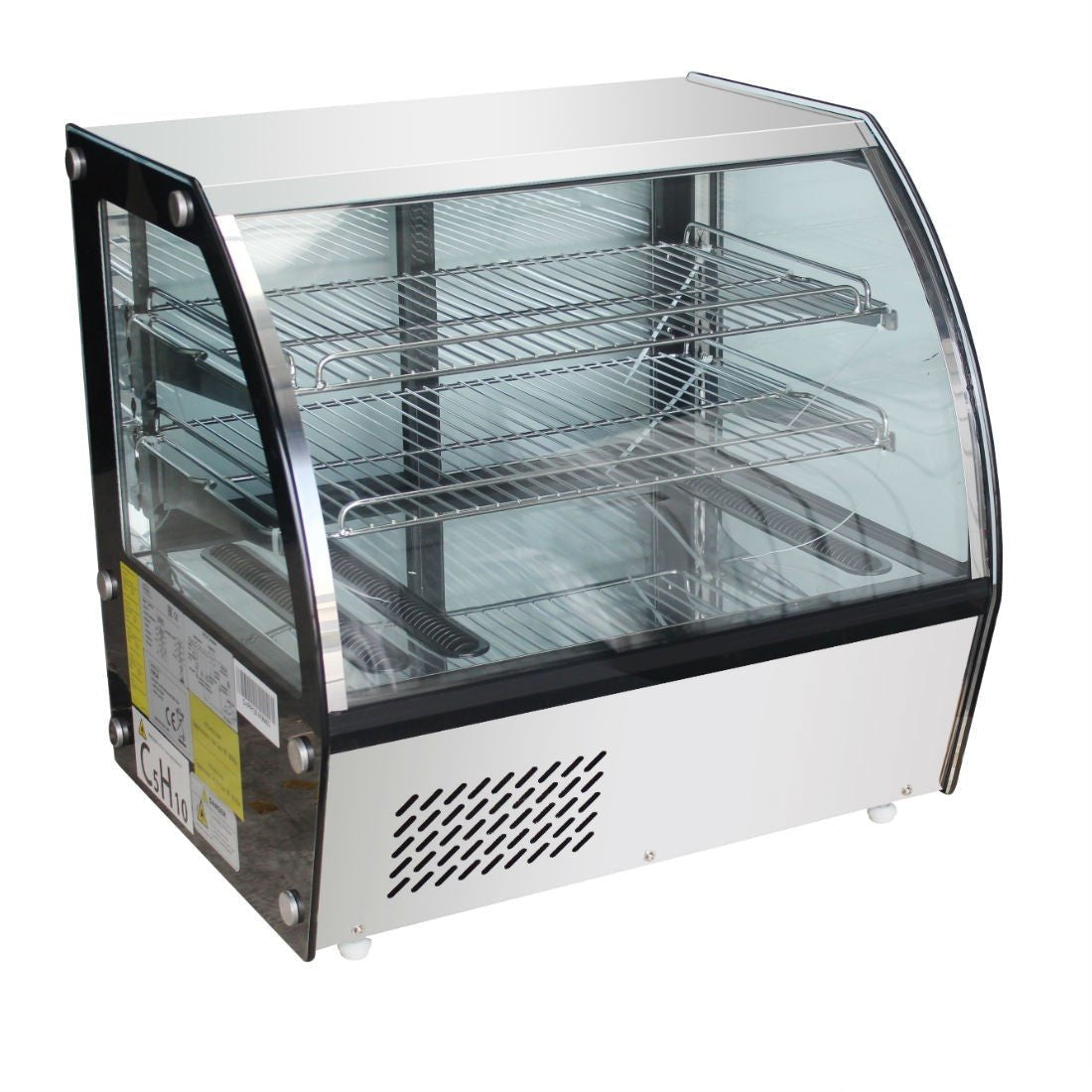

Bonvue HTR120N Chilled Counter-Top Food Display

The Bonvue HTR120N is a compact chilled counter-top food display designed for front-of-house use in cafés, bakeries, restaurants, and busy food service operations. Its curved tempered double-glazed front glass and internal LED lamp present refrigerated food attractively while maintaining a consistent temperature range of +3 to +8°C, making it well suited to displaying ready-to-serve meals, pastries, and ingredients.

Built around a stainless-steel base with a fully self-contained refrigeration unit, the HTR120N requires no well cut-out for installation, simplifying counter placement. Fan-forced airflow, auto defrost, and an electronic thermostat with a digital LED temperature display ensure accurate, hands-off temperature management throughout a full trading day, while CFC-free HC refrigerant and foam reflect an environmentally responsible construction approach.

Key Benefits

• Consistent +3 to +8°C temperature range keeps perishable food safe and fresh during extended service periods.
• Fan-forced ventilation circulates air evenly throughout the cabinet, eliminating warm spots and maintaining uniform chilling across all display levels.
• Automatic defrost reduces daily maintenance demands, allowing staff to focus on service rather than manual upkeep.
• Digital LED temperature display gives at-a-glance confirmation of cabinet conditions, supporting food safety compliance without guesswork.
• Fully self-contained refrigeration unit in the base means no counter cut-out is required, making installation straightforward on any existing bench surface.
• Curved double-glazed tempered glass front and internal LED lamp maximise product visibility and appeal, encouraging customer purchases.
• Two independently adjustable shelves allow flexible merchandising configurations to suit different product sizes and display arrangements.
• CFC-free HC refrigerant and foam insulation reduce environmental impact while meeting the demands of a commercial kitchen environment.
• Compact footprint with sliding rear doors allows easy staff access during service without interrupting front-of-house presentation.

Key Features

• Temperature range: +3 to +8°C
• Maximum ambient operating temperature: 32°C
• Net capacity: 78 L; gross capacity: 115 L
• Fan-forced refrigeration system for even air circulation throughout the cabinet
• Auto defrost function
• Electronic thermostat with digital LED temperature display for precise monitoring and easy reading
• Curved front glass panel made from tempered double-glazed glass
• Internal LED lamp for attractive product illumination
• Three levels of display within a stainless-steel and glass cabinet
• Two adjustable shelves: one 642 x 372 mm and one 642 x 408 mm
• Sliding rear access doors
• Stainless-steel base construction
• Fully self-contained refrigeration unit housed in the base — no well cut-out required
• CFC-free HC refrigerant and CFC-free foam insulation
• Internal dimensions: 663 x 498 x 384 mm
• Fixed legs for stable counter-top placement
• Power supply: 240 V / 160 W / 10 A
• 1-year parts and labour warranty

Specifications

• Width (mm): 695
• Depth (mm): 498
• Height (mm): 384
• Weight (kg): 83.5
• Packed Width (mm): 753
• Packed Depth (mm): 624
• Packed Height (mm): 710
• No. of Doors: 2
• Door Type: Sliding Doors
• Body Material: Stainless Steel
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Temperature Range: 3 to 8¬∞C
• Energy Rating: 1
• Warranty (months): 1 Year Parts and Labour
• Power Delivery: 240V; 160W / 10A
• Power (kW): 240
• Capacity (Litres): 78
• Bowl Depth (mm): 663 x 498 x 384 mm
