Overview

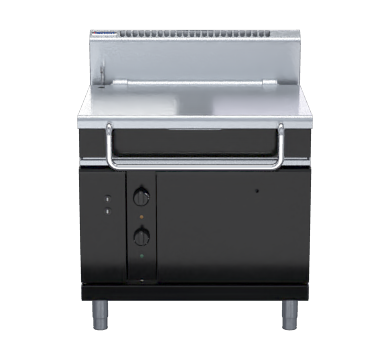

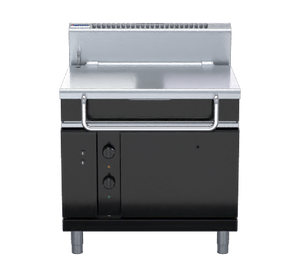

Waldorf BPB8080EE Bold 900mm Electric Tilting Bratt Pan

The Waldorf BPB8080EE is part of the Bold range and delivers an 80-litre electric tilting bratt pan built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it features a pan body constructed to 2mm thickness alongside a stainless steel base measuring 12mm thick that spreads heat uniformly across the entire cooking surface, eliminating hot spots and improving consistency across large batch cooking.

Powered by three 4kW stainless steel heating elements running on a 415V three-phase supply, the unit provides precise thermostatic temperature control with an over-temperature safety cut-out for added protection. The electric power tilting mechanism makes emptying large volumes safe and efficient, while the generously sized pouring spout, heavy-duty lid and hinge system, and stainless steel legs with adjustable feet combine to deliver a practical, easy-to-clean workhorse suited to high-volume operations.

Key Benefits

• A stainless steel base ground to 12mm in thickness distributes heat evenly wall-to-wall, enabling consistent results when braising, poaching, frying or stewing large batches without hot spots.
• Electric power tilting mechanism allows safe, controlled emptying of up to 80 litres without manual strain, reducing injury risk during service.
• Thermostatic control with over-temperature safety cut-out protects food quality and equipment, giving kitchen staff confidence during extended cook cycles.
• Three 4kW stainless steel heating elements on 415V three-phase power deliver rapid heat recovery to maintain temperature under heavy load.
• A generously proportioned pouring spout speeds up transferring contents to pots, bains-marie or service containers, keeping the line moving efficiently.
• Galvanised steel chassis and corrosion-resistant stainless steel legs fitted with adjustable feet provide a stable base on uneven commercial kitchen floors.
• Full stainless steel pan interior and smooth surfaces simplify cleaning and reduce downtime between service periods.
• Available in black as default with additional colour options to suit kitchen fit-out requirements, including integration with other Waldorf Bold equipment.

Key Features

• 80-litre capacity bratt pan, 900mm wide
• Three 4kW stainless steel heating elements
• 415V three-phase power supply
• Thermostatic temperature control with variable high-low settings
• Over-temperature safety cut-out
• Electric power tilting mechanism for safe, effortless emptying
• Fold-away handle on tilting mechanism
• Heavy-duty lid and hinge system
• Full stainless steel pan construction with a 2mm-thick pan body
• Stainless steel pan base at 12mm thickness for uniform heat distribution
• Generously sized pouring spout for efficient transfer of contents
• Galvanised steel chassis
• Stainless steel legs with adjustable feet for levelling on uneven floors
• Large, heat-resistant reinforced control knobs for ease of use
• Stainless steel splashback included
• Designed for easy cleaning, installation and servicing
• Part of the Waldorf Bold range, manufactured in New Zealand
• Default colour black; additional colour options available
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
