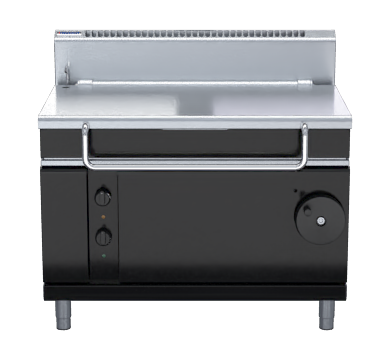

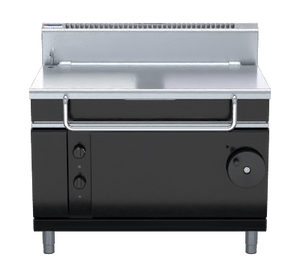

Waldorf Bold BPB8120E 1200mm Electric Tilting Bratt Pan

The BPB8120E from the Waldorf Bold range is a 1200mm electric tilting bratt pan built for demanding, high-volume commercial kitchen environments. The unit houses a 120-litre full stainless steel pan with a 2mm pan body and a 12mm thick even-heat base, powered by three 5.66kW stainless steel heating elements operating on a 415V three-phase supply. Temperature is managed through a single large heat-resistant reinforced control knob spanning 50°C to 320°C, with a dedicated over-temperature safety cut-out and indicator lights for both power and heating status providing clear operational feedback at all times.

Constructed on a heavy-duty galvanised steel chassis with 1.2mm 304 stainless steel splashback and side panels, 0.9mm 304 stainless steel front panels, and 63mm diameter stainless steel legs fitted with height-adjustable feet, the BPB8120E is straightforward to install, clean and service. The manually operated tilting mechanism incorporates a fold-away handwheel handle and a large-capacity pouring spout for safe, efficient emptying. The lid is counter-balanced by a heavy-duty hinge assembly and is fabricated from 1.5mm 304 stainless steel, allowing it to double as additional bench-top workspace when the pan is in use. The unit ships in a default black finish with custom colour options available, and integrates directly into the fully modular Waldorf Bold range. Made in New Zealand.

Key Benefits

• A 120-litre capacity allows large-batch cooking of braises, stocks, sauces, stews and shallow-frying in a single vessel, reducing reliance on multiple pots or pans during service.
• The 12mm thick stainless steel pan base promotes uniform heat distribution across the entire cooking surface, minimising hot spots and improving consistency across large batches.
• A thermostatic range of 50°C through to 320°C gives chefs precise temperature control for delicate sauces right through to high-heat searing, all managed from one large, heat-resistant control knob.
• The manually operated tilting mechanism with fold-away handle and generous-capacity pouring spout enables safe, controlled emptying without heavy lifting, reducing the risk of burns or spillage.
• The lid is supported by a heavy-duty counter-balanced hinge assembly, making it effortless to open and close during busy service; its 1.5mm 304 stainless steel construction also means it can serve as extra bench-top workspace when the pan is in operation.
• An over-temperature safety cut-out together with dedicated indicator lights for power and heating status protects both equipment and kitchen staff while providing clear at-a-glance feedback.
• Fully modular Waldorf Bold construction simplifies bench run configurations and allows flexible kitchen layouts, while the adjustable feet accommodate uneven floors at installation.
• The smooth 304 stainless steel pan interior and straightforward chassis design make daily cleaning and periodic servicing quick and efficient, keeping kitchen downtime to a minimum.

Key Features

• 120-litre full stainless steel pan with 2mm pan body thickness
• 12mm thick stainless steel pan base engineered for uniform heat distribution across the entire cooking surface
• Three 5.66kW stainless steel heating elements operating on a 415V three-phase power supply
• Electric thermostatic temperature control across a range of 50°C to 320°C, with an independent over-temperature safety cut-out
• Manually operated pan tilting mechanism with fold-away handwheel handle
• Optional electrically powered pan tilting mechanism with pan up/down switches
• Large-capacity pouring spout for controlled, safe emptying
• Counter-balanced heavy-duty lid hinge assembly; lid fabricated from 1.5mm 304 stainless steel and suitable for use as bench-top workspace when the pan is in use
• Full-width stainless steel lid handle
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter stainless steel legs with independently adjustable feet for levelling on uneven floors
• Large, heat-resistant reinforced control knobs with easy-view settings
• Single control knob managing both power and heating level
• Indicator lights for power and heating status
• Water valve with a 90-degree rotary control for ease of use
• Fully modular Waldorf Bold construction for flexible kitchen configurations
• Default colour is black; additional colour options available including custom finishes
• Designed for easy cleaning, installation and servicing
• Made in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
