Overview

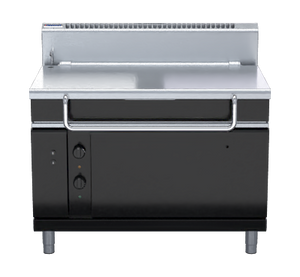

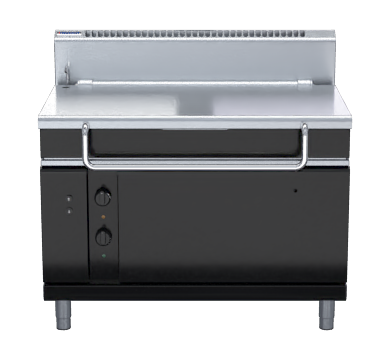

Waldorf BPB8120EE Bold 1200mm Electric Tilting Bratt Pan

The Waldorf BPB8120EE is a heavy-duty 1200mm electric tilting bratt pan from the Waldorf Bold range, purpose-built for high-volume commercial kitchens. The 120-litre full stainless steel pan is paired with a 12mm thick even-heat base and three 5.66kW stainless steel heating elements operating on 415V three-phase power, delivering consistent, controlled cooking across a wide thermostatic range of 50 to 320°C.

Built around a heavy-duty galvanised steel chassis with 304 stainless steel panels throughout, this bratt pan is engineered for durability, hygiene, and ease of use. The electrically powered tilting mechanism, a robust lid hinge that holds at any position, and a large-capacity pouring spout make it well suited to fast-paced service environments, while the fully modular Waldorf Bold design supports straightforward installation, cleaning, and servicing. Available in black as standard with other colour options on request, and manufactured in New Zealand.

Key Benefits

• 120-litre capacity handles large batch cooking tasks such as braising, stewing, frying, poaching, and sauce reduction in a single vessel, reducing the need for multiple pots and pans.
• The 12mm thick pan base spreads thermal energy uniformly across the entire cooking surface, preventing localised overheating and producing consistent results across the full load.
• Electrically powered pan tilting allows safe, controlled emptying of large, heavy loads with minimal manual effort, reducing strain on kitchen staff and improving operational speed.
• Thermostatic control across 50 to 320°C with an over-temperature safety cut-out gives precise heat management and protects both the product and the equipment.
• A counterbalanced heavy-duty lid hinge holds the cover securely at any open angle, and the 1.5mm 304 stainless steel lid provides a usable bench-top workspace when raised.
• The large-capacity pouring spout enables fast, controlled draining or transferring of liquids without the need for additional equipment.
• Adjustable heavy-duty stainless steel legs allow levelling on uneven floors, ensuring stable, safe operation even on imperfect kitchen surfaces.
• Fully modular Bold range construction simplifies installation alongside other Waldorf Bold equipment, and the straightforward panel layout makes routine cleaning and servicing fast.
• Clearly marked control settings on large heat-resistant reinforced knobs, a single knob governing both power and heat, and dedicated status indicator lights for power and heating reduce operator errors during busy service periods.

Key Features

• 1200mm wide electric tilting bratt pan with 120-litre capacity
• Three 5.66kW stainless steel heating elements; 415V three-phase power supply
• 50 to 320°C electric thermostatic burner control with over-temperature safety cut-out
• Electrically powered pan tilting mechanism with pan-up and pan-down switches
• Optional handwheel-operated manual pan lift with a fold-flat handle
• Full stainless steel pan construction with 2.0mm pan body
• 12mm thick stainless steel pan base engineered for uniform heat distribution across the entire cooking surface
• Large-capacity pouring spout for controlled draining and transfer
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Robust lid hinge with counterbalanced tension, allowing the lid to rest securely at any angle; lid constructed from 1.5mm 304 stainless steel and suitable for use as an additional work surface when open
• Full-width stainless steel lid handle
• 63mm diameter heavy-duty stainless steel legs fitted with height-adjustable feet for levelling on uneven surfaces
• Large heat-resistant reinforced control knobs with easy-view settings
• Single control knob for both power and heating control
• Dedicated indicator lights showing power status and active heating status
• Water valve with a 90-degree rotational control for straightforward operation
• Splashback included; no undershelf
• Waldorf Bold range; fully modular configuration
• Default colour black with additional colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
