Overview

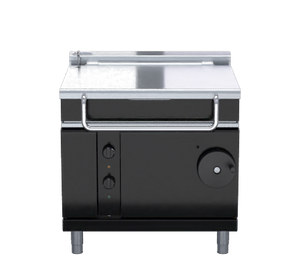

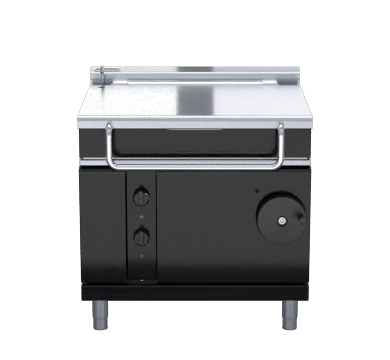

Waldorf Bold BPLB8080E 900mm Electric Tilting Bratt Pan – Low Back Configuration

The Waldorf Bold BPLB8080E is a 900mm wide electric tilting bratt pan designed specifically for high-volume commercial kitchens, forming part of the trusted Waldorf Bold range manufactured in New Zealand. The unit houses an 80-litre full stainless steel pan built on a base measuring 12mm in thickness that distributes heat evenly across the entire cooking surface, powered by three 4kW stainless steel heating elements and governed by thermostatic control spanning 50 to 320°C. This combination delivers precise, consistent temperatures suited to braising, frying, poaching, stewing and a broad range of other cooking techniques.

Built around a heavy-duty galvanised steel chassis with 304 stainless steel splashback, side and front panels, the BPLB8080E is engineered to handle the rigours of demanding kitchen environments. The low back format allows the unit to sit flush within modular suite arrangements, while a manually operated tilting mechanism with a fold-away handwheel, large capacity pouring spout, and spring-balanced heavy-duty lid keep daily operation and cleaning straightforward. The default finish is black, with additional colour options available to suit different kitchen aesthetics.

Key Benefits

• A pan base 12mm thick, crafted from stainless steel and engineered for uniform heat distribution, eliminates hot spots and ensures consistent cooking results across large batch preparation.
• The 80-litre pan capacity accommodates bulk cooking demands, reducing the number of batches required during peak service periods.
• Thermostatic control across a 50 to 320°C range provides precise temperature management for a wide variety of cooking techniques within a single piece of equipment.
• The fold-away handwheel tilting mechanism enables controlled, safe pouring via the large capacity spout, minimising spillage and reducing handling risks for kitchen staff.
• An over-temperature safety cut-out protects both the equipment and food product, adding an important layer of operational safety.
• The 1.5mm 304 stainless steel lid functions as a usable bench-top workspace when raised, effectively extending preparation surface area in tight kitchen layouts.
• A fully modular design allows installation as part of a suite or as a standalone unit, offering genuine flexibility in kitchen configuration.
• Stainless steel legs measuring 63mm in diameter, fitted with adjustable feet, simplify levelling on uneven floors and support the unit's substantial weight under full-load conditions.
• Easy-clean construction and straightforward service access reduce downtime and lower the total cost of ownership across the unit's working life.

Key Features

• 900mm wide electric tilting bratt pan in a low back format, purpose-built for integration into modular cooking suite configurations, with an 80-litre pan capacity
• Three 4kW stainless steel heating elements providing consistent, even heat distribution
• 50 to 320°C electric thermostatic burner control for versatile cooking applications
• Over-temperature safety cut-out for added operational protection
• Single control knob for both power and heating level, with easy-view settings and indicator lights for power and heating status
• Manually operated pan tilting mechanism with fold-away handwheel
• Optional electrically powered pan tilting mechanism available
• Full stainless steel pan with 2mm pan body construction
• Pan base constructed from stainless steel at 12mm thickness, engineered to maintain uniform temperature across the entire cooking surface
• Large capacity pouring spout for safe and controlled emptying
• Heavy-duty spring-balanced lid and hinge system for smooth, controlled lid operation
• 1.5mm 304 stainless steel lid suitable for use as a bench-top workspace when open
• Full-width stainless steel lid handle
• Water valve featuring a single 90-degree rotation for straightforward operation
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter stainless steel legs rated for heavy-duty use, each fitted with individually adjustable feet for precise levelling
• Large, heat-resistant reinforced control knobs
• Fully modular design compatible with Waldorf Bold suite configurations
• Default colour is black; additional colour options available
• Country of origin: New Zealand
• 415V three-phase power supply
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom Capacity
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
