Overview

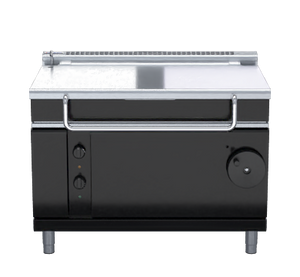

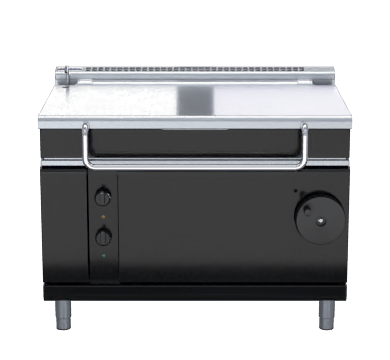

Waldorf BPLB8120E Bold 1200mm Electric Tilting Bratt Pan Low Back Version

The Waldorf BPLB8120E is a 1200mm electric tilting bratt pan from the Waldorf Bold range, purpose-built for high-volume commercial kitchens that demand consistent, reliable performance. With a 120-litre full stainless steel pan, three 5.66kW stainless steel heating elements, and a 12mm thick even-heat pan base, this unit delivers precise, uniform cooking across braising, frying, poaching, stewing and more — all within a single versatile piece of equipment.

Constructed around a heavy-duty galvanised steel chassis with 304 stainless steel panels throughout, the BPLB8120E is engineered for durability and ease of daily use. The manually operated tilting mechanism with fold-away handle makes emptying large volumes safe and efficient, while the spring-balanced heavy-duty lid doubles as a benchtop workspace. Fully modular and available in custom colours beyond the default black, this bratt pan integrates seamlessly into any Waldorf Bold suite configuration.

Key Benefits

• 120-litre capacity handles large batch cooking in a single vessel, reducing the need for multiple pots and pans and speeding up service.
• The 12mm thick stainless steel pan base ensures even heat distribution across the entire cooking surface, minimising hot spots and improving cooking consistency.
• Thermostatic control across a 50–320°C range gives chefs precise temperature management for delicate and high-heat cooking techniques alike.
• Manually operated tilting mechanism with a fold-away handwheel allows safe, controlled pouring of heavy loads, reducing spill risk and manual handling strain.
• The heavy-duty spring-balanced lid hinge system keeps the lid stable at any angle, and the 1.5mm 304 stainless steel lid surface doubles as additional benchtop workspace when open.
• Over-temperature safety cut-out provides an automatic protection layer, safeguarding both food quality and equipment longevity.
• Fully modular design allows the unit to be installed as part of a coordinated Waldorf Bold suite, offering flexible kitchen layout options.
• Easy-clean construction and straightforward service access reduce downtime and keep ongoing maintenance costs low in busy commercial environments.

Key Features

• 1200mm wide electric tilting bratt pan, low back version
• 120-litre full stainless steel pan capacity
• Three 5.66kW stainless steel heating elements (total 17kW)
• 12mm thick stainless steel even-heat pan base for uniform cooking
• 2.0mm stainless steel pan body construction
• 50–320°C electric thermostatic burner control
• Over-temperature safety cut-out
• Single control knob for combined power and heat control
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Manually operated pan tilting mechanism with fold-away handwheel handle
• Optional electrically powered pan tilting mechanism available
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 1.5mm 304 stainless steel lid suitable for use as a benchtop workspace
• Full-width stainless steel lid handle
• Heavy-duty spring-balanced lid hinge system
• Large-capacity pouring spout for controlled emptying
• Quarter-turn water valve control for ease of use
• 63mm diameter heavy-duty stainless steel legs with adjustable feet
• 415V three-phase power supply
• Fully modular construction for suite integration
• Default colour black with other colour options available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
