Overview

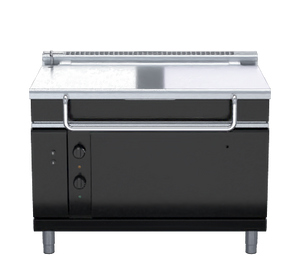

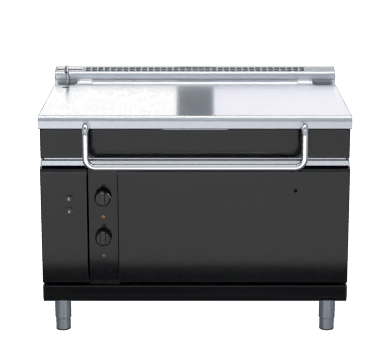

Waldorf Bold BPLB8120EE 1200mm Wide Electric Tilting Bratt Pan – Low Back Configuration

The Waldorf Bold BPLB8120EE is a wide-format electric tilting bratt pan built for high-volume commercial kitchens that demand consistent, controlled cooking across large batches. Featuring a 120-litre full stainless steel pan, three 5.66kW stainless steel heating elements arranged for uniform performance, and a 12mm thick even-heat base plate, this unit delivers precise, repeatable results across braising, stewing, frying, poaching and more. The electric power tilting mechanism and large-capacity pouring spout simplify emptying during peak service, while thermostatic control across a 50–320°C range ensures accurate heat management throughout.

Built on a heavy-duty galvanised steel chassis with 304 stainless steel splashback, side and front panels, the BPLB8120EE is engineered for the demands of continuous commercial use. The low back configuration is suited to kitchens where overhead clearance or ventilation layout calls for a reduced rear profile. Fully modular, this unit integrates seamlessly with other equipment in the Waldorf Bold suite, ships in black as the standard colour with further colour options available, and is manufactured in New Zealand with a 24-month warranty.

Key Benefits

• Electric power tilting mechanism enables controlled, effortless pan emptying during busy service periods, reducing operator strain and the risk of spillage.
• A 120-litre pan capacity allows large batch cooking within a single vessel, improving kitchen throughput and reducing the number of sequential cook cycles required.
• The 12mm thick pan base promotes uniform heat distribution across the full cooking surface, eliminating hot spots and delivering consistent outcomes for braising, frying and stewing applications.
• Thermostatic control spanning 50–320°C, combined with an over-temperature safety cut-out, provides precise heat management and protects both the pan and the food product from overheating.
• A robustly engineered spring-balanced lid hinge with a full-width handle supports one-handed lid operation, and the 1.5mm stainless steel lid provides a usable bench-top surface when held open.
• Adjustable stainless steel legs allow the unit to be levelled on uneven kitchen floors, ensuring safe and stable operation at all times.
• The fully modular design allows integration with other Waldorf Bold suite equipment, supporting flexible kitchen configurations and future expansion.
• The low back version accommodates installations with restricted rear height, offering greater flexibility when planning ventilation systems and kitchen layouts.
• Accessible components and easy-clean construction reduce downtime between services and keep routine maintenance straightforward.

Key Features

• 1200mm wide electric tilting bratt pan in a low back configuration
• 120-litre full stainless steel pan capacity
• Three 5.66kW stainless steel heating elements delivering a combined output of 16.98kW
• Pan base constructed from 12mm thick stainless steel for consistent, even heat distribution across the entire cooking surface
• 2mm stainless steel pan body construction
• Electric power tilting mechanism with dedicated pan-up and pan-down switches
• Alternative manual pan lift handwheel with a fold-flat handle also available
• Spring-balanced lid hinge engineered for heavy-duty commercial use
• Lid fabricated from 1.5mm 304 stainless steel, doubling as a bench-top workspace when in the open position
• Full-width stainless steel lid handle
• Large-capacity pouring spout for controlled, precise emptying
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter stainless steel legs engineered for heavy-duty use, with height-adjustable feet
• Large, heat-resistant reinforced control knobs with clearly visible settings
• Single control managing both power and heating functions
• Indicator lights displaying power and heating status
• Thermostatic control with a temperature range of 50–320°C
• Over-temperature safety cut-out for added protection
• Water valve operated via a quarter-turn action for straightforward control
• 415V 3-phase power supply
• Part of the Waldorf Bold modular suite
• Default colour is black; additional colour options are available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
