Overview

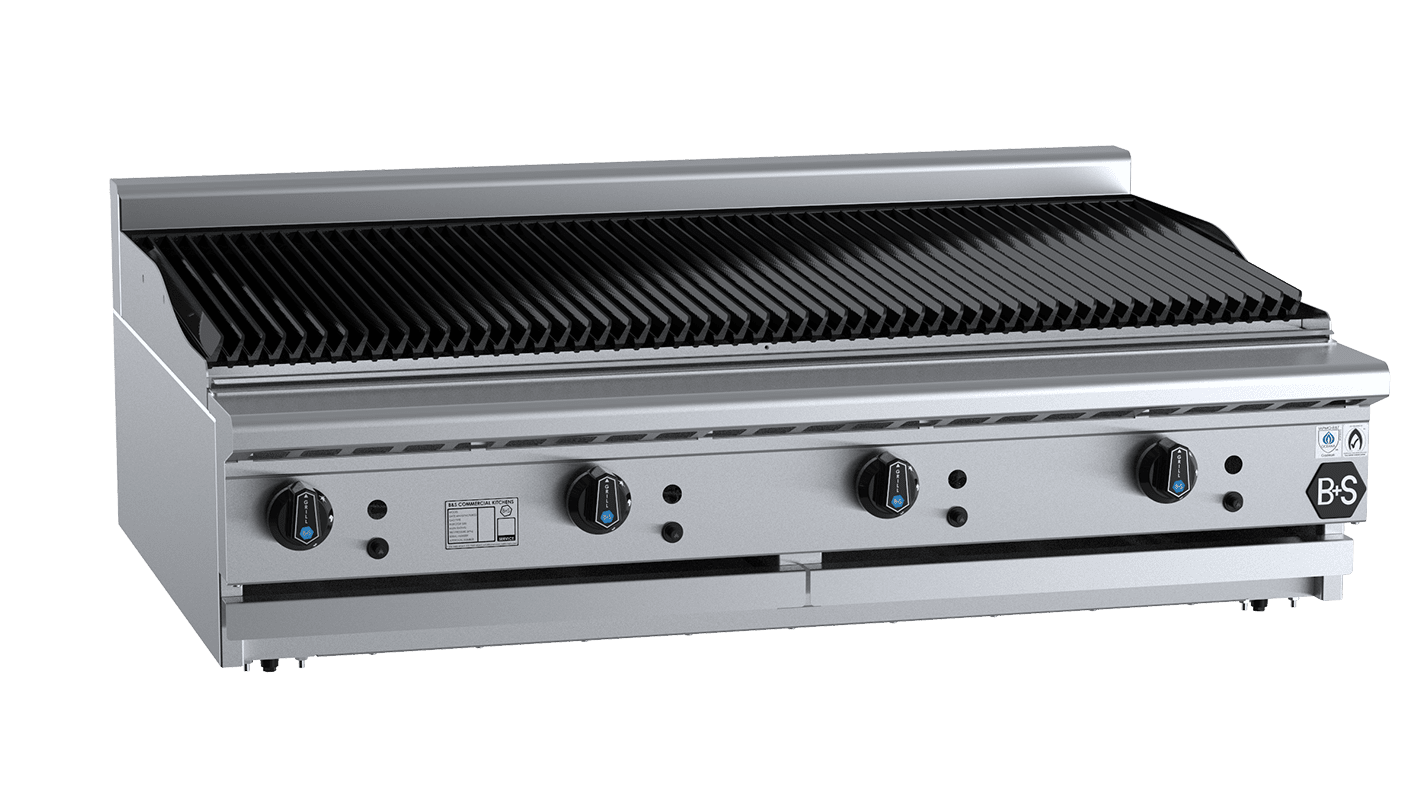

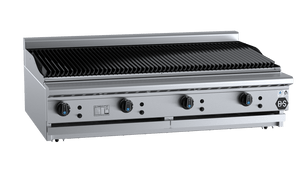

B&S Black Char Broiler 1200mm Bench Mounted CBR-12BM

The CBR-12BM is a high-output commercial gas chargrill from B&S, engineered to meet the rigorous demands of restaurant, café, hotel and catering kitchens. This 1200mm wide bench-mounted unit is manufactured in Italy from AISI 304 grade stainless steel with vitreous enamel components, and delivers up to 136 MJ/h on natural gas or 120 MJ/h on LPG across four burners, making it well suited to high-volume service environments.

Heavy-duty cast iron J-grates and radiant hoods distribute heat evenly across the cooking surface, producing authentic chargrilled results consistently. Reversible grates allow the surface to be set flat or inclined depending on the application, while fat drainage channels direct grease to a front-mounted spillage tray for straightforward cleaning. Each burner is individually equipped with its own flame failure safety cut-off, spark ignition via piezo lighter, and a multi-setting gas valve for precise flame regulation.

Key Benefits

• Cast iron J-grates and radiant hoods deliver even, intense searing heat for authentic chargrilled flavour on every service.
• Reversible grates provide flexibility, allowing the cooking surface to be positioned flat or inclined to suit different products and cooking styles.
• Up to 136 MJ/h on natural gas across four burners ensures the unit can sustain high output during the busiest service periods.
• Dual fuel compatibility with natural gas or LPG means the unit can be installed wherever site gas supply dictates.
• Individual flame failure cut-off devices on every burner add an essential safety layer, automatically shutting off gas supply if a flame is extinguished.
• Multi-setting gas valves on each burner give chefs greater control over cooking temperatures across different zones of the grill.
• Front access to all components simplifies routine servicing, adjustment and inspection without needing to move the unit.
• Easy-clean fat spillage trays at the front of the unit reduce downtime during and after service.
• A 24-month parts and labour warranty, combined with Italian manufacture and AISI 304 stainless steel construction, supports long-term reliability in commercial use.

Key Features

• AISI 304 grade stainless steel construction throughout, including a heavy-duty stainless steel frame
• Vitreous enamel components complement the stainless steel build for added durability and ease of cleaning
• 1200 x 533mm cast iron J-grate cooking surface
• Four gas burners, each rated at approximately 34 MJ per 300mm section
• Heavy-duty cast iron radiant hoods above each burner for even heat distribution across the grates
• Reversible grates allow flat or inclined cooking surface configuration
• Fat drainage channels on grates direct grease to the front-mounted spillage tray
• Easy-clean fat spillage trays positioned at the front of the unit
• Dedicated flame failure safety cut-off device fitted to every burner as standard
• Piezo ignition on each burner for quick, reliable lighting
• Multi-setting gas valve per burner for precise and greater regulation of flame settings
• Front access to all internal components for straightforward servicing and adjustment
• Gas regulator included with the unit
• 3/4" BSP gas connection
• Compatible with natural gas and LPG
• Bench-mounted configuration
• Made in Italy
• 24-month warranty covering parts and labour
• Must be installed by an authorised installer

Specifications

• Width (mm): 1200
• Depth (mm): 840
• Height (mm): 425
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 136
• Gas Input - LPG (MJ/h): 120
• Burner Output (MJ/h): 104
• Shipping Weight: 152
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 1250.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 1200 x 533
• Power Rating: 104 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
