Overview

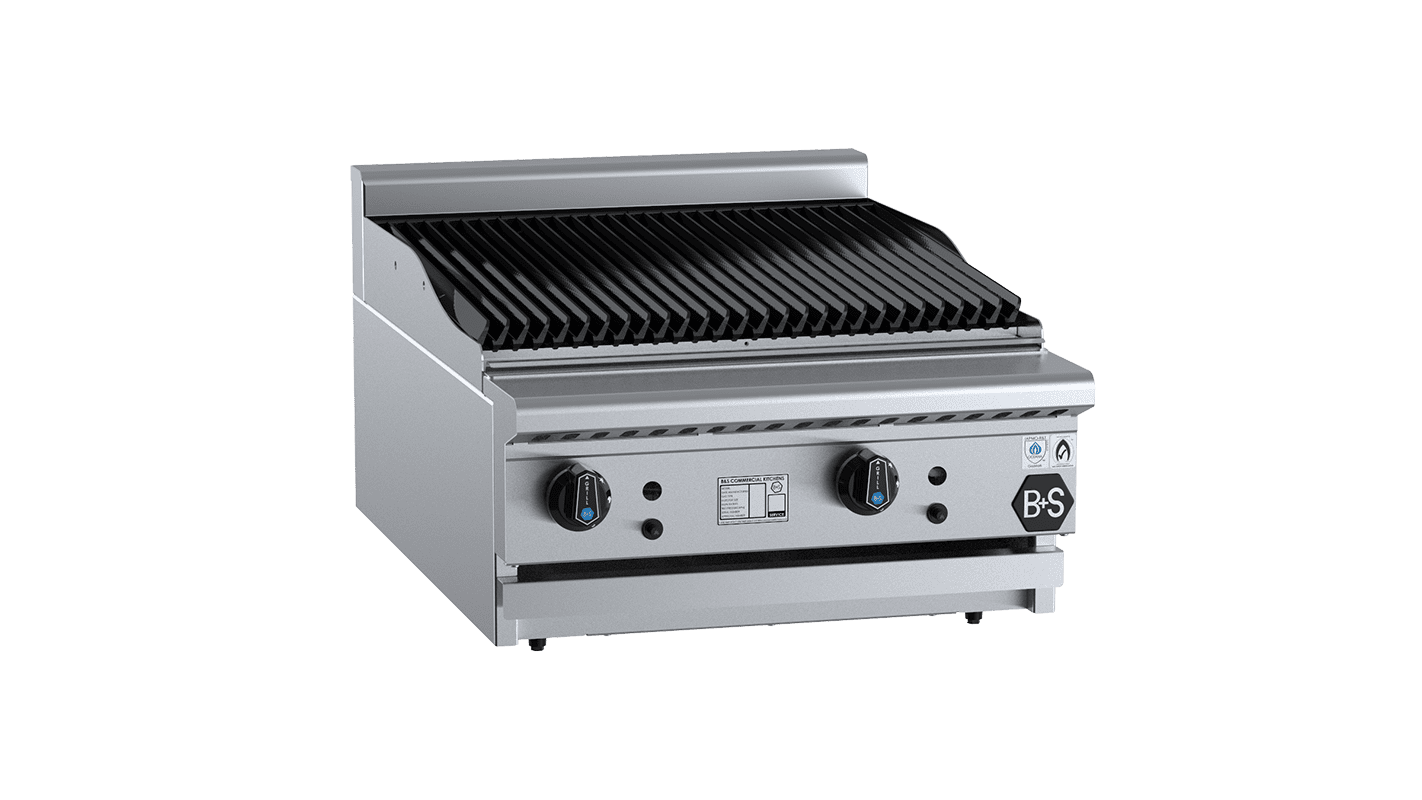

B+S Black Char Broiler 600mm Bench Mounted CBR-6BM

The B+S Black Char Broiler 600mm Bench Mounted CBR-6BM is a high-output commercial gas char broiler engineered for the rigours of busy restaurant, café, hotel and catering kitchens. Constructed in Italy from AISI 304 grade stainless steel with vitreous enamel components, it delivers up to 68 MJ/h on natural gas (60 MJ/h on LPG) across two burners, each rated at 34 MJ per 300mm section, making it a serious performer during peak service.

The unit features heavy-duty cast iron J-grates with radiant hoods for authentic chargrilled results and efficient heat distribution, alongside reversible grates that allow operators to switch between an inclined or flat cooking surface to suit different menu items. Flame failure protection, piezo ignition, a pilot take-off, and multi-setting gas valves are all fitted as standard, while a removable pressed spillage tray and easy component access keep maintenance and cleaning straightforward. Optional castors and a plinth-mounted configuration provide installation flexibility for a range of kitchen layouts.

Key Benefits

• Cast iron J-grates with radiant hoods retain and distribute heat evenly, producing consistent chargrilled flavour and high searing temperatures across the full 600mm cooking surface.
• Reversible grates let staff switch between inclined and flat cooking positions without additional equipment, adding versatility for different proteins and service styles.
• Flame failure protection automatically shuts off the gas supply if the flame is extinguished, reducing risk and supporting compliance with commercial kitchen safety requirements.
• Dual fuel compatibility (natural gas or LPG) means the unit can be commissioned on whichever gas supply is available at your site, with no compromise in output.
• Piezo ignition and a standard pilot take-off allow fast, reliable lighting at the start of service, minimising downtime during busy shifts.
• Multi-setting gas valves on each burner give chefs precise flame control, enabling a wide cooking range from gentle holding heat through to intense searing.
• A removable pressed spillage tray and easy access to all internal components reduce the time and effort needed for daily cleaning and scheduled servicing.
• AISI 304 stainless steel cabinet frame and body resist corrosion, withstand the demands of continuous commercial use, and maintain a professional appearance over time.
• Backed by a 24-month parts and labour warranty and Italian manufacture, the unit offers proven long-term reliability in demanding hospitality environments.

Key Features

• AISI 304 grade stainless steel construction with vitreous enamel components, made in Italy
• Heavy-duty complete stainless steel cabinet frame for structural stability
• 600 x 533mm cast iron J-grate cooking surface
• Heavy-duty cast iron J-grates with radiant hoods for efficient heat distribution and long service life
• Reversible grates that can be positioned inclined or flat to suit different cooking requirements
• 2 stainless steel gas burners, each rated at 34 MJ/h per 300mm section
• Total gas input up to 68 MJ/h on natural gas / 60 MJ/h on LPG
• Piezo ignition for quick and dependable start-up
• Pilot take-off fitted as standard for continuous ignition support
• Flame failure device fitted as standard, shutting off gas supply if the flame is lost
• Multi-setting gas valve on each burner for precise flame regulation
• Removable pressed top spillage tray for straightforward cleaning
• Easy access to all components for servicing and adjustment
• 3/4" BSP gas connection, compatible with natural gas and LPG
• Bench-mounted configuration as standard
• Optional castors available for kitchen mobility
• Optional plinth-mounted installation available
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 425
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 68
• Gas Input - LPG (MJ/h): 60
• Burner Output (MJ/h): 52
• Shipping Weight: 88
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 600 x 533
• Power Rating: 52 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
