Overview

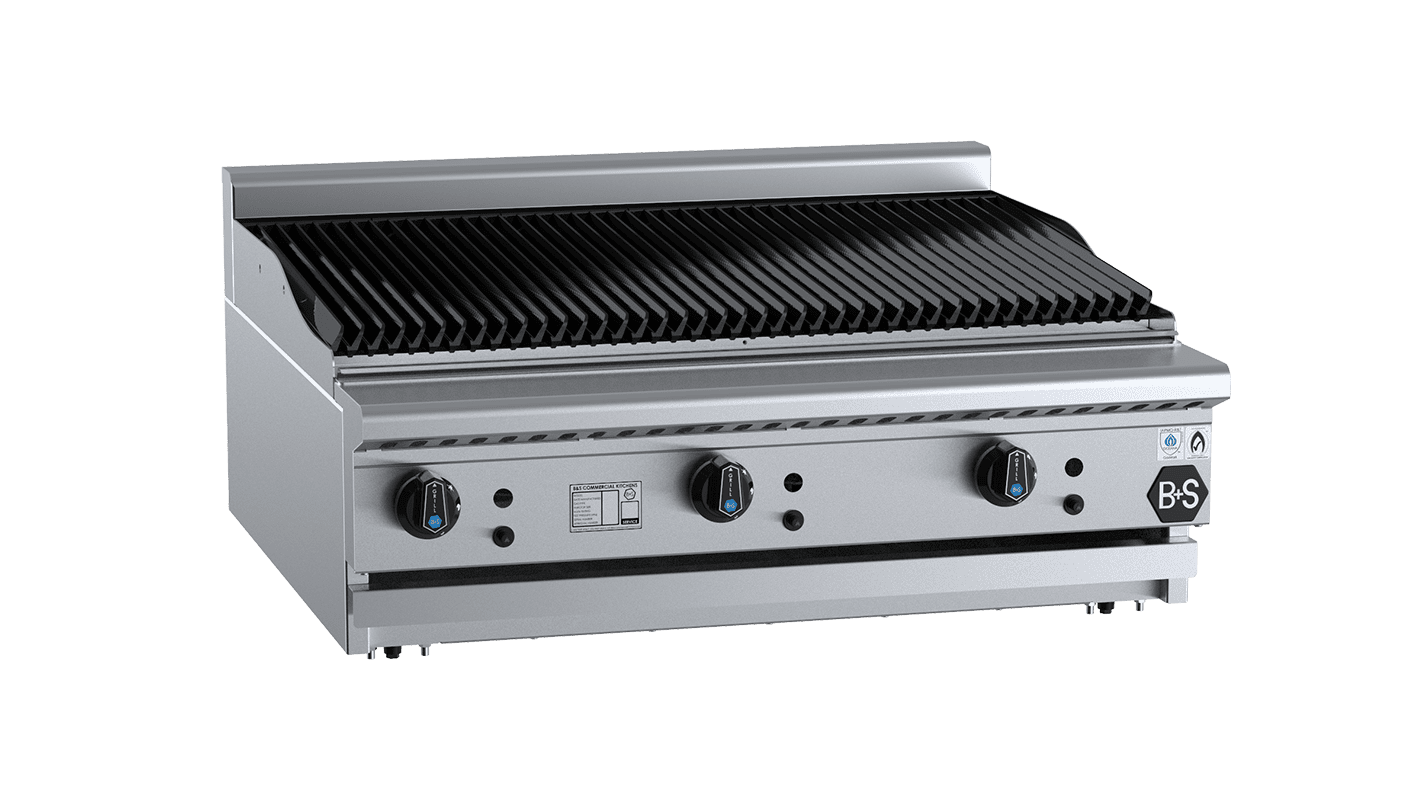

B&S Black Char Broiler 900mm Bench Mounted CBR-9BM

The CBR-9BM is a professionally engineered 900mm bench-mounted commercial gas chargrill, manufactured in Italy to withstand the demands of busy restaurant, café, hotel and catering kitchen environments. Built from AISI 304 grade stainless steel with vitreous enamel components, this unit produces up to 102 MJ/h on natural gas or 90 MJ/h on LPG across three independently controlled burners, making it well suited to sustained high-volume grilling throughout peak service periods.

The 900 x 533mm cooking surface is fitted with heavy-duty cast iron J-grates incorporating specialised fat drainage channels that direct grease runoff into a front-mounted spillage tray for straightforward end-of-service cleaning. A cast iron radiant hood sits above each 33 MJ burner to spread heat uniformly across the grates, delivering consistent chargrilled results every time. All components are accessible from the front for routine servicing, and a gas regulator is supplied with the unit.

Key Benefits

• Heavy-duty cast iron J-grates store and radiate intense heat, producing authentic chargrilled flavour and well-defined sear marks on every cook.
• Cast iron radiant hoods above each burner distribute heat evenly across the entire cooking surface, minimising hot spots and improving consistency across different proteins.
• A total gas input of up to 102 MJ/h on natural gas means the unit recovers cooking temperature rapidly during continuous high-volume service.
• Flame failure safety devices fitted to every burner automatically interrupt the gas supply if ignition is lost, protecting kitchen staff and meeting relevant safety requirements.
• Piezo ignition on each individual burner provides fast, dependable lighting with no need for matches or a separate lighter.
• Multi-setting gas valves offer precise, independent control of flame intensity per burner, allowing different proteins or cooking techniques to run simultaneously on the same unit.
• Integrated fat drainage channels guide grease toward a front-access spillage tray, speeding up cleaning at the end of service and reducing the likelihood of flare-ups.
• Compatibility with both natural gas and LPG gives operational flexibility across sites with varying gas supply configurations.
• A 24-month parts and labour warranty supports the unit's long-term performance in demanding commercial settings.

Key Features

• 900 x 533mm cast iron J-grate cooking surface with specialised fat drainage channels
• Cast iron radiant hoods above each burner for even heat distribution across the grates
• 3 gas burners rated at 33 MJ each
• Total gas input up to 102 MJ/h on natural gas and 90 MJ/h on LPG
• Piezo ignition on each burner for quick, reliable lighting
• Flame failure safety device fitted to every burner
• Multi-setting gas valve per burner for accurate, independent flame regulation
• Front-mounted grease trough and easy-clean fat spillage tray
• Front access to all components for straightforward servicing and maintenance
• AISI 304 grade stainless steel construction throughout
• Vitreous enamel components for durability and ease of cleaning
• Heavy-duty stainless steel frame for stability under continuous commercial use
• Gas regulator included with the unit
• 3/4" BSP gas connection
• Compatible with natural gas and LPG
• Bench-mounted configuration
• Dimensions: 900mm wide x 840mm deep x 425mm high
• Weight: 100 kg
• Made in Italy
• 24-month warranty (parts and labour)
• Must be installed by an authorised installer

Specifications

• Width (mm): 900
• Depth (mm): 840
• Height (mm): 425
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 102
• Gas Input - LPG (MJ/h): 90
• Burner Output (MJ/h): 78
• Shipping Weight: 119
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 950.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 900 x 533
• Power Rating: 78 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
