Overview

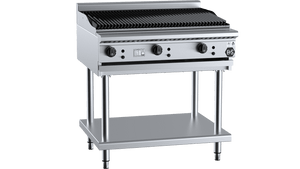

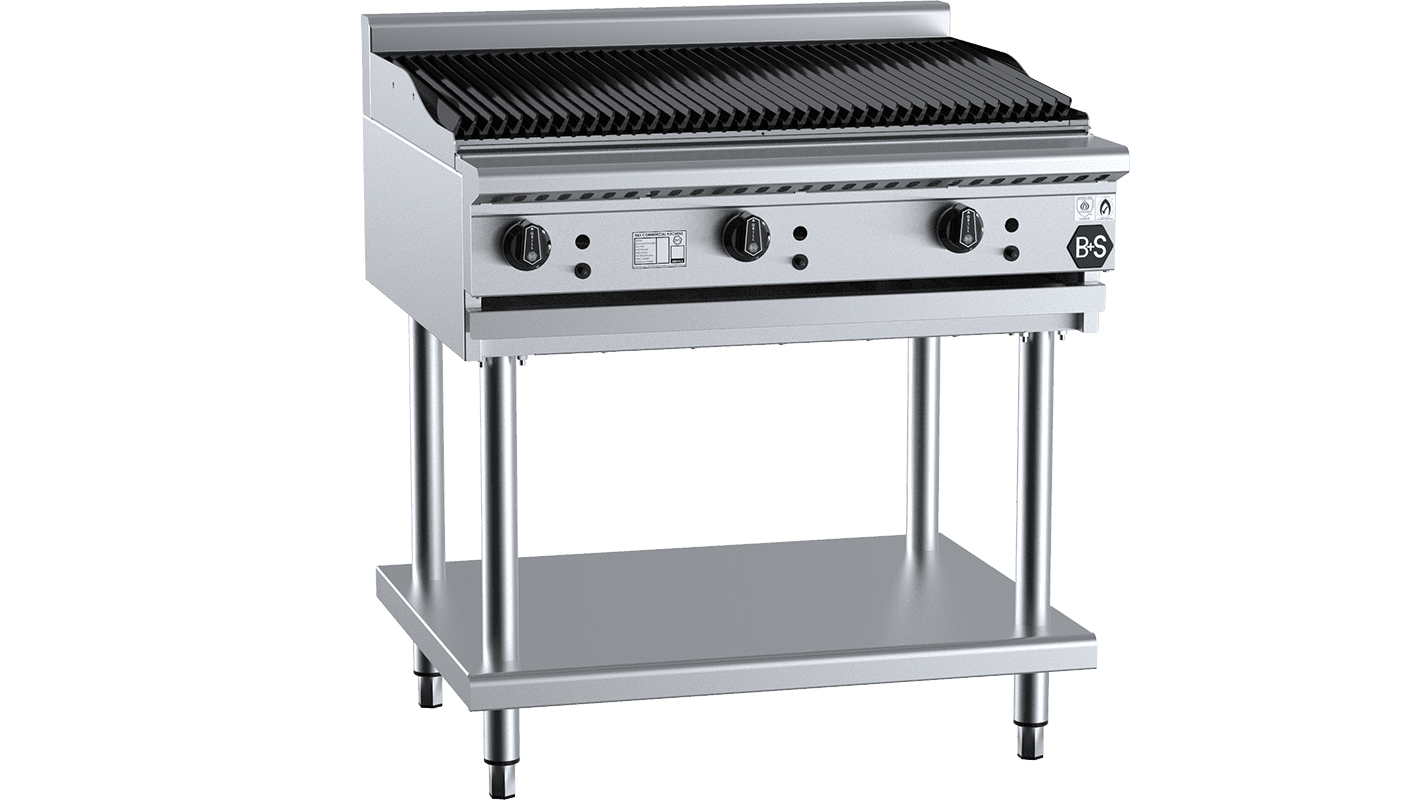

B+S Black Char Broiler 900mm CBR-9

The CBR-9 from B+S Black is a heavy-duty commercial gas char broiler built for high-output grilling across restaurants, cafés, hotels and catering kitchens. Manufactured in Italy from AISI 304 grade stainless steel with vitreous enamel components, this freestanding unit sits on an integrated open stand with an under shelf, and delivers a total gas input of up to 102 MJ/h on natural gas or 90 MJ/h on LPG across its three burners.

The 900 x 533 mm cooking surface is made up of heavy-duty cast iron J-grates fitted with dedicated drainage channels that direct fat forward into a front-mounted grease trough, while cast iron radiant hoods above each burner spread heat evenly across the grates for consistent chargrilled results. Each burner is equipped with its own multi-setting gas valve for precise flame regulation, along with piezo ignition for fast reliable lighting and a flame failure safety device that automatically shuts off gas supply if the flame goes out, with all components accessible from the front to simplify servicing.

Key Benefits

• Cast iron J-grates and radiant hoods produce authentic chargrilled flavour and deliver even, intense searing heat across the entire cooking surface.
• Integrated drainage channels guide rendered fat directly into the front grease trough, reducing flare-ups and keeping fat management simple during a busy service.
• A combined total output of up to 102 MJ/h on natural gas across three burners sustains the high heat levels required for continuous, high-volume grilling.
• Every burner incorporates a dedicated flame failure safety device that cuts the gas supply automatically if the flame is extinguished, protecting kitchen staff and meeting commercial safety requirements.
• Individual multi-setting gas valves on each burner provide precise temperature control across different menu items without disrupting service flow.
• Piezo ignition fitted to every burner allows fast, dependable lighting with no separate lighter or pilot flame required.
• All components are reachable from the front of the unit, so routine servicing and maintenance can be completed efficiently and with minimal downtime.
• The integrated open stand with under shelf offers convenient storage for utensils and accessories, helping to keep the workstation organised.
• AISI 304 stainless steel and vitreous enamel construction stand up to the demands of commercial kitchen use and are easy to clean to a hygienic standard.

Key Features

• 900 x 533 mm cast iron J-grate cooking surface
• Heavy-duty cast iron radiant hoods above each burner for even heat distribution
• Special drainage channels in the grates directing fat to a front-mounted grease trough
• Easy-to-clean fat spillage tray at the front of the unit
• 3 gas burners, each rated at 33 MJ/h
• Total gas input up to 102 MJ/h (natural gas) / 90 MJ/h (LPG)
• Piezo ignition on every burner
• Flame failure safety device on every burner
• Multi-setting gas valve per burner for greater flame regulation
• 3/4" BSP gas connection
• Compatible with both natural gas and LPG
• AISI 304 grade stainless steel body construction
• Vitreous enamel components
• Heavy-duty stainless steel frame
• Open freestanding stand with under shelf for utensil storage
• Frontal access to all components for easy servicing
• Regulator included with the unit
• Installation must be carried out by a qualified and authorised installer
• Made in Italy
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 900
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 102
• Gas Input - LPG (MJ/h): 90
• Burner Output (MJ/h): 78
• Shipping Weight: 119
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 950.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 900 x 533
• Power Rating: 78 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
