Overview

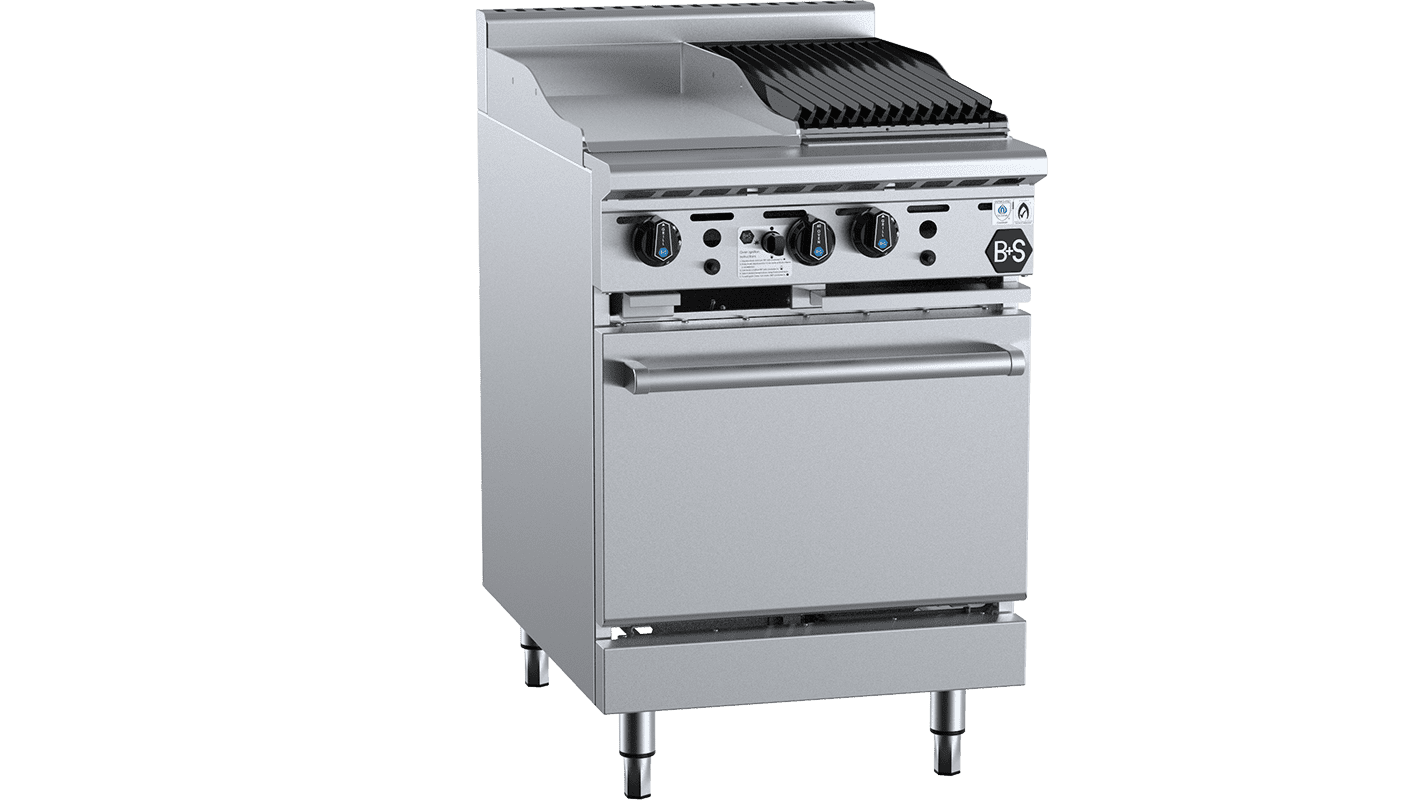

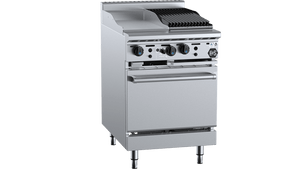

B+S Black Oven with 300mm Grill Plate & 300mm Char Broiler OV-GRP3-CBR3

The B+S Black OV-GRP3-CBR3 is a 600mm wide commercial gas range combining a grill plate section, a char broiler section and a gas oven into a single freestanding unit, purpose-built for high-volume restaurant, café, hotel and catering kitchens. Constructed on a heavy-duty stainless steel frame with AISI 304 grade stainless steel and vitreous enamel surfaces, and manufactured in Italy, it is designed to withstand the rigours of continuous peak-service cooking.

The unit runs on natural gas or LPG and delivers up to 85 MJ/h across its cooktop burners, while the oven uses a U-shaped burner combined with natural convection to distribute heat evenly through the oven chamber. A German-made thermostat, multi-setting gas valve and piezo ignition give operators precise, reliable control, and frontal access to all components keeps routine maintenance straightforward. A regulator is included with the unit.

Key Benefits

• Three cooking functions in one 600mm footprint — grill plate, char broiler and oven — reduce equipment costs and free up valuable kitchen space.
• U-shaped oven burner combined with natural convection delivers consistent, even heat throughout the oven chamber for reliable cooking results.
• Multi-setting gas valve provides fine-grained flame regulation, helping chefs maintain precise temperatures across different menu items.
• Compatible with natural gas and LPG, giving flexibility to suit virtually any commercial kitchen site.
• Frontal access to all components simplifies servicing and reduces downtime during busy service periods.
• Easy-clean fat spillage trays, polished stainless steel external surfaces and a vitreous enamel oven interior minimise cleaning time between services.
• Heavy-duty cast iron trivets and J grates with radiant hoods are built to handle the weight and heat demands of continuous commercial use.
• Barn-style oven doors open wide for unrestricted access to the oven cavity, making loading and unloading large trays faster and safer.
• Backed by a 24-month warranty on parts and labour, supporting long-term kitchen reliability.

Key Features

• AISI 304 grade stainless steel construction throughout, with vitreous enamel oven interior
• Heavy-duty stainless steel frame for structural rigidity and long service life
• 300mm grill plate section (GRP) with heavy-duty mild steel plate
• 300mm char broiler section (CBR) with heavy-duty cast iron J grates and radiant hoods
• Cooktop section burners rated at 31 MJ/h each, supplied in two pieces for easy cleaning
• Oven fitted with U-shaped burner combined with natural convection for even heat distribution
• Multi-setting gas valve as standard for greater regulation of flame setting
• German-made thermostat for accurate oven temperature control
• Piezo ignition for quick, reliable lighting
• Barn doors on the oven for greater access to the cooking cavity
• Oven includes 1 shelf
• Heavy-duty cast iron trivets on the cooktop surface
• Easy-clean fat spillage trays
• Freestanding on an integrated stand
• Frontal access to all components for straightforward maintenance
• Polished stainless steel external surfaces for easy cleaning
• Dual gas compatibility — natural gas and LPG
• 3/4" BSP gas connection
• Regulator included with the unit (must be installed by an authorised installer)
• Made in Italy
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 140
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 85
• Gas Input - LPG (MJ/h): 80
• Burner Output (MJ/h): 88
• Shipping Weight: 153
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Shelf Configuration: 1
• Material: 304 Stainless Steel / Vitreous Enamel
• Door Type: Drop-down with Spring Hinge
• No. of Shelves: 1
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: German-made Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Cast Iron Trivets
• Cooking Surface Area (mm): 295 x 550
• Temperature Range: 150°C - 280°C
• Power Rating: 88 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
