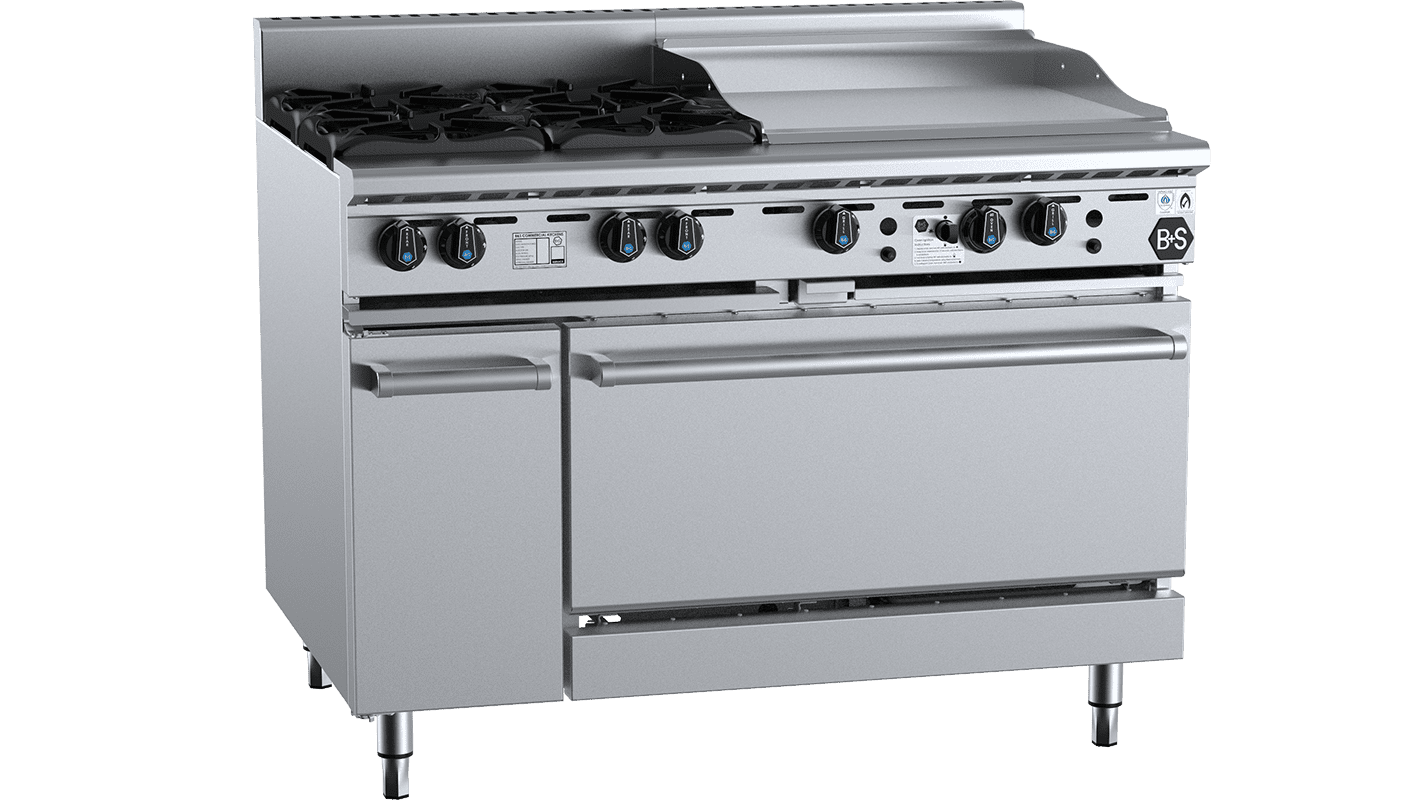

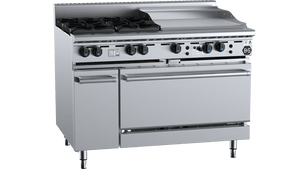

B+S Black Four Open Burners & 600mm Grill Plate Oven Range OV-SB4-GRP6

The B+S Black OV-SB4-GRP6 is a 1200mm wide commercial gas range combining four open burners, a 600mm grill plate and a full-size oven in a single freestanding footprint, making it a high-output solution for busy restaurant, cafe and hospitality kitchens. Built in Italy on a heavy-duty stainless steel frame with AISI 304 stainless steel and vitreous enamel finishes, the unit delivers up to 197 MJ/h on natural gas or 172 MJ/h on LPG across its six burners and oven combined.

The oven cavity features a solid stainless steel tubular U-shaped burner that works with natural convection to distribute heat evenly throughout the chamber, and a German-manufactured thermostat provides accurate temperature regulation. A flame failure device is included as standard, a regulator is supplied with the unit, and a 300mm storage cabinet is integrated into the base, offering practical utility alongside its substantial cooking capacity.

Key Benefits

• Open burners, grill plate and oven in one 1200mm footprint consolidate multiple cooking functions and save valuable kitchen floor space.
• Up to 197 MJ/h on natural gas or 172 MJ/h on LPG delivers the high heat output required for fast-paced commercial service.
• Flame failure device included as standard protects against gas flow if the flame extinguishes, supporting a safer kitchen environment.
• German-manufactured thermostat and multi-setting gas valve provide precise flame and temperature control across all cooking zones.
• U-shaped oven burner combined with natural convection ensures even heat distribution throughout the oven chamber for consistent results.
• Frontal access to all components simplifies routine servicing and adjustments, reducing maintenance downtime.
• Easy-clean fat spillage trays, polished stainless steel external surfaces and a top-welded smooth finish design speed up end-of-service cleaning.
• Integrated 300mm storage cabinet keeps frequently used tools and smallwares within reach during service.
• Backed by a 24-month parts and labour warranty, with a regulator included and compatibility with both natural gas and LPG for site flexibility.

Key Features

• AISI 304 stainless steel and vitreous enamel construction throughout
• Heavy-duty stainless steel frame with integrated 300mm base storage cabinet
• Four open burners, each rated at 31 MJ/h, featuring black enamelled Italian-made burner heads (BT type)
• 600mm grill plate section with 22 MJ/h aluminised tube burner per 300mm section (GRP type)
• Heavy-duty 16mm thick mild steel grill plate for even heat retention and distribution
• Solid mild steel base plate beneath grill plate for uniform heat distribution
• Oven fitted with a 29 MJ/h solid stainless steel tubular U-shaped burner (OV type)
• Natural convection oven heating for even chamber temperature distribution
• Internal oven dimensions: 785mm W x 630mm D x 290mm H (height measured from lowest rack position to top panel)
• Largest gastronorm capacity in its class
• German-manufactured thermostat for accurate oven temperature control
• Multi-setting gas valve for greater regulation of flame settings across cooking zones
• Piezo ignition for quick and reliable burner lighting
• Flame failure device included as standard on all burners
• Heavy-duty Italian-made vitreous enamelled trivets on the cooktop surface
• Heavy-duty insulated drop-down oven door with spring hinge system
• Top-welded, smooth finish design on all external surfaces
• Easy-clean fat spillage trays under cooktop burners
• Frontal access to all internal components for straightforward servicing
• Gas regulator included with the unit
• Compatible with natural gas and LPG
• 3/4" BSP gas connection
• Freestanding unit on integrated stand
• Made in Italy
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 220
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 197
• Gas Input - LPG (MJ/h): 172
• Burner Output (MJ/h): 132
• Shipping Weight: 197
• Packed Width (mm): 1200.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 950.0
• Shipping Cubic: 1.345200000m3
• Material: 304 Stainless Steel / Vitreous Enamel
• Door Type: Drop-down with Spring Hinge
• No. of Shelves: 1
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Number of Burners: 6
• Griddle Plate Thickness (mm): 16
• Griddle Surface: Cast Iron Trivets
• Fuel Type: Gas
• Cooking Surface Area (mm): 595 x 550
• Temperature Control: German-made Thermostat
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 176 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: 150°C - 280°C
