Overview

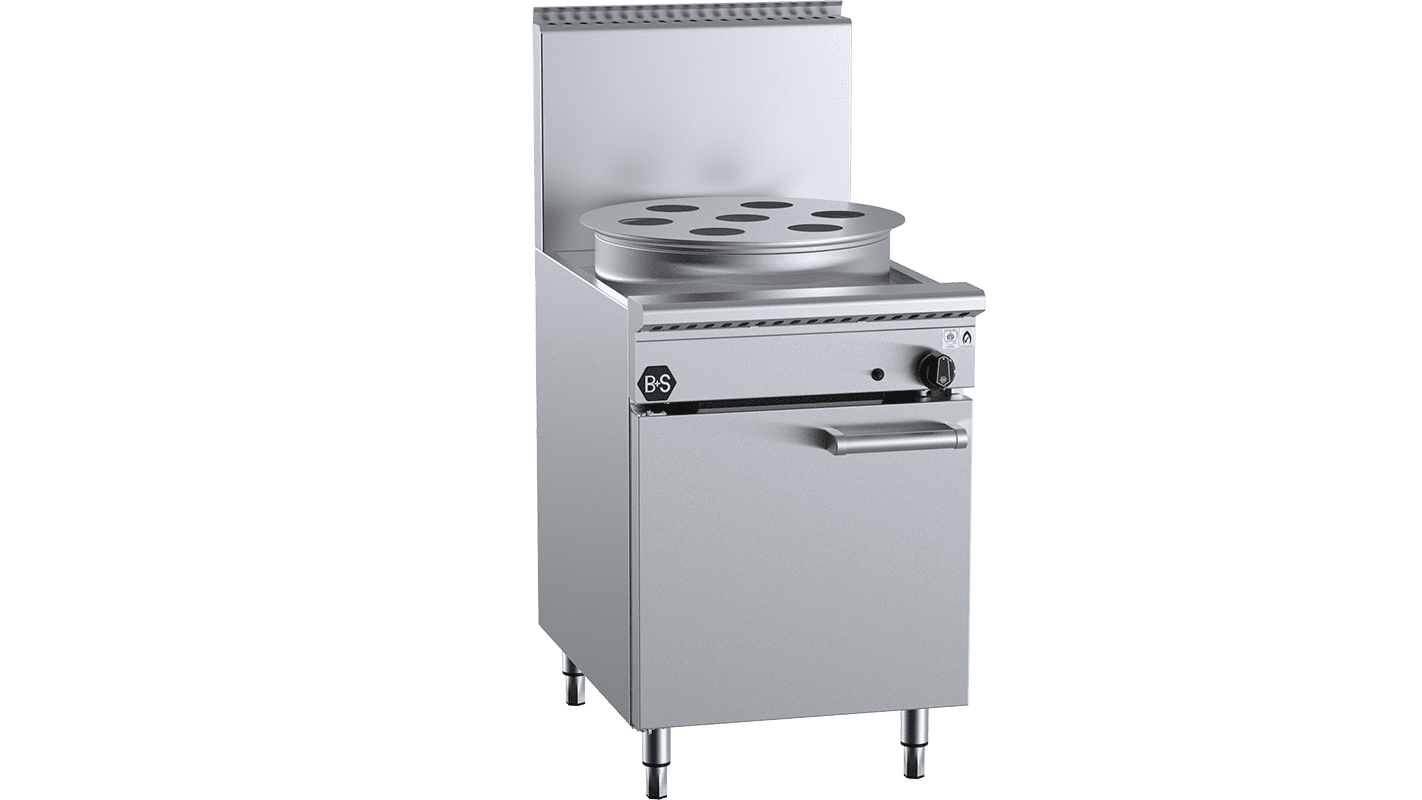

B&S Black YCJSF-1HE Waterless Heat Exchange Commercial Gas Steamer

The YCJSF-1HE from B&S Black is a high-output commercial gas steamer purpose-built for the rigours of restaurant, café, hotel and catering kitchens. Manufactured in Italy from AISI 304 grade stainless steel with a vitreous enamel finish, this 600mm wide freestanding model employs waterless heat-exchange steaming technology that consumes up to 15% less gas than conventional steamers while delivering a stronger, more consistent steam supply.

An automatic refill system keeps the 38.5-litre tank continuously topped up without any staff involvement, cutting water consumption by as much as 100 litres per hour compared to traditional yum cha steamers. Starting from a room temperature of 20°C, the water reaches boiling point in fewer than 20 minutes, and a built-in overheat protection device ensures safe, uninterrupted operation throughout even the busiest service periods.

Key Benefits

• Waterless heat-exchange technology consumes up to 15% less gas than conventional steamers, keeping operating costs down during high-volume service.
• Auto refill system continuously maintains water levels without chef intervention, removing the risk of taps being left on and reducing water consumption by up to 100 litres per hour.
• Water comes to the boil in under 20 minutes when starting from a 20°C ambient temperature, minimising warm-up delays ahead of service.
• Superior steam output compared to conventional yum cha steamers delivers faster, more consistent cooking results across the full menu.
• Overheat safety device guards against tank dry-boil, protecting the unit and reducing the likelihood of costly unplanned downtime.
• Piezo ignition paired with a flame failure device allows quick, safe lighting and automatically cuts the gas supply should the flame go out.
• AISI 304 stainless steel throughout the interior and exterior, a heavy-duty frame and a 2mm thick tank combine to provide lasting durability and easy cleaning.
• Compact 600mm freestanding footprint on an integrated stand makes installation practical in kitchens where bench space is at a premium.
• Suitable for both natural gas and LPG connections, allowing flexible installation across a wide variety of commercial kitchen configurations.

Key Features

• Waterless heat-exchange steaming system with insulated heat exchange chamber
• 1 duck bill jet gas burner
• Gas input up to 87.5 MJ/h (natural gas) / 84 MJ/h (LPG)
• 38.5-litre water tank capacity
• Tank auto refill system eliminates manual water management
• Tank drain valve included
• Water tank with built-in water overflow protection
• Overheat tank protection device to prevent dry-boil
• Piezo ignition and flame failure device fitted as standard equipment
• Lever handle gas control valve with multi-setting operation for accurate temperature adjustment
• AISI 304 grade stainless steel construction throughout, interior and exterior
• 2mm thick AISI 304 grade stainless steel tank
• Heavy-duty complete stainless steel cabinet frame
• Vitreous enamel finish components
• 7-hole steam plate and skirting included
• Complete perforated steaming plate
• 3/4" BSP gas connection
• Freestanding unit supplied on integrated stand
• Made in Italy
• 24-month parts and labour warranty
• Must be installed by an authorised installer

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 1300
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 87.5
• Gas Input - LPG (MJ/h): 84
• Burner Output (MJ/h): 88
• Shipping Weight: 170
• Packed Width (mm): 950.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 800.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 88 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Steam)
