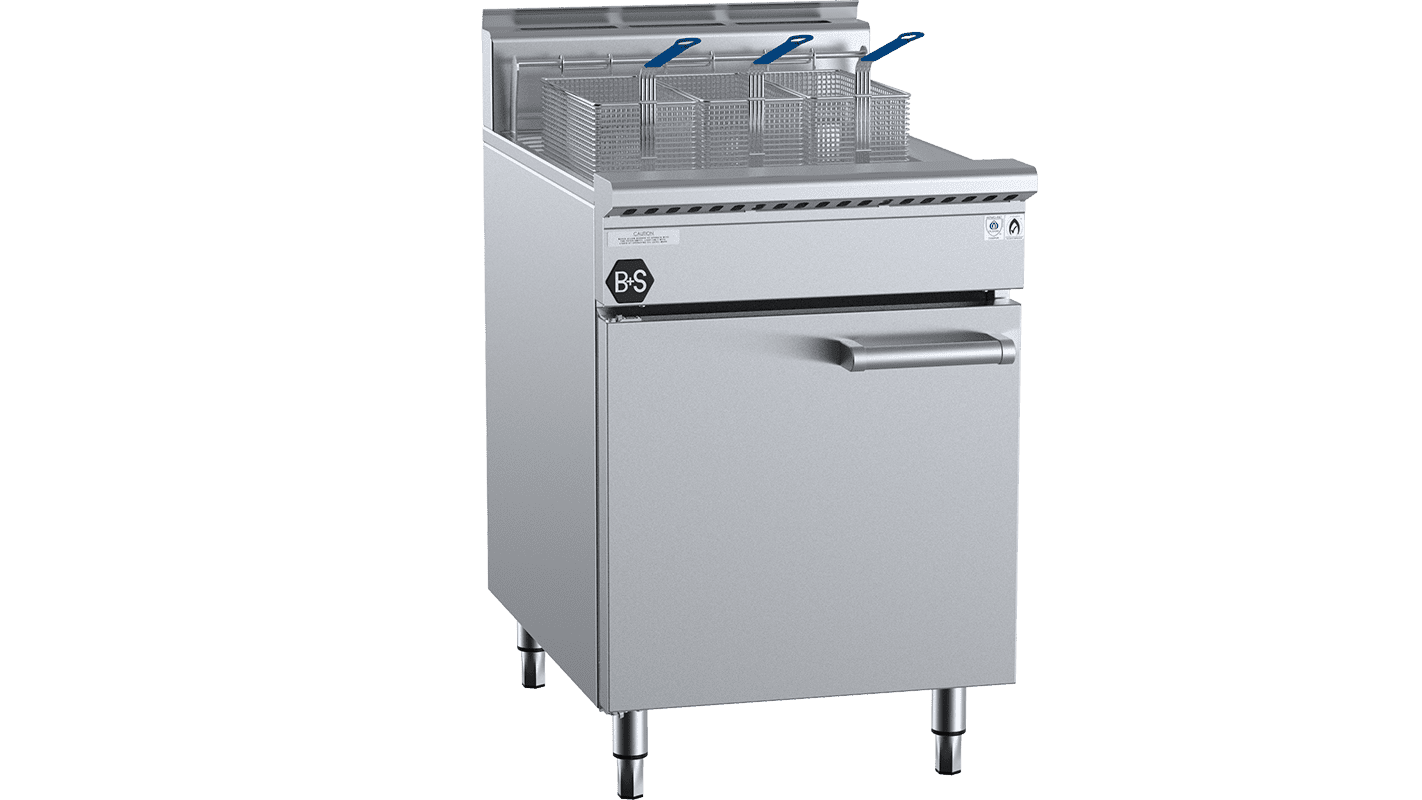

B&S Black Single Pan Turbo Fryer TF-601

The B&S Black Single Pan Turbo Fryer TF-601 is a 600mm wide, freestanding commercial gas fryer built for high-volume frying in restaurants, cafes, hotels and catering kitchens. Manufactured in Italy from 2mm thick AISI 304 stainless steel with vitreous enamel, it delivers up to 110 MJ/h on natural gas (105 MJ/h on LPG) through a highly efficient ceramic lined infrared burner, with a 27-litre oil capacity and three baskets to keep up with demanding service periods.

The TF-601 features a deep cool zone tank design that draws sediment and carbonised food particles away from the cooking area, preserving oil quality and extending its usable life. Piezo ignition with flame failure protection and a thermostat with over-temperature safety cut-out ensure reliable, controlled operation, while the stainless steel cabinet frame, front door access and logical layout make routine cleaning and servicing straightforward.

Key Benefits

• Ceramic lined infrared burner radiates heat evenly across the pan, improving temperature recovery time and reducing gas consumption during peak service.
• Deep cool zone design pulls sediment and carbonised particles to the bottom of the pan, keeping the cooking area clean and significantly prolonging oil life.
• 27-litre oil capacity with three baskets allows simultaneous cooking of multiple menu items, supporting high throughput without compromising output quality.
• Piezo ignition with flame failure device provides quick, reliable lighting and automatic gas shutoff if the flame is extinguished, protecting staff and complying with commercial safety standards.
• Thermostat with over-temperature safety cut-out maintains precise frying temperatures and prevents dangerous overheating, reducing product waste and liability.
• Dual gas compatibility with natural gas and LPG gives flexibility to suit different site configurations without requiring a separate unit.
• Heavy-duty AISI 304 stainless steel cabinet frame and 2mm thick pan construction provide long-term stability and resistance to the rigours of commercial kitchen use.
• Front door access to internal components simplifies routine servicing, maintenance and adjustment, reducing downtime.
• Supplied complete with baskets, a false base (fish plate) and a night cover, so the unit is ready to operate immediately upon installation.

Key Features

• 600mm wide freestanding unit on integrated stainless steel cabinet stand
• 1 ceramic lined infrared burner with even heat distribution along the pan
• Gas input: 110 MJ/h natural gas / 105 MJ/h LPG; burner output 86.6 MJ/h
• 27-litre oil capacity
• 2mm thick AISI 304 stainless steel pan with centre cool zone (pan dimensions: 300 x 415 x 350mm)
• Deep cool zone removes impurities from the cooking area and extends oil life
• Temperature recovery differential of +/- 3°C
• Oil temperature thermostatically regulated
• Over-temperature safety cut-out switch
• Piezo ignition with flame failure device
• Heavy-duty lockable oil drain valve
• 3/4" BSP gas connection
• Regulator included
• Front door access for easy servicing and component adjustment
• Constructed on a solid stainless steel frame
• AISI 304 stainless steel and vitreous enamel construction
• Supplied with three baskets, a false base (fish plate) and a night cover
• Accepts natural gas or LPG
• Made in Italy
• Must be installed by an authorised installer

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 70
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Gas Input - Natural Gas (MJ/h): 110
• Gas Input - LPG (MJ/h): 105
• Burner Output (MJ/h): 86.6
• Shipping Weight: 104
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Door Type: Front Access Panel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Tank Type: Single with Cool Zone
• Temperature Control: Thermostat with Safety Cut-out
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 1
• Number of Baskets: 3
• Oil Capacity (Litres): 27
• Temperature Range: 93°C - 190°C
• Power Rating: 86.6 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
