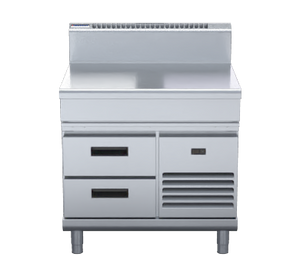

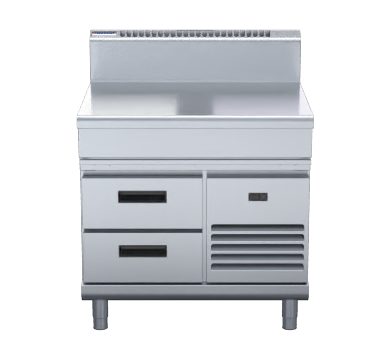

Waldorf BT8900-RB 800 Series 900mm Bench Top Refrigerated Base

The Waldorf BT8900-RB is a 900mm bench top unit sitting atop a refrigerated base, forming part of the trusted 800 Series range designed and manufactured in New Zealand. The entire unit is constructed from 304 stainless steel inside and out, featuring a robust 3.5mm thick compound work surface combined with a fully operational under-bench refrigerated drawer system that delivers a practical, space-efficient solution for busy commercial kitchens.

Operator convenience is central to the BT8900-RB, which runs a ventilated refrigeration system on R134a refrigerant to maintain a temperature range of -2°C to +8°C. A front-serviceable condensing unit, magnetic tool-free replaceable gaskets, and two GN 1/1 drawers riding on heavy-duty European telescopic guides all work together to minimise downtime and keep day-to-day maintenance as straightforward as possible.

Key Benefits

• A consistent operating temperature between -2°C and +8°C safeguards ingredient freshness and food safety across an entire service period.
• Two GN 1/1 drawers, each accommodating 100mm deep pans, deliver organised cold storage right at the workstation, cutting unnecessary movement during service.
• European telescopic drawer guides of heavy-duty construction deliver smooth, dependable operation even under constant high-frequency use.
• The condensing unit can be pulled out through the front of the cabinet, making servicing quicker and reducing both maintenance time and cost.
• Magnetic drawer gaskets swap out without any tools at all, enabling fast on-site repairs without calling in a technician.
• Automatic defrost combined with automatic evaporation of defrost water removes manual maintenance tasks and eliminates the risk of overflow or mess.
• Front adjustable feet and rear rollers make positioning, levelling, and repositioning straightforward on any commercial kitchen floor.
• 50mm fully foamed CFC-free insulation throughout the cabinet body and an anti-corrosion treated evaporator support long-term energy efficiency and extended unit longevity.
• No condensate drain connection is needed, simplifying installation and removing additional plumbing costs.

Key Features

• 900mm wide bench top mounted on a refrigerated base, part of the Waldorf 800 Series
• 3.5mm thick compound work surface provides a robust, long-lasting preparation area
• 304 stainless steel exterior and interior construction for durability and hygiene
• Ventilated refrigeration system using R134a refrigerant
• Operating temperature range: -2°C to +8°C
• Two GN 1/1 drawers with 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides for smooth, reliable drawer operation
• Magnetic drawer gaskets replaceable without tools for quick, easy maintenance
• 50mm fully foamed CFC-free insulation throughout the cabinet body
• Anti-corrosion treated evaporator for extended service life
• Automatic defrost system with automatic evaporation of defrost water
• No condensate drain required, simplifying installation
• Digital electronic thermostat for precise temperature control
• Condensing unit removable through the front of the unit for easy servicing
• Legs constructed from 63mm diameter 304 stainless steel tube at 1.2mm wall thickness, with height-adjustable feet at the front and roller castors at the rear
• Splashback included
• Undershelf included
• Cabinet door configuration with 1 adjustable internal shelf
• Easy-clean interior surfaces
• Benchtop mounting type
• Power supply: 1.8A, single phase, 220-240V AC, 50Hz, 3-pin 10A plug cordset fitted
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 121
• Packed Width (mm): 945.0
• Packed Height (mm): 1260.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.035909000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Door Type: Cabinet Door
• No. of Shelves: 1
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Mounting Type: Benchtop
