Overview

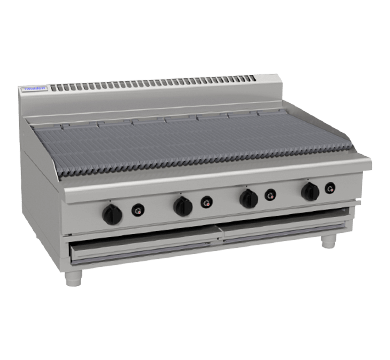

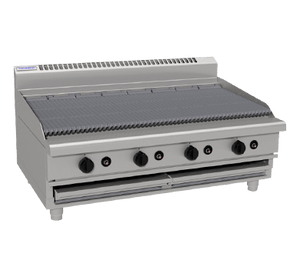

Waldorf CH8120G-B 800 Series 1200mm Gas Chargrill – Bench Model

The Waldorf CH8120G-B is a 1200mm bench-model gas chargrill from the Waldorf 800 Series, purpose-built for high-volume commercial kitchens including restaurants, steakhouses, pubs, hotels, and cafés. Powered by four 304 stainless steel U-burners delivering a combined output of 133 MJ/h (36.9 kW), it provides rapid heat recovery and consistent grilling performance across the full cooking surface for steaks, burgers, seafood, poultry, and vegetables.

Constructed from 304 stainless steel with heavy-duty cast iron reversible top grates, the CH8120G-B is engineered for durability and straightforward servicing. Its inclined grate design with fin configuration minimises flare-ups and channels grease toward a front collection system, while lift-out grates, radiants, and baffles simplify cleaning and reduce maintenance downtime. The bench-mount format integrates seamlessly with other Waldorf 800 Series equipment for suite-style kitchen layouts.

Key Benefits

• Four individual U-burners with variable high-low temperature control allow precise heat management across separate grill zones, supporting simultaneous cooking of different proteins and vegetables.
• Inclined grate positioning combined with a fin-groove design actively diverts grease to a front collection channel, reducing flare-ups for a safer, more consistent cooking environment.
• Reversible heavy-duty cast iron grates maximise heat transfer and deliver authentic char marks, extending the usable life of the cooking surface by allowing the operator to flip when one side wears.
• Flame failure protection with continuous pilot burners improves operational safety during intensive service, automatically safeguarding against unlit gas flow.
• Lift-out grates, radiants, and baffles allow thorough cleaning without tools, helping kitchen staff maintain hygiene standards quickly between services.
• Heavy-duty reinforced control knobs withstand the rigours of a busy commercial kitchen, reducing the likelihood of damage during daily operation.
• Bench-model configuration integrates with the Waldorf 800 Series cooking suite, enabling flexible modular kitchen layouts and maximising usable bench space.
• Compatible with both natural gas and LPG, providing installation flexibility across a wide range of commercial kitchen setups.
• New Zealand-manufactured with 304 stainless steel construction and a 24-month warranty, offering operators confidence in long-term reliability and after-sales support.

Key Features

• 1200mm wide bench-model gas chargrill, part of the Waldorf 800 Series cooking suite
• 4 x 33 MJ/h 304 stainless steel U-burners, totalling 133 MJ/h (36.9 kW) combined output
• Reversible heavy-duty cast iron top grates for superior heat retention and authentic char marks
• Inclined grate position with fin-groove design minimises flare-ups and channels grease toward front collection
• Front grease collection system for cleaner, more controlled grilling operation
• Flame failure protection with continuous pilot burner on each section for enhanced safety
• Lift-out grates, radiants, and baffles for easy access during cleaning and servicing
• Variable high-low temperature control per burner for flexible heat zoning
• Heavy-duty reinforced control knobs designed to withstand intensive commercial use
• Fully welded 304 stainless steel exterior construction
• Integrated splashback included; no undershelf
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Bench-mount format designed for integration with other Waldorf 800 Series equipment
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Shipping Weight: 295
• Packed Width (mm): 1245.0
• Packed Height (mm): 855.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.926093000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
