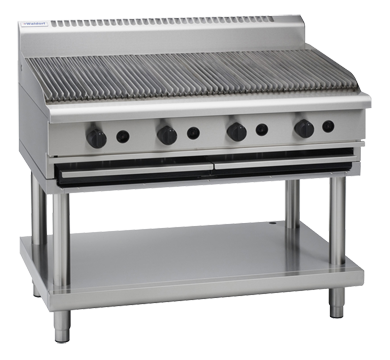

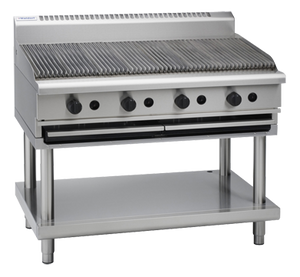

Waldorf CH8120G-LS 800 Series 1200mm Gas Chargrill – Leg Stand

The Waldorf CH8120G-LS is a heavy-duty 1200mm gas chargrill from the 800 Series, mounted on a leg stand with an undershelf for practical storage. Four 304 stainless steel U-burners deliver a combined output of 133 MJ/h, driving intense, even heat across heavy-duty cast iron grates all the way to the edges of the cooking surface. Compatible with both natural gas and LPG, this unit is engineered and manufactured in New Zealand to handle the rigorous demands of high-volume commercial kitchens.

A thoughtfully inclined grate and fin arrangement minimises flare-ups during cooking while channelling grease into a front collection point for straightforward cleaning. Flame failure protection with a continuous pilot burner keeps operations safe, and the lift-out design of the grates, radiants and baffles makes routine maintenance quick and thorough. Reversible heavy-duty grates extend their usable life, and reinforced control knobs are built to withstand the punishment of a busy professional environment.

Key Benefits

• Four high-output U-burners deliver 133 MJ/h total heat, ensuring rapid temperature recovery and consistent char marks across a full 1200mm cooking surface.
• Inclined grate and fin arrangement actively reduces flare-ups, protecting food quality and reducing the risk of fat fires during peak service.
• Integrated grease channels direct run-off to a front collection point, speeding up between-service cleaning and keeping the cooking zone clear.
• Flame failure protection with a continuous pilot burner shuts off the gas supply if the flame is extinguished, providing a critical safety safeguard.
• Reversible heavy-duty cast iron grates can be flipped to extend their service life and maintain optimum cooking performance for longer.
• Lift-out grates, radiants and baffles allow thorough, no-tools access for cleaning and routine servicing, reducing downtime.
• Heavy-duty reinforced control knobs withstand constant use in demanding commercial environments without degrading or becoming difficult to operate.
• Variable high-low temperature control on each burner gives chefs precise, independent heat management across the entire grill surface.
• Constructed from 304 stainless steel throughout with a stainless steel splashback, supporting long-term hygiene and corrosion resistance in commercial kitchen conditions.

Key Features

• 1200mm wide gas chargrill mounted on a leg stand with undershelf
• 4 x 33 MJ/h 304 stainless steel U-burners, totalling 133 MJ/h (36.9 kW)
• Compatible with natural gas and LPG via R 3/4 (BSP) male gas connection
• Heavy-duty reversible cast iron top grates for extended service life
• Inclined cooking surface with grate fin arrangement to minimise flare-ups
• Grease grooves direct fat run-off to a front collection channel
• Flame failure protection with continuous pilot burner for operator safety
• Individual variable high-low burner controls for precise heat zoning
• Lift-out grates, radiants and baffles for thorough and efficient cleaning
• Heavy-duty reinforced control knobs for durability under constant use
• 304 stainless steel construction throughout
• Integrated stainless steel splashback
• Undershelf included for storage
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Shipping Weight: 295
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
