Overview

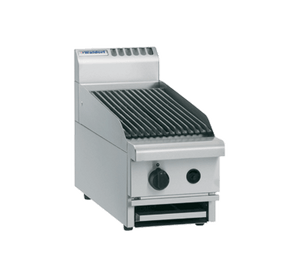

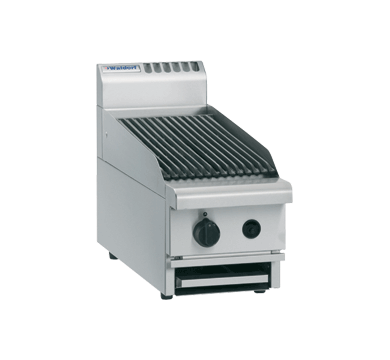

Waldorf CH8300G-B 800 Series 300mm Gas Chargrill Bench Model

The Waldorf CH8300G-B is a compact 300mm bench model gas chargrill from the 800 Series, purpose-built for high-volume commercial kitchens where counter space is at a premium but grilling output cannot be compromised. Constructed from 304 stainless steel and powered by a single 33 MJ/hr U-burner delivering 9.2 kW, it accepts both natural gas and LPG connections, making it versatile across a wide range of commercial venues.

Designed and manufactured in New Zealand, the CH8300G-B incorporates a series of practical features that prioritise safety, cooking performance and ease of maintenance. The inclined grate configuration channels grease away from the flame to reduce flare-ups, while the flame failure protection system with continuous pilot burner adds an important layer of operational safety. All key internal components lift out for straightforward cleaning, keeping downtime to a minimum during busy service periods.

Key Benefits

• Compact 300mm footprint fits neatly on a bench or counter, freeing up valuable kitchen floor space without sacrificing grilling capacity.
• Inclined grate design directs grease away from burners toward a front collection channel, significantly reducing flare-ups for safer, more consistent grilling.
• Flame failure protection with a continuous pilot burner automatically shuts off gas if the flame is extinguished, protecting staff and premises.
• Reversible heavy-duty cast iron top grates allow you to switch between grill and flat cooking surfaces to suit different menu items.
• Variable high-low temperature control gives chefs precise heat management for a wide range of proteins and vegetables.
• Lift-out grates, radiants and baffles make thorough end-of-service cleaning quick and straightforward, reducing labour costs.
• Compatible with both natural gas and LPG supplies, providing flexibility for different site installations.
• Heavy-duty reinforced control knobs are built to withstand the rigours of constant commercial use.
• Backed by a 24-month parts and labour warranty, providing confidence in long-term reliability.

Key Features

• Single 304 stainless steel U-burner rated at 33 MJ/hr (9.2 kW)
• Reversible heavy-duty cast iron top grates for dual cooking surface options
• Inclined grate and burner configuration minimises flare-ups and channels grease to a front collection point
• Flame failure protection system with continuous pilot burner for enhanced safety
• Lift-out grates, radiants and baffles for thorough and efficient cleaning
• Variable high-low burner control for precise temperature management
• Heavy-duty reinforced control knobs rated for sustained commercial use
• Splashback included as standard
• 304 stainless steel construction throughout
• Accepts natural gas or LPG with R 3/4 (BSP) male gas connection
• Bench model design suitable for countertop installation
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 300
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 33
• Shipping Weight: 86
• Packed Width (mm): 865.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 345.0
• Shipping Cubic: 0.198453000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 9.2 kW
• Temperature Control: Variable High-Low
