Overview

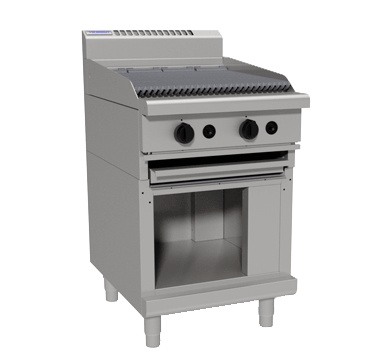

Waldorf CH8600G-CB 800 Series 600mm Gas Chargrill with Cabinet Base

The Waldorf CH8600G-CB is a 600mm wide gas chargrill from the 800 Series, mounted on a fully enclosed cabinet base for a self-contained, professional cooking station. Constructed from 304 stainless steel throughout, it is powered by two 33 MJ/hr stainless steel U-burners delivering a combined output of 66 MJ/hr, with variable high-low temperature control per burner to suit a wide range of proteins, vegetables and grilling applications.

Engineered for demanding commercial kitchens, the CH8600G-CB features reversible heavy-duty cast iron grates positioned at an incline, incorporating a flare-reducing grate fin design with grooves that channel grease forward into a front collection trough. Lift-out radiants, burners, grease tray baffles and grates make cleaning, servicing and installation straightforward, while full pilot and flame failure protection on each burner ensures safe, reliable operation throughout every service.

Key Benefits

• Authentic char marks and intense, even heat across the full cooking surface deliver consistent, high-quality grill results across varied menu items.
• Inclined grate design with flare-reducing fin arrangement channels grease away from the flame into a front collection channel, minimising flare-ups and improving cooking control.
• Individual variable high-low temperature control per burner allows different heat zones on the same grill surface, supporting simultaneous cooking of different ingredients.
• Full pilot and flame failure protection on every burner provides an essential safety safeguard during continuous busy service periods.
• Lift-out grates, radiants, burners and grease tray baffles simplify end-of-service cleaning and routine maintenance, reducing downtime.
• Reversible heavy-duty cast iron grates extend the usable life of the cooking surface and offer flexibility in grill mark presentation.
• Cabinet base provides enclosed under-counter storage, keeping the workstation organised and maximising the utility of the floor footprint.
• Compatible with both natural gas and LPG, offering flexibility for different kitchen utility configurations.
• Manufactured in New Zealand to Waldorf's commercial durability standards, backed by a 24-month warranty.

Key Features

• 600mm wide gas chargrill on enclosed cabinet base
• Two 33 MJ/hr 304 stainless steel U-burners, combined output 66 MJ/hr
• Reversible heavy-duty cast iron top grates
• Inclined grate positioning with flare-reducing fin design and grease grooves directing run-off to a front collection channel
• Full pilot and individual flame failure protection per burner
• Lift-out radiants, burners, grates and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Splashback included
• Cabinet door enclosure beneath cooking surface
• 304 stainless steel construction throughout
• R 3/4 (BSP) male gas connection
• Accepts both natural gas and LPG
• Country of origin: New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Shipping Weight: 189
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
