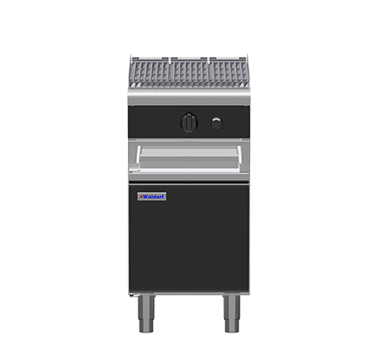

Waldorf Bold CHB8450G-CD 450mm Gas Chargrill with Cabinet Base

The Waldorf Bold CHB8450G-CD is a 450mm wide gas chargrill mounted on a cabinet base, purpose-built for busy commercial kitchens that demand consistent, high-output performance. Producing 48MJ/hr through stainless steel burners, it delivers authentic char marks and even, intense heat across cast iron grates, making it equally capable with meats, seafood and vegetables across high-volume service periods.

Engineered in New Zealand from 304 stainless steel, this unit features an inclined grate design with flare-reducing fin profiles and integrated grease grooves that channel runoff directly into a front collection trough, keeping the cooking surface cleaner and reducing flare-ups. Every component from the radiants and burners to the grease tray baffles lifts out for straightforward cleaning, while heavy-duty heat-resistant control knobs and full pilot and flame failure protection per burner ensure safe, reliable day-to-day operation.

Key Benefits

• High-output 48MJ/hr burner delivers intense, consistent heat for authentic chargrilling results across the full 450mm cooking surface.
• Flare-reducing grate fin design channels grease away from the heat source into a front collection trough, minimising flare-ups and reducing the need for constant supervision.
• Full pilot and flame failure protection per burner provides an important safety safeguard during busy service.
• Reversible heavy-duty cast iron top grates extend the lifespan of the cooking surface and allow operators to rotate grates for even wear.
• All key internal components, including radiants, burners and grease tray baffles, lift out completely, significantly reducing cleaning time between services.
• Variable high-low temperature control gives chefs precise heat management for different proteins and cooking styles without changing burners.
• Cabinet base design provides enclosed under-unit storage, making efficient use of the kitchen footprint.
• Compatible with both natural gas and LPG connections via a 3/4 BSP male fitting, offering flexible installation across different venues.
• Available in multiple colour options beyond the default black finish, allowing the unit to integrate with a variety of kitchen fit-out schemes.

Key Features

• 450mm wide gas chargrill on an enclosed cabinet base
• 48MJ/hr output via stainless steel burners (13.3 kW power rating)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design; grooves channel grease into a front collection trough
• Full pilot and flame failure protection on each burner
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Front fixed panel construction
• Constructed from 304 stainless steel
• Splashback included
• Compatible with natural gas and LPG; 3/4 BSP male gas connection
• Default colour is black; additional colour options available
• Part of the Waldorf Bold range; manufactured in New Zealand
• Note: image may depict the CHLB8450G-CD low-back version of this model

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
