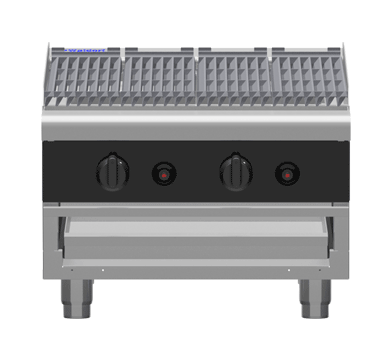

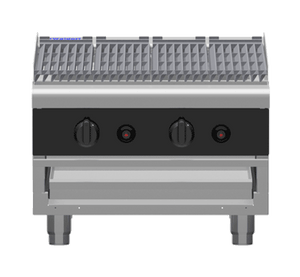

Waldorf Bold CHB8600G-B 600mm Gas Chargrill - Bench Model

The Waldorf Bold CHB8600G-B is a 600mm wide bench model gas chargrill built for high-volume commercial kitchens. Constructed from 304 stainless steel with two 33 MJ/hr U-burners delivering a combined output of 66 MJ/hr (18.3 kW), it produces authentic char marks on meats, seafood and vegetables with consistent, even heat across the entire grill surface.

Designed with operator convenience in mind, the CHB8600G-B features reversible heavy-duty cast iron grates, an inclined cooking surface to reduce flare-ups and channel grease away efficiently, and flame failure protection via a continuous pilot burner for safe operation. Compatible with both natural gas and LPG, it ships in a default black finish with additional colour options available to suit your kitchen's aesthetic.

Key Benefits

• Authentic char marks and high radiant heat elevate the presentation and flavour of grilled proteins and vegetables during peak service
• Inclined grate position channels grease away from burners, significantly reducing flare-ups and improving cook consistency
• Flame failure protection with continuous pilot burner enhances operator safety by cutting gas supply if the flame is extinguished
• Reversible cast iron grates provide two cooking surfaces in one, extending the usable life of each grate and offering flexibility for different menu items
• Lift-out grates, radiants and baffles simplify end-of-service cleaning and routine maintenance without tools
• Heavy-duty reinforced control knobs withstand the demands of a busy commercial environment and provide precise variable high-low temperature control
• Compatible with both natural gas and LPG, making it straightforward to install across a range of kitchen configurations
• Available in custom colours as part of the Waldorf Bold range, allowing cohesive kitchen suite design

Key Features

• 600mm wide bench model configuration suitable for countertop installation
• Two 304 stainless steel U-burners, each rated at 33 MJ/hr, totalling 66 MJ/hr (18.3 kW) combined output
• Reversible heavy-duty cast iron top grates for extended surface life and cooking flexibility
• Inclined grate and surface position to minimise flare and direct grease runoff away from burners
• Flame failure protection with continuous pilot burner for safe unattended operation
• Lift-out grates, radiants and baffles for thorough and efficient cleaning access
• Heavy-duty reinforced control knobs designed for durability under constant commercial use
• Variable high-low temperature control per burner zone
• R 3/4 (BSP) male gas connection, compatible with natural gas and LPG
• 304 stainless steel construction throughout for corrosion resistance and longevity
• Integrated splashback included as standard
• Default finish is black; additional custom colour options available as part of the Waldorf Bold range
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
