Overview

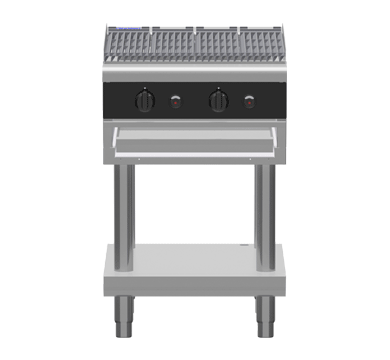

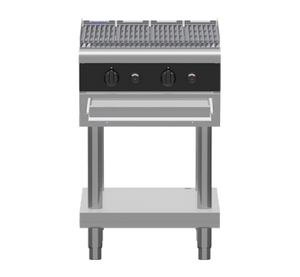

Waldorf CHB8600G-LS Bold 600mm Gas Chargrill with Leg Stand

The Waldorf CHB8600G-LS is a 600mm wide commercial gas chargrill from the Waldorf Bold range, mounted on a leg stand to form a stable, self-contained cooking station at bench height. Two 304 stainless steel U-burners each rated at 33 MJ/hr combine for a total output of 66 MJ/hr (18.3 kW), with compatibility for both natural gas and LPG via a 3/4 BSP male fitting. Manufactured in New Zealand and backed by a 24-month warranty, the unit is built to sustain the demands of high-volume commercial kitchen environments.

Practical serviceability is central to the design. The heavy-duty cast iron top grates are reversible and fully removable, and the radiants and baffles can also be taken out independently, allowing thorough cleaning between services without the need for tools. The grill surface is set at an inclined angle to channel grease away efficiently and reduce flare-ups, while a flame failure device paired with a always-on pilot burner provides an important safety layer throughout service. The default finish is black, with additional custom colour options available to suit broader kitchen fit-out requirements, and an integrated splashback and undershelf are included as standard.

Key Benefits

• Delivers authentic char marks and high-heat searing across the full 600mm grill surface, suited to meats, seafood and vegetables in volume service
• Inclined grate position channels grease away from the burners and reduces flare-ups, improving both food quality and operational safety
• Reversible cast iron grates extend the usable service life of the cooking surface and offer flexibility across different cooking styles
• Grates, radiants and baffles are each independently removable, enabling thorough, fast cleaning between services without requiring any tools
• A continuously burning pilot burner combined with flame failure protection gives operators confidence during busy periods and whenever the unit is left unattended
• Accepts both natural gas and LPG, making the unit suitable for a wide variety of venue types and site configurations
• Heavy-duty reinforced control knobs are built to withstand the rigours of repeated daily handling in a commercial kitchen
• Leg stand configuration delivers a stable, self-contained unit that integrates easily into kitchen layouts without requiring a separate bench
• Custom colour options allow the unit to complement broader kitchen fit-out schemes beyond the standard black finish

Key Features

• 600mm wide gas chargrill mounted on a leg stand
• Two 304 stainless steel U-burners, each rated at 33 MJ/hr, for a combined output of 66 MJ/hr (18.3 kW)
• Variable high-low temperature control via heavy-duty reinforced control knobs
• Reversible heavy-duty cast iron top grates
• Grill surface inclined to minimise flare and promote efficient grease drainage
• Flame failure safety device with an always-on pilot burner
• Grates, radiants and baffles are each independently removable for accessible, thorough cleaning
• 304 stainless steel construction throughout
• Integrated splashback and undershelf included
• Accepts natural gas or LPG; 3/4 BSP male gas connection
• Default colour black; additional custom colour options available
• Part of the Waldorf Bold range; manufactured in New Zealand
• 24-month warranty
• Note: product images may show the CHLB8600G-LS low back variant of the same model

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
