Overview

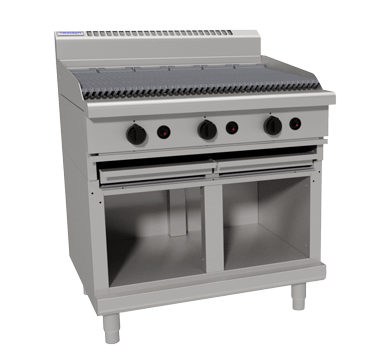

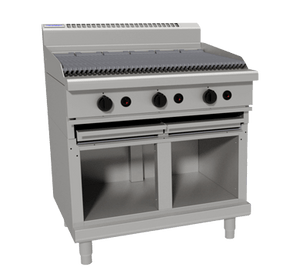

Waldorf Bold CHL8900G-CB 900mm Gas Chargrill Low Back Version - Cabinet Base

The Waldorf Bold CHL8900G-CB is a 900mm wide commercial gas chargrill mounted on a cabinet base, designed to deliver consistent, high-intensity grilling performance in demanding commercial kitchen environments. Constructed from 304 stainless steel and manufactured in New Zealand, this unit features three independent 33MJ/hr stainless steel burners providing a combined output of 100MJ/hr (27.8kW), with variable high-low temperature control across the full cooking surface.

Engineered for practical everyday use, the chargrill incorporates reversible heavy-duty cast iron top grates set at an inclined position, with a flare-reducing fin design that channels grease forward into a front collection channel. Full pilot and flame failure protection is fitted per burner, and all key components including radiants, burners and grease tray baffles are lift-out for straightforward cleaning, installation and servicing.

Key Benefits

• Three independently controlled burners allow different heat zones across the 900mm surface, supporting simultaneous cooking of varied menu items.
• Inclined grate position with flare-reducing fin design minimises flare-ups and directs grease into the front collection channel, reducing mess and fire risk.
• Full pilot and flame failure protection per burner enhances safety for continuous high-volume service.
• Reversible heavy-duty cast iron grates provide authentic char marks on both sides, extending grate life and offering flexibility.
• Lift-out radiants, burners and grease tray baffles make end-of-service cleaning faster and more thorough.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, providing installation flexibility across different sites.
• Heavy-duty, heat-resistant reinforced control knobs are built to withstand the rigours of a busy commercial kitchen.
• Cabinet base with door provides enclosed under-bench storage directly beneath the cooking surface.
• 304 stainless steel construction throughout ensures durability and compliance with commercial hygiene standards.

Key Features

• 900mm wide gas chargrill on enclosed cabinet base with cabinet door
• 3 x 33MJ/hr stainless steel burners, total output 100MJ/hr (27.8kW)
• Variable high-low temperature control per burner
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves channelling grease to front collection channel
• Full pilot and flame failure safety protection fitted per burner
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• 304 stainless steel construction
• Integrated splashback (low back version)
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• No undershelf
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
