Overview

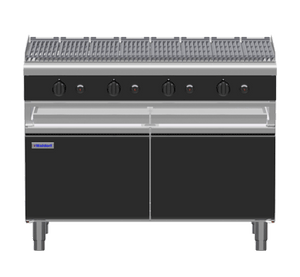

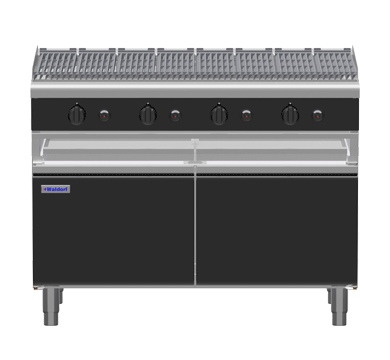

Waldorf Bold CHLB8120G-CD 1200mm Gas Chargrill with Cabinet Base

The Waldorf Bold CHLB8120G-CD is a heavy-duty 1200mm gas chargrill mounted on a cabinet base, purpose-built for high-volume commercial kitchens. Delivering 133 MJ/h across four independently controlled stainless steel burners, it produces authentic char marks on meats and vegetables with consistent, even heat across the entire cooking surface.

Manufactured in New Zealand from 304 stainless steel, this unit combines practical serviceability with robust construction. The inclined grate design channels grease away from the flame to reduce flaring, while lift-out components and a front grease collection channel make cleaning straightforward during and after service. Available in black as standard with additional colour options, it suits a wide range of kitchen fit-outs.

Key Benefits

• Four independently controlled burners allow different heat zones across the 1200mm surface, giving chefs precise control over simultaneous cook times.
• The flare-reducing grate fin design directs grease away from burners and into a front collection channel, minimising flare-ups and improving food quality consistency.
• Full pilot and flame failure protection on every burner enhances operational safety and complies with commercial kitchen safety requirements.
• Reversible heavy-duty cast iron top grates extend the usable life of cooking surfaces and allow different grill patterns to suit menu needs.
• Lift-out radiants, burners and grease tray baffles simplify routine cleaning and reduce downtime between services.
• Heavy-duty, heat-resistant reinforced control knobs withstand the demands of continuous commercial use and remain comfortable to operate at high temperatures.
• Compatible with both natural gas and LPG, providing flexibility for sites with different gas infrastructure.
• Cabinet base provides enclosed under-bench storage, making efficient use of floor space in busy kitchen environments.

Key Features

• 1200mm wide gas chargrill on an enclosed cabinet base
• 4 x 33 MJ/h stainless steel burners, totalling 133 MJ/h (36.9 kW) output
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing grate fin design and grooves channelling grease into a front collection trough
• Full pilot and individual flame failure protection on each burner
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Splashback included; no undershelf
• 304 stainless steel construction
• R 3/4 (BSP) male gas connection
• Accepts natural gas or LPG
• Part of the Waldorf Bold range with default black finish; additional colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 355.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
