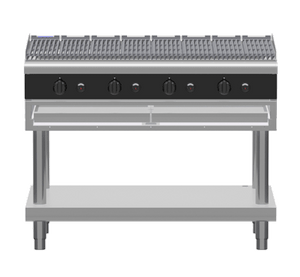

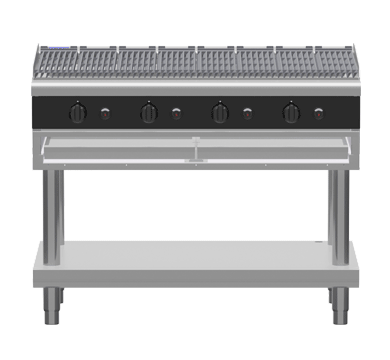

Waldorf Bold CHLB8120G-LS 1200mm Gas Chargrill Low Back Version with Leg Stand

The Waldorf Bold CHLB8120G-LS is a 1200mm wide commercial gas chargrill mounted on a leg stand, designed for high-volume kitchens that demand consistent, authentic char-grill results. Four 304 stainless steel U-burners deliver a combined output of 133 MJ/h (36.9 kW), producing even, intense heat across heavy-duty reversible cast iron grates for perfectly marked meats, seafood and vegetables service after service.

Engineered and manufactured in New Zealand from 304 stainless steel, the Bold series chargrill incorporates a purposefully inclined grate position with flare-reducing fin design and grooved channels that direct grease into a front collection point, keeping flare-ups under control and simplifying clean-down. Full pilot ignition and per-burner flame failure protection provide operator confidence, while lift-out grates, radiants, burners and grease tray baffles make routine maintenance straightforward. Available in black as standard with additional colour options to suit kitchen fit-outs.

Key Benefits

• Four high-output burners at 33 MJ/h each deliver powerful, even heat across the full 1200mm cooking surface, reducing hot and cold spots during peak service.
• Reversible heavy-duty cast iron grates extend service life and allow operators to switch between grate profiles to suit different menu items.
• Inclined grate position combined with a flare-reducing fin design channels grease away from burners into a front collection point, minimising flare-ups and improving cooking consistency.
• Per-burner flame failure protection with continuous pilot ignition enhances safety and ensures reliable re-ignition during busy service periods.
• Lift-out grates, radiants, burners and grease tray baffles make deep cleaning faster and more thorough, reducing kitchen downtime between services.
• Variable high-low temperature control per burner gives chefs precise heat management across different zones of the grill simultaneously.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of a commercial environment and remain easy to operate under pressure.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, offering flexibility across different site configurations.
• Undershelf and splashback included as standard, adding practical storage and protecting surrounding surfaces from heat and grease splash.

Key Features

• 1200mm wide gas chargrill on leg stand configuration
• 4 x 33 MJ/h 304 stainless steel U-burners, 133 MJ/h total output (36.9 kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves to channel grease into front collection point
• Full pilot ignition with per-burner flame failure protection
• Lift-out grates, radiants, burners and grease tray baffles for easy cleaning
• Variable high-low temperature control per burner
• Heavy-duty, heat-resistant reinforced control knobs
• 304 stainless steel construction throughout
• Accepts natural gas or LPG; R 3/4 (BSP) male gas connection
• Integrated undershelf for additional storage
• Splashback included as standard
• Low back version design
• Default colour black; additional colour options available
• Waldorf Bold series product
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
