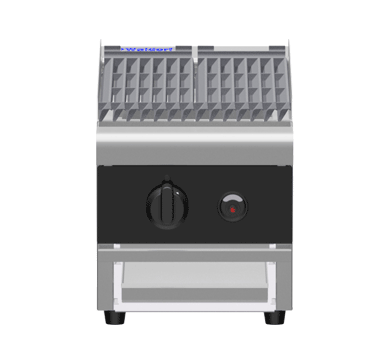

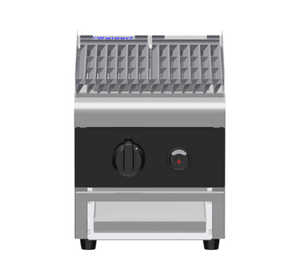

Waldorf Bold CHLB8300G-B Bench Chargrill 300mm Low Back Gas Model

The Waldorf Bold CHLB8300G-B is a 300mm wide bench-mount gas chargrill built for commercial kitchens where worktop space is limited but cooking performance cannot be compromised. Manufactured in New Zealand to the demanding standards of the Bold range, it is constructed throughout in 304 stainless steel and powered by a single U-burner delivering 33 MJ/hr (9.2 kW), generating the sustained, intense heat needed to produce authentic char marks on meats, seafood and vegetables over a durable cast iron grate surface.

This low back configuration incorporates an integrated splashback and omits an undershelf, keeping the footprint minimal. The unit connects to natural gas or LPG through an R 3/4 BSP male fitting and is finished in black as standard, with custom colour options available. A 24-month warranty backs every unit.

Key Benefits

• A 300mm footprint slots into tight bench layouts without reducing cooking capacity or output.
• Cast iron grates are set at an angle so grease channels away from the heat source, actively suppressing flare-ups and keeping the cooking environment cleaner and safer.
• Reversible heavy-duty cast iron grates can be flipped when one surface shows wear, extending service life and reducing replacement costs.
• A safety flame failure device paired with a continuously burning pilot ensures the gas supply cuts if the flame extinguishes unexpectedly, supporting commercial compliance requirements.
• Grates, radiants and baffles are all fully removable as individual lift-out components, making end-of-service cleaning faster and more thorough.
• Variable high-low burner control allows operators to fine-tune heat output precisely to suit different proteins and cooking techniques.
• Heavy-duty reinforced control knobs are built to endure constant use in high-volume kitchen environments.
• Compatibility with both natural gas and LPG provides installation flexibility across a wide range of commercial sites.

Key Features

• 300mm wide bench model within the Waldorf Bold range, low back version with integrated splashback and no undershelf
• Single 304 stainless steel U-burner rated at 33 MJ/hr (9.2 kW)
• Reversible heavy-duty cast iron top grates
• Grates mounted at an inclined angle to minimise flare and direct grease run-off away from the burner
• Flame failure protection device coupled with a continuously lit pilot burner
• Grates, radiants and baffles each removable independently for straightforward cleaning and servicing
• Heavy-duty reinforced control knobs for durability under constant use
• Variable high-low burner control for precise temperature management
• 304 stainless steel construction throughout
• Accepts natural gas or LPG via R 3/4 BSP male gas connection
• Default finish is black; custom colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 300
• Depth (mm): 805
• Height (mm): 470
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 33
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 9.2 kW
• Temperature Control: Variable High-Low
