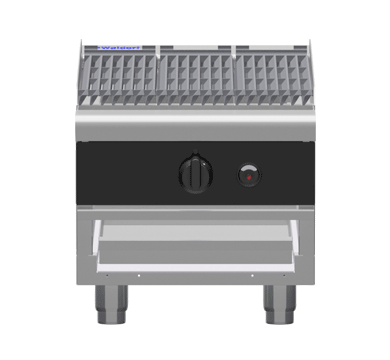

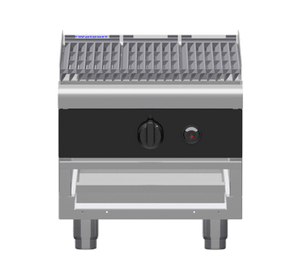

Waldorf Bold CHLB8450G-B Gas Chargrill 450mm Bench-Mount Low Back

The Waldorf Bold CHLB8450G-B is a 450mm wide, bench-mounted gas chargrill in a low back configuration, purpose-built for high-output commercial kitchens that require consistent, authentic char results. A single stainless steel burner delivers 48MJ/hr (13.3kW) of intense, even heat across reversible heavy-duty cast iron grates, producing the classic char marks and caramelisation that professional food service demands. Manufactured in New Zealand from 304 stainless steel and finished in a default black with additional colour options available across the Waldorf Bold range, the unit is engineered to endure the demands of continuous commercial operation.

Safety and serviceability are central to the design. Each burner is equipped with both a pilot ignition system and a flame failure device, satisfying commercial kitchen safety standards and giving operators confidence during service. Routine maintenance is simplified through removable radiants, burners and grease tray baffles that can be lifted clear for thorough cleaning without extended downtime. Heavy-duty, heat-resistant reinforced control knobs and variable high-low temperature adjustment complete a package suited to kitchens where space, reliability and ease of use all matter.

Key Benefits

• Achieves authentic char marks and high-heat searing on meats and vegetables via cast iron grates backed by 48MJ/hr output.
• Inclined grate positioning with flare-reducing fin profiles directs grease runoff into a front collection trough, keeping flare-ups to a minimum and improving workplace safety.
• Every burner incorporates a dedicated pilot ignition system alongside a flame failure device, meeting commercial safety requirements and providing reliable peace of mind.
• Reversible heavy-duty cast iron grates extend the working life of the cooking surface and allow flexibility across different cooking applications.
• Removable radiants, burners and grease tray baffles allow fast, thorough cleaning and straightforward servicing, reducing kitchen downtime.
• Heavy-duty, heat-resistant reinforced control knobs are built to withstand sustained high-temperature use for long-term reliability.
• Variable high-low temperature control enables chefs to manage distinct heat zones and accommodate a broader range of menu items.
• Accepts both natural gas and LPG through a standard R 3/4 BSP male connection, making installation straightforward across a variety of venue setups.
• A compact 450mm footprint preserves valuable bench space in kitchens where every square metre counts.

Key Features

• 450mm wide bench-mount unit in a low back profile
• Single stainless steel burner rated at 48MJ/hr (13.3kW)
• Variable high-low temperature control per burner
• Reversible heavy-duty cast iron top grates
• Inclined grate positioning with flare-reducing fin design and grease grooves channelling runoff into a front collection trough
• Pilot ignition and independent flame failure safety device fitted to each burner; removable radiants, burners and grease tray baffles for easy cleaning, installation and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Constructed from 304 stainless steel
• Integrated splashback included; no undershelf
• Default colour is black; additional colour options available within the Waldorf Bold range
• Compatible with natural gas and LPG; gas connection R 3/4 BSP male
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
