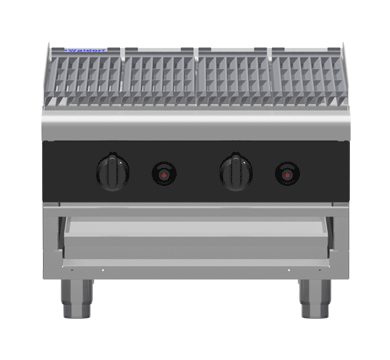

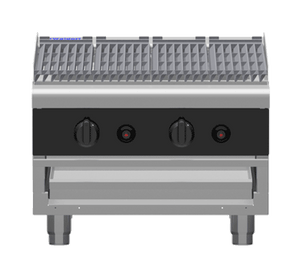

Waldorf Bold CHLB8600G-B 600mm Gas Chargrill Low Back Version Bench Model

The Waldorf Bold CHLB8600G-B is a 600mm wide bench-model gas chargrill designed for demanding commercial kitchen environments. Powered by two 304 stainless steel U-burners delivering a combined 66 MJ/hr (18.3 kW), it produces consistent, high-intensity heat across the entire grilling surface, giving meats and vegetables authentic char marks with every service.

Engineered in New Zealand and built from 304 stainless steel, this chargrill prioritises ease of cleaning and day-to-day serviceability. Grates, radiants and baffles all lift out for thorough cleaning, while the inclined grate position channels grease away efficiently to minimise flare-ups. Compatible with both natural gas and LPG, and finished in a default black with additional colour options available, it integrates cleanly into a wide range of commercial kitchen setups.

Key Benefits

• Twin U-burners with variable high-low temperature control let chefs manage different proteins and vegetables simultaneously without overcooking.
• Inclined grate position reduces flare-ups by directing grease runoff away from the burners, improving safety and food quality during busy service.
• Flame failure protection with a continuous pilot burner automatically cuts gas flow if the flame is extinguished, reducing safety risk in a fast-paced kitchen.
• Reversible heavy-duty cast iron grates extend the usable life of the cooking surface and allow the grill to be reconfigured based on service needs.
• Lift-out grates, radiants and baffles make end-of-service cleaning faster and more thorough, reducing labour time and maintaining hygiene standards.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, minimising wear and the need for replacement parts.
• Bench-model footprint with a low back design suits tight kitchen layouts and allows flexible installation alongside other equipment in the Waldorf Bold range.
• Dual gas compatibility (natural gas and LPG) via a 3/4 BSP male connection provides installation flexibility across different venue setups.
• A 24-month warranty and straightforward serviceability help reduce long-term operating costs and equipment downtime.

Key Features

• 600mm wide bench-model gas chargrill with low back configuration
• Two 304 stainless steel U-burners, each rated at 33 MJ/hr (66 MJ/hr combined, 18.3 kW total output)
• Variable high-low temperature control per burner zone
• Reversible heavy-duty cast iron top grates
• Grates positioned at an incline to reduce flare and direct grease runoff
• Flame failure protection system with continuous pilot burner
• Lift-out grates, radiants and baffles for thorough and straightforward cleaning
• Heavy-duty reinforced control knobs for durability under continuous use
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; 3/4 BSP male gas connection
• Default finish is black; additional colour options available
• No undershelf; splashback included
• Part of the Waldorf Bold range
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 472
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
