Overview

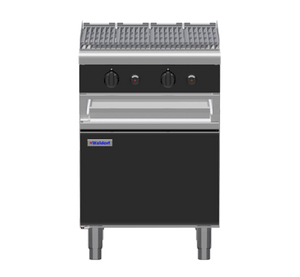

Waldorf Bold CHLB8600G-CD 600mm Gas Chargrill with Cabinet Base

The Waldorf Bold CHLB8600G-CD is a 600mm wide gas chargrill mounted on a cabinet base, designed for high-volume commercial kitchens that demand consistent chargrilling performance. Built in New Zealand from 304 stainless steel, it delivers 66MJ/h of total output across two independently controlled burners, producing authentic char marks on meats, seafood and vegetables with minimal flare-up.

Engineered for ease of use and serviceability, the unit features reversible heavy-duty cast iron top grates set at an inclined angle with a flare-reducing fin design that channels grease into a front collection trough. Lift-out radiants, burners and grease tray baffles simplify cleaning and maintenance, while full pilot and flame failure protection on each burner keeps operations safe. Available in black as standard, with additional colour options to suit your kitchen fit-out.

Key Benefits

• Dual independently controlled burners allow precise heat zoning, letting you cook different proteins simultaneously at different temperatures.
• Inclined grate fin design actively redirects grease away from the flame and into a front collection channel, significantly reducing flare-ups and smoke.
• Full pilot and flame failure protection per burner provides an important safety safeguard during continuous busy service periods.
• Reversible heavy-duty cast iron grates extend the working life of the cooking surface and offer flexibility in grill texture and presentation.
• Lift-out radiants, burners and grease tray baffles make end-of-service cleaning faster and more thorough, reducing labour time.
• Heat-resistant reinforced control knobs withstand the rigours of a hot commercial environment, maintaining reliable operation over time.
• Compatible with both natural gas and LPG supplies via a standard R 3/4 BSP male connection, providing flexible installation options.
• Cabinet base provides useful enclosed storage directly beneath the cooking surface, keeping the kitchen footprint compact.
• Variable high-low temperature control on each burner gives chefs the flexibility to hold, sear or char to order across the 600mm cooking width.

Key Features

• 600mm wide gas chargrill mounted on an enclosed cabinet base
• Two stainless steel burners, each rated at 33MJ/h, for a combined output of 66MJ/h (18.3kW)
• Reversible heavy-duty cast iron top grates for flexible cooking surfaces
• Inclined grate positioning with flare-reducing fin design and integrated grooves that channel grease to a front collection trough
• Full pilot and flame failure safety protection on each individual burner
• Lift-out radiants, burners and grease tray baffles for straightforward cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• 304 stainless steel construction throughout
• Integrated splashback included
• Accepts natural gas or LPG; R 3/4 BSP male gas connection
• Default colour is black; additional colour options available
• Part of the Waldorf Bold range
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
