Overview

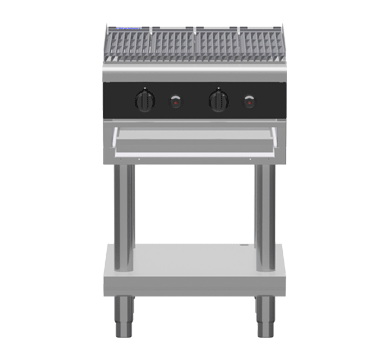

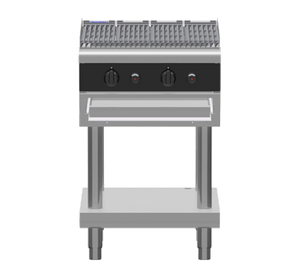

Waldorf Bold CHLB8600G-LS 600mm Gas Chargrill Low Back Version with Leg Stand

The Waldorf Bold CHLB8600G-LS is a 600mm commercial gas chargrill mounted on a leg stand, designed to deliver authentic char marks and consistent high heat across the cooking surface. Constructed in New Zealand from 304 stainless steel with heavy-duty cast iron grates and twin 33 MJ/hr U-burners, it delivers a combined output of 66 MJ/hr (18.3 kW) and is built to withstand the demands of busy commercial kitchens.

Safety and serviceability are central to the design. Flame failure protection with a continuous pilot burner ensures operator confidence during service, while the inclined grate position reduces flare-ups and channels grease away efficiently. Lift-out grates, radiants and baffles make end-of-service cleaning straightforward, and the unit is available in the signature Waldorf Bold black finish or custom colour options to suit any kitchen specification.

Key Benefits

• Twin cast iron grates deliver authentic char marks and even, high-intensity heat across the full 600mm cooking surface.
• Reversible heavy-duty grates extend working life and offer flexibility for different cooking applications.
• Inclined grate position channels grease away from the burners, significantly reducing flare-ups during high-volume service.
• Flame failure protection with a continuous pilot burner provides an important safety safeguard in fast-paced kitchen environments.
• Lift-out grates, radiants and baffles allow thorough cleaning without the need for special tools, reducing downtime between services.
• Variable high-low temperature control on each burner lets operators manage heat zones independently for versatile menu cooking.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and resist damage from heat and moisture.
• Compatible with both natural gas and LPG supplies via a standard R 3/4 BSP male connection, suiting a wide range of venue installations.
• 24-month warranty and New Zealand manufacture back the unit's long-term reliability in professional kitchens.

Key Features

• 600mm wide gas chargrill on leg stand with undershelf for storage
• 2 x 33 MJ/hr 304 stainless steel U-burners, totalling 66 MJ/hr (18.3 kW) output
• Reversible heavy-duty cast iron top grates
• Inclined grate and radiant position to minimise flare-up and promote efficient grease run-off
• Flame failure protection with continuous pilot burner on each burner
• Lift-out grates, radiants and baffles for quick and thorough cleaning
• Variable high-low temperature control per burner zone
• Heavy-duty reinforced control knobs for durability in commercial use
• 304 stainless steel construction throughout
• Low back (splash back) version for installation against a wall
• Accepts natural gas or LPG; R 3/4 BSP male gas connection
• Default finish is black; additional custom colour options available
• Part of the Waldorf Bold range
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
