Overview

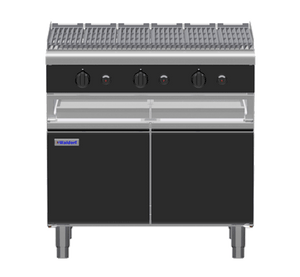

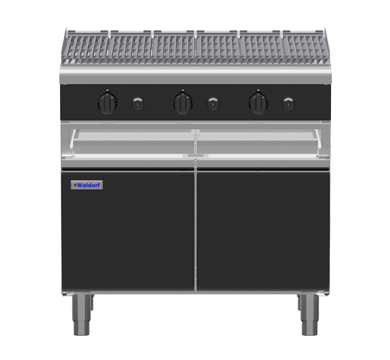

Waldorf Bold CHLB8900G-CD 900mm Gas Chargrill with Cabinet Base, Low Back Configuration

The CHLB8900G-CD from the Waldorf Bold range is a 900mm wide gas chargrill built on an enclosed cabinet base and configured with a low back profile, manufactured in New Zealand for the demands of high-volume commercial kitchens. Three stainless steel burners, each delivering 33MJ/hr, combine for a total output of 100MJ/hr (27.8kW), generating consistent, high-intensity heat across the entire grill surface to produce authentic char marks on meats, seafood and vegetables. The unit suits both standalone placement and suite integration within the Waldorf Bold modular range.

An inclined grate design channels grease forward through flare-reducing fins into a front collection trough, keeping the cooking surface performing cleanly through extended service periods. The default finish is black, with additional colour options available to complement a range of kitchen fit-outs, and the enclosed cabinet base provides practical storage directly beneath the cooking surface to maximise efficiency in compact kitchen layouts.

Key Benefits

• Three independent burners with variable high-low temperature control allow different proteins and vegetables to be cooked simultaneously at different heat levels.
• Every burner is equipped with integrated pilot ignition and individual flame failure safety devices, providing a critical safeguard in fast-paced kitchen conditions.
• The inclined grate position paired with a flare-reducing fin design directs grease into a front collection channel, significantly reducing flare-ups and improving food quality consistency.
• Reversible heavy-duty cast iron top grates extend usable life and allow the cooking surface to be refreshed without full replacement.
• Removable radiants, burner assemblies and grease tray baffles that lift clear of the unit simplify daily cleaning and routine maintenance, reducing downtime between services.
• Compatible with both natural gas and LPG supplies via a 3/4 BSP male connection, offering installation flexibility across different sites.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of continuous commercial use and remain easy to operate under pressure.
• The enclosed cabinet base provides practical storage directly beneath the cooking surface, maximising efficiency in compact kitchen layouts.

Key Features

• 900mm wide gas chargrill on an enclosed cabinet base in a low back configuration
• 3 x 33MJ/hr stainless steel burners, total output 100MJ/hr (27.8kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves channelling grease to a front collection trough
• Individual pilot ignition and flame failure protection on each burner
• Radiants, burner assemblies and grease tray baffles are all independently removable for straightforward cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Compatible with natural gas and LPG; 3/4 BSP male gas connection
• 304 stainless steel construction
• Integrated splashback included
• Default colour black; additional colour options available
• Part of the Waldorf Bold modular suite
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
