Overview

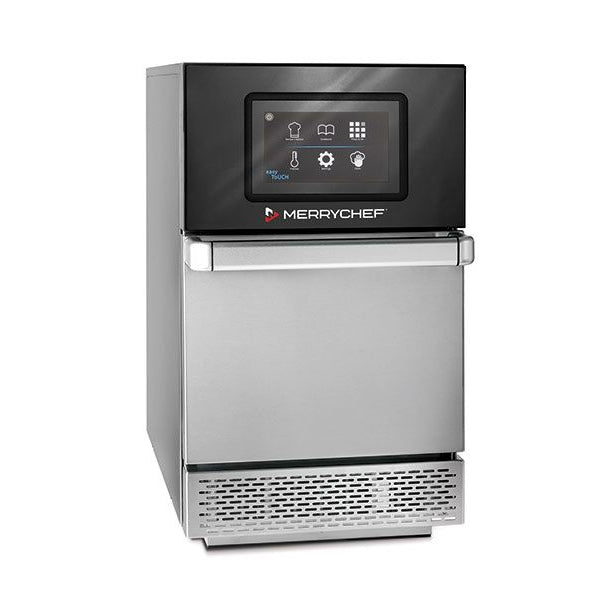

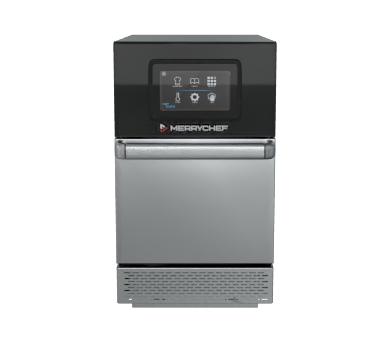

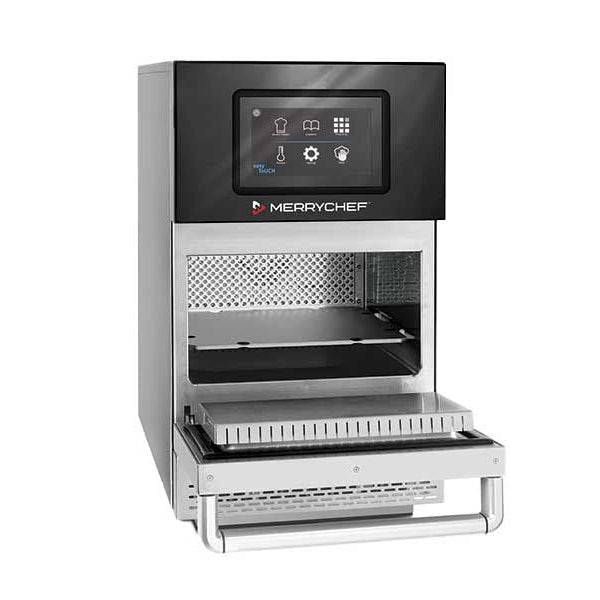

Merrychef conneX 12 HP High Speed Cook Oven

The Merrychef conneX 12 HP is a professional-grade commercial high speed cook oven built for cafés, quick service restaurants, convenience stores, kiosks, hotels, and high-volume catering operations that demand ultra-fast cooking without sacrificing food quality. Its High Speed Technology combines microwave energy, convection heat, and tuned impingement in a single countertop unit, delivering cooking times up to 20 times faster than conventional methods while producing consistent browning, crisping, grilling, toasting, and reheating results across fresh and frozen food.

Designed to fit on a standard 600 mm bench depth, the conneX 12 HP houses a 305 mm x 305 mm cavity within a compact 357 mm wide footprint, making it highly practical even in space-constrained front-of-house environments. Ventless operation via an integrated catalytic converter removes the requirement for a traditional exhaust hood in many installations, while Wi-Fi and ethernet connectivity, USB menu management, self-diagnostics, and the easyTouch 2.0 HD touchscreen control panel combine to simplify daily operation and ongoing maintenance in demanding foodservice settings.

Key Benefits

• Cooks up to 20 times faster than conventional ovens, dramatically increasing throughput during peak service periods.
• Ventless catalytic converter allows installation without a traditional exhaust hood, reducing fit-out costs and opening up front-of-house placement options.
• Quiet operation below 48 dBA means the oven can be deployed in customer-facing areas without disrupting the dining environment.
• Multi-stage recipe profiles with programmable microwave power, cook times, and pictorial or written instructions per stage reduce the training burden on staff and ensure consistent results every time.
• Wi-Fi, ethernet, and USB connectivity enable fast menu updates and remote data transfer, keeping recipes current across multiple locations with minimal effort.
• Energy-efficient design with rapid pre-heat and low standby power consumption helps control operating costs in high-use commercial kitchens.
• Cool-to-touch stainless steel exterior requires zero side and rear clearance, maximising flexibility when positioning the oven on the bench.
• Self-diagnostics continuously monitor internal components, helping operators identify issues early and reduce costly unplanned downtime.
• All-in-one cooking capability for rapid cooking, toasting, grilling, and reheating consolidates multiple appliances into a single compact unit.

Key Features

• High Speed Technology combining microwave, convection heat, and tuned impingement in one unit.
• 2000 W microwave output and 2200 W convection heat output; approximately 5.8–6 kW total power consumption.
• Oven cavity accommodates plates up to 305 mm x 305 mm (12 inch), suitable for a wide range of commercial plate and tray sizes.
• Compact 357 mm wide footprint fits on a standard 600 mm bench depth.
• Ventless operation via integrated catalytic converter; no external extraction hood required in many installations.
• Quiet operation rated below 48 dBA.
• 7 inch HD widescreen colour display with robust glass surround.
• easyTouch 2.0 icon-driven touchscreen control panel with unlimited storage for multi-stage cooking profiles.
• Each cooking profile supports up to 6 programmable stages with individual cook times, microwave power levels, and written or pictorial user instructions.
• Capability to store and access over 100 pre-programmed recipes.
• USB port for easy menu updates and data transfer.
• Wi-Fi and ethernet connectivity for remote menu management and data transfer.
• Self-diagnostics capability to monitor oven components and support reliability during service.
• Precise temperature setting range from 100°C to 275°C.
• Patented front-mounted removable air filter for easy access and maintenance.
• Stainless steel cavity and casework throughout.
• Sealed rounded-edge cavity for straightforward cleaning and improved hygiene.
• Cool-to-touch door and exterior surfaces; zero clearance required at sides and back.
• Electric supply: 400–415 V, 50 Hz, 2P+N+E, 20 A, 5-pin plug.
• Country of origin: United Kingdom.
• 2-year parts and labour warranty.
• Countertop/benchtop installation type.
• Included accessories: flat cook plate (DB0739, 300 mm x 300 mm x 6 mm), paddle with hand guard and sides (SF318, 298 mm x 300 mm), full-size cooking tray (32Z4165, 286 mm x 286 mm x 15 mm).

Specifications

• Width (mm): 357
• Depth (mm): 643
• Height (mm): 619
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 69
• Packed Width (mm): 600.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 730.0
• Shipping Cubic: 0.262800000m3
• Material: Stainless Steel
• Country of Origin: UK
• Warranty (months): 24
• Installation Type: Countertop
• Control Type: easyTouch Touchscreen
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Rating: 2 phase model|20A 5 pin plug|2P+N+E|400-415|5.8kW|50Hz
• Power Supply: 400-415V 50Hz 2P+N+E 20A
• Voltage/Phase: 230V 50Hz Single Phase
• Temperature Range: 100°C – 275°C
