Overview

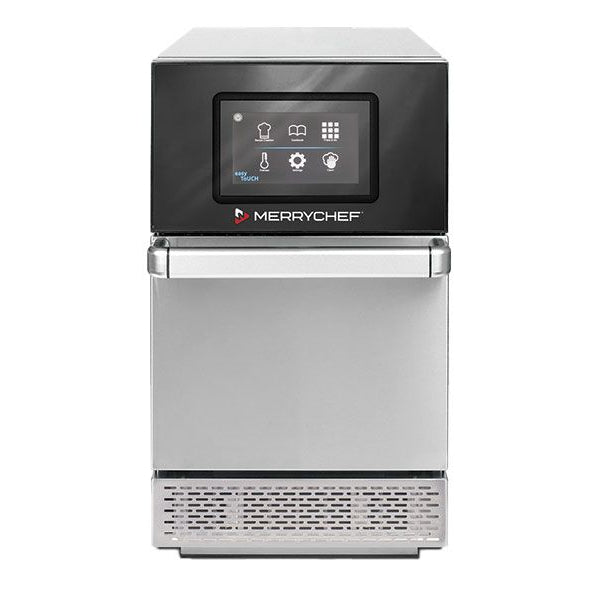

Merrychef conneX 12 SP High Speed Cook Oven

The Merrychef conneX 12 SP is a compact, all-in-one high speed commercial oven engineered for cafés, quick service restaurants, bakeries, convenience stores, kiosks, hotels, and other fast-paced hospitality venues. It combines three heat technologies — microwave, convection, and tuned impingement — to cook, toast, grill, reheat, and finish fresh or frozen food at speeds up to 20 times faster than conventional cooking methods, all from a single countertop unit.

Designed for true plug-and-play installation, the conneX 12 SP operates from a standard single phase 15A power supply and fits neatly on a 600mm bench depth without requiring costly electrical upgrades or a traditional extraction hood, thanks to its built-in catalytic converter ventless system. The intuitive 7-inch HD easyTouch 2.0 colour touchscreen stores unlimited multi-stage recipe programs, and quiet operation below 48 dBA makes it equally suited to front-of-house and back-of-house environments.

Key Benefits

• Cooks up to 20 times faster than conventional ovens, dramatically reducing wait times and increasing throughput during peak service periods.
• Ventless operation via the integrated catalytic converter removes the need for an external extraction hood, simplifying installation and reducing fit-out costs.
• Plug-and-play 15A single phase connection means no expensive electrical infrastructure upgrades are required before the oven can go into service.
• Fits on standard 600mm deep benches and cool-to-touch exterior surfaces allow zero clearance at the sides and back, maximising use of limited counter space.
• Multi-stage recipe storage with pictorial and written instructions on the easyTouch 2.0 controller minimises staff training time and ensures consistent results across all operators.
• Self-diagnostics capability continuously monitors internal components, helping to identify issues early and reduce unplanned downtime.
• Quiet operation below 48 dBA keeps the working environment comfortable, whether the oven is positioned in a customer-facing area or a busy kitchen.
• Energy efficient design with rapid pre-heat and cool-down cycles and low standby power consumption reduces operating costs over time.
• USB and Wi-Fi/ethernet connectivity allow quick menu updates and remote data transfer, keeping cooking programs current without disrupting service.

Key Features

• High Speed Technology combining microwave, convection heat, and tuned impingement for rapid, consistent cooking results.
• Cooks, toasts, grills, reheats, and finishes both fresh and frozen food products in a single unit.
• Ventless cooking through a built-in catalytic converter, enabling installation without a traditional extraction system.
• Plug-and-play single phase 15A power supply (230–240V, 50Hz, 1P+N+E).
• Fits on standard 600mm bench depth; compact 357mm wide footprint.
• Oven cavity accommodates plates up to 305mm x 305mm (12" x 12").
• Quiet operation rated below 48 dBA.
• 7-inch HD widescreen colour display with robust glass surround.
• easyTouch 2.0 icon-driven touchscreen control panel with unlimited storage for multi-stage cooking profiles.
• Each cooking profile supports up to 6 programmable stages with individual cooking times, microwave power settings, and written or pictorial user instructions.
• Precise temperature adjustment from 100°C to 275°C.
• USB port for easy menu updates and data transfer.
• Wi-Fi and ethernet connectivity for remote menu management.
• Self-diagnostics capability to monitor and report on internal components.
• Patented front-mounted air filter with easy access for simplified cleaning and maintenance.
• Stainless steel cavity and casework throughout.
• Sealed, rounded-edge cavity interior for straightforward cleaning and hygiene.
• Cool-to-touch door and stainless steel exterior for operator safety and zero side/rear clearance installation.
• Country of origin: United Kingdom.
• 2-year warranty on parts and labour.

Specifications

• Width (mm): 357
• Depth (mm): 643
• Height (mm): 619
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 60
• Packed Width (mm): 400.0
• Packed Height (mm): 700.0
• Packed Depth (mm): 700.0
• Shipping Cubic: 0.196000000m3
• Material: Stainless Steel
• Country of Origin: UK
• Warranty (months): 24
• Installation Type: Countertop
• Control Type: easyTouch Touchscreen
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Supply: 230-240V 50Hz 1P+N+E 15A
• Power (kW): 15
• Voltage/Phase: 230V 50Hz Single Phase
• Temperature Range: 100 °C – 275 °C
