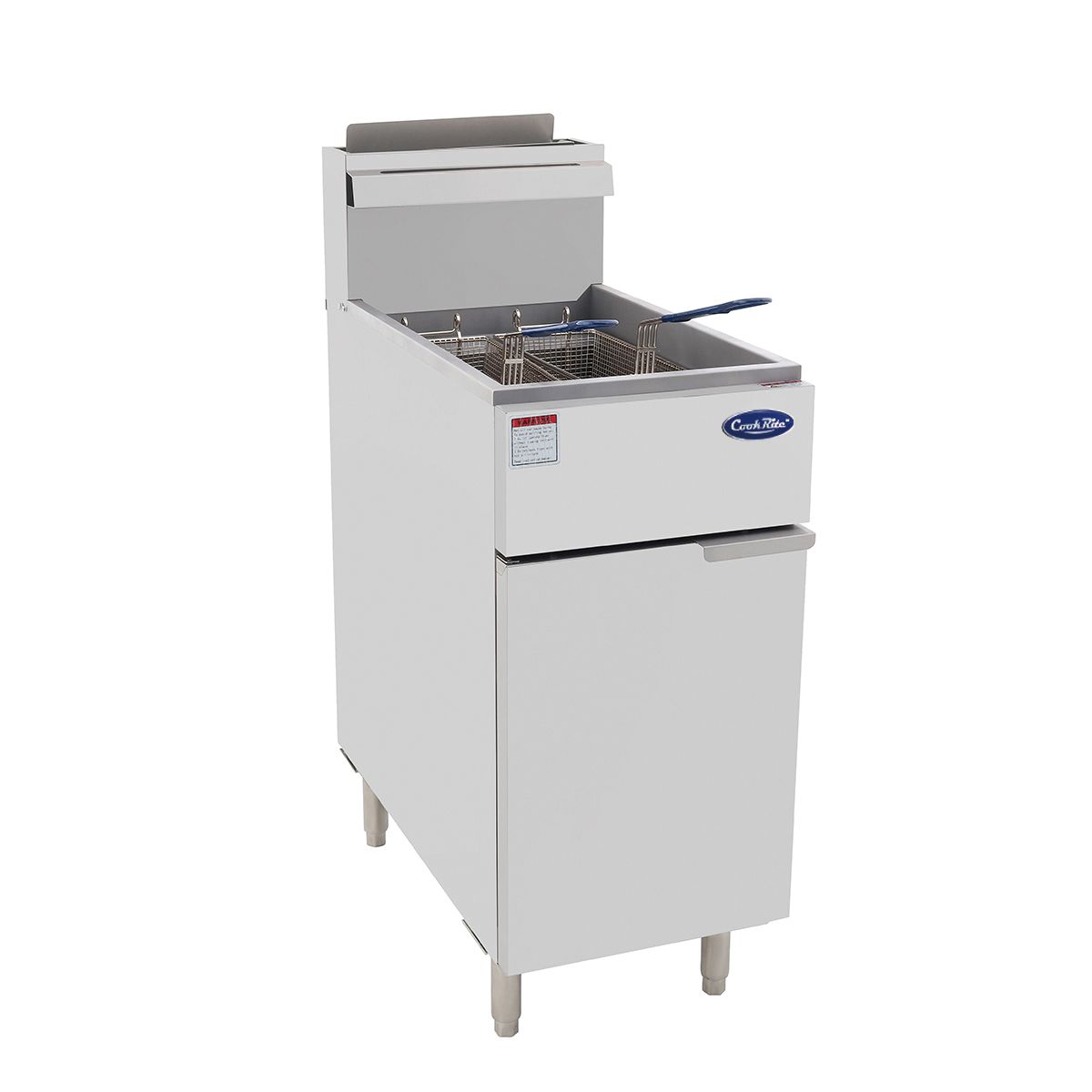

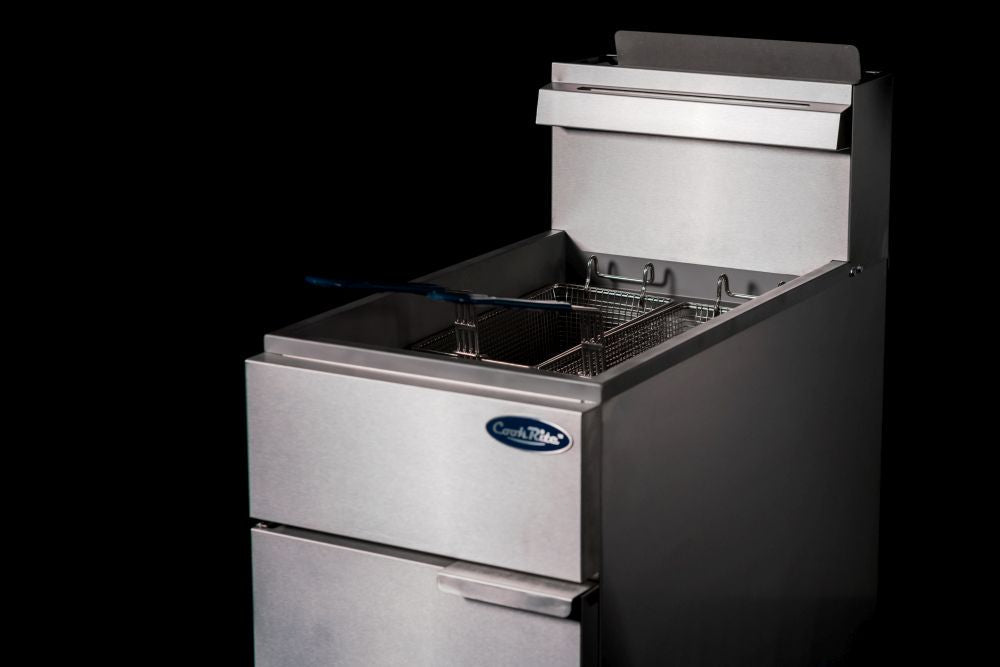

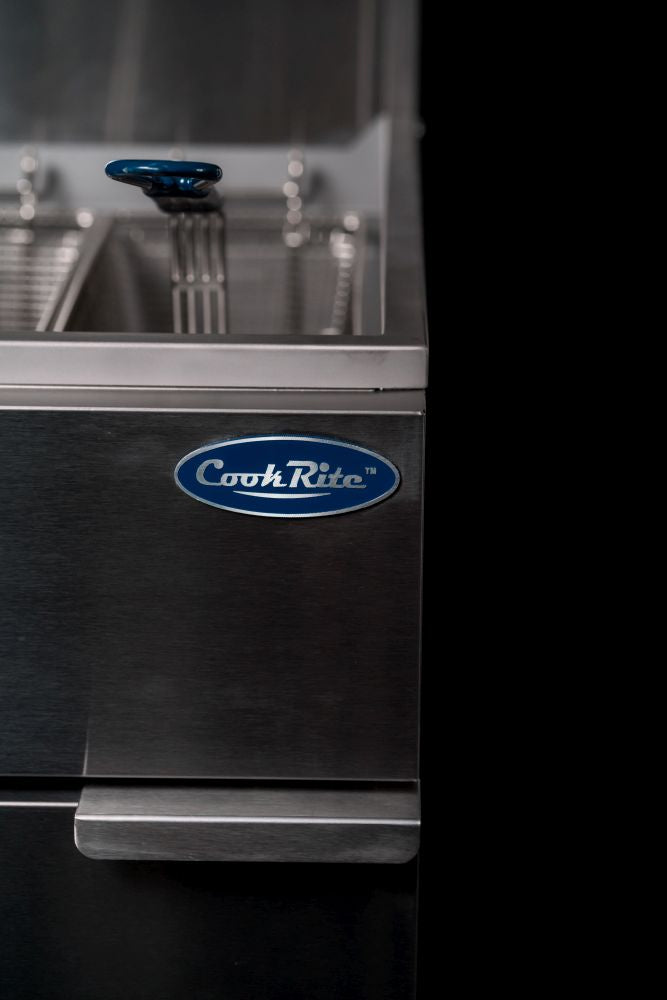

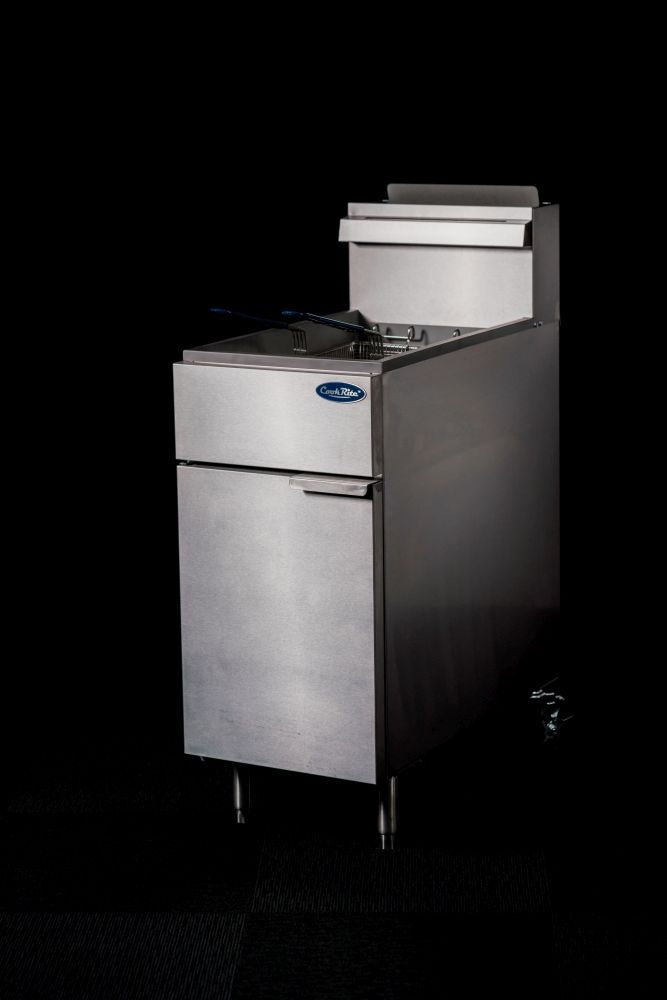

Cookrite ATFS-40-NG 3 Tube Gas Deep Fryer – Natural Gas

The Cookrite ATFS-40-NG is a freestanding natural gas deep fryer built for the demands of high-volume commercial kitchens. Constructed entirely from 304 stainless steel, it features three heavy-duty tube burners delivering a combined output of 84 MJ/h, with each burner rated at 28 MJ/h for fast, consistent heat across the full fry tank. A Robert Shaw USA thermostat provides precise thermostatic temperature control from 0°C to 240°C, while an automatic safety valve stabilising function and standard flame failure device ensure safe, reliable operation throughout the service period.

Designed with practical kitchen workflow in mind, the ATFS-40-NG includes nickel-plated frying baskets, a front screw-on drain pipe for straightforward oil changes, and an oil cooling zone at the base of the tank that traps food residue away from the cooking area to extend oil life. Adjustable stainless steel legs allow levelling on uneven floors, and heavy-duty rear castors make repositioning easy. The unit is gas approved Australia-wide and available in both natural gas and LPG configurations, as well as 3, 4 and 5 burner variants to suit different output requirements.

Key Benefits

• High 84 MJ/h total burner output delivers rapid heat recovery between batches, keeping throughput high during peak service.
• Thermostatic control from 0°C to 240°C via a heavy-duty Robert Shaw USA thermostat ensures consistent frying results across a wide menu range.
• Oil cooling zone at the base of the tank traps food particles away from the cooking area, extending oil life and reducing waste costs.
• Standard flame failure device and automatic safety valve stabilising function protect staff and equipment from gas-related hazards.
• Front screw-on drain pipe simplifies oil changes and routine cleaning, minimising downtime between services.
• Nickel-plated frying baskets and a stainless steel splashback are easy to clean and built to withstand continuous commercial use.
• Adjustable stainless steel legs and heavy-duty rear castors allow precise levelling and straightforward repositioning within the kitchen.
• Gas approved Australia-wide and available in natural gas or LPG, with 3, 4 and 5 burner configurations to match varying capacity needs.

Key Features

• 304 stainless steel construction throughout, including frame and splashback
• Three heavy-duty tube burners, each rated at 28 MJ/h, for a combined 84 MJ/h total output
• Robert Shaw USA heavy-duty thermostat with thermostatic temperature control from 0°C to 240°C
• American Robert Shaw valves and controls
• Standard flame failure device for safe operation
• Automatic safety valve stabilising function
• Stable flame tube burners with standby pilots
• Manual ignition
• Oil cooling zone seated at the bottom of the tank to contain food residue and extend oil life
• Front screw-on drain pipe for easy oil drainage

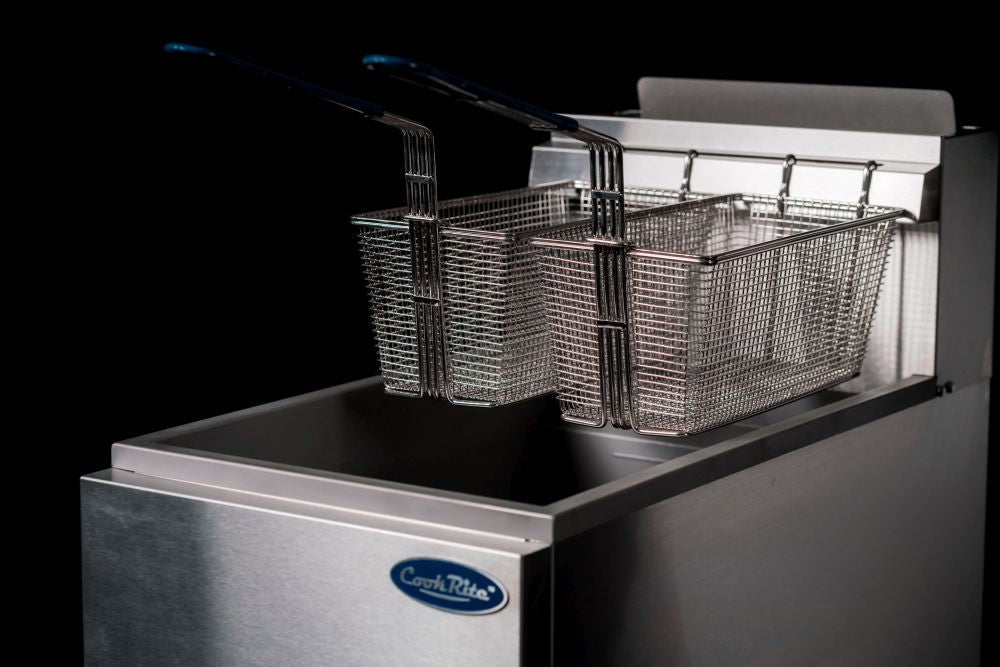

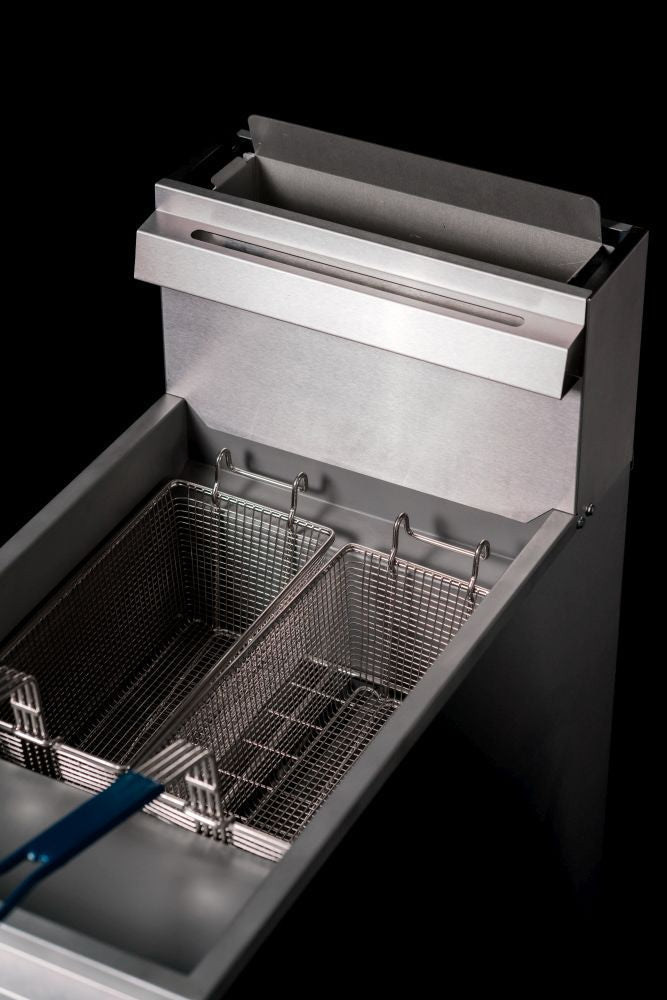

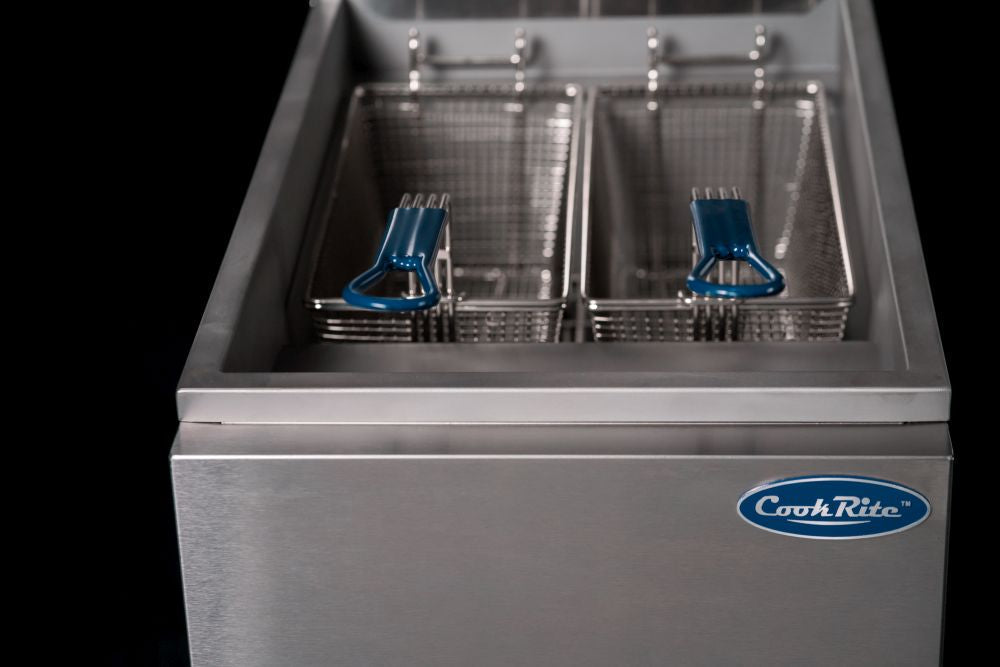

• Nickel-plated frying baskets included
• Stainless steel splashback
• Adjustable stainless steel legs for levelling on uneven surfaces

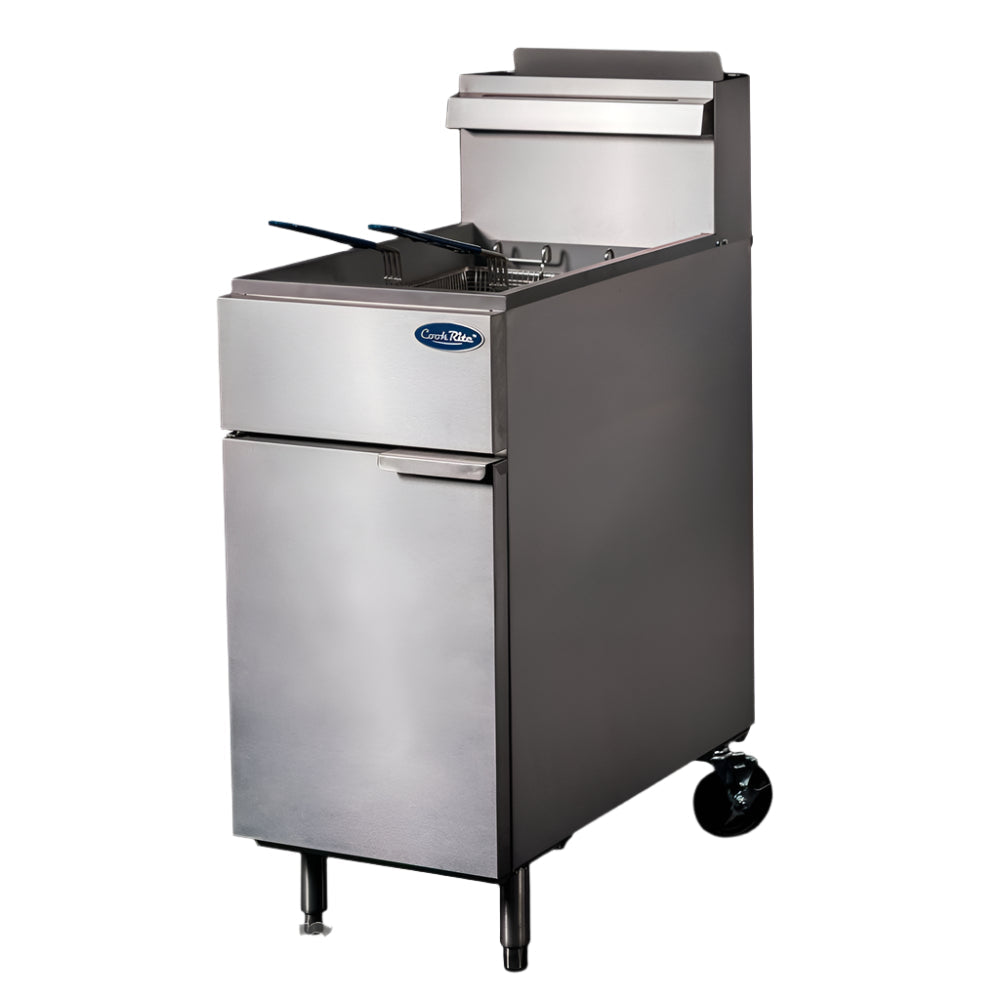

• Heavy-duty rear castors for easy repositioning
• 3/4 inch BSP gas inlet connection
• Freestanding installation
• Available in natural gas and LPG versions
• Available in 3, 4 and 5 burner configurations
• Gas approved Australia-wide
• Country of origin: China

Specifications

• Width (mm): 395
• Depth (mm): 765
• Height (mm): 1128
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: Natural Gas
• Gas Connection: 3/4" BSP
• Burner Output (MJ/h): 28 MJ/h per tube
• Packed Width (mm): 450
• Packed Depth (mm): 850
• Packed Height (mm): 965
• Shipping Weight: 72.5
• Capacity (Litres): 84
• Material: 304 Stainless Steel
• Splash Back: Yes
• Country of Origin: China
• Warranty (months): 24
• Temperature Range: 0°C - 240°C
• Installation Type: Freestanding
• Control Type: Robert Shaw Thermostat
• Temperature Control: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 3
• Power Rating: 84 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
