Overview

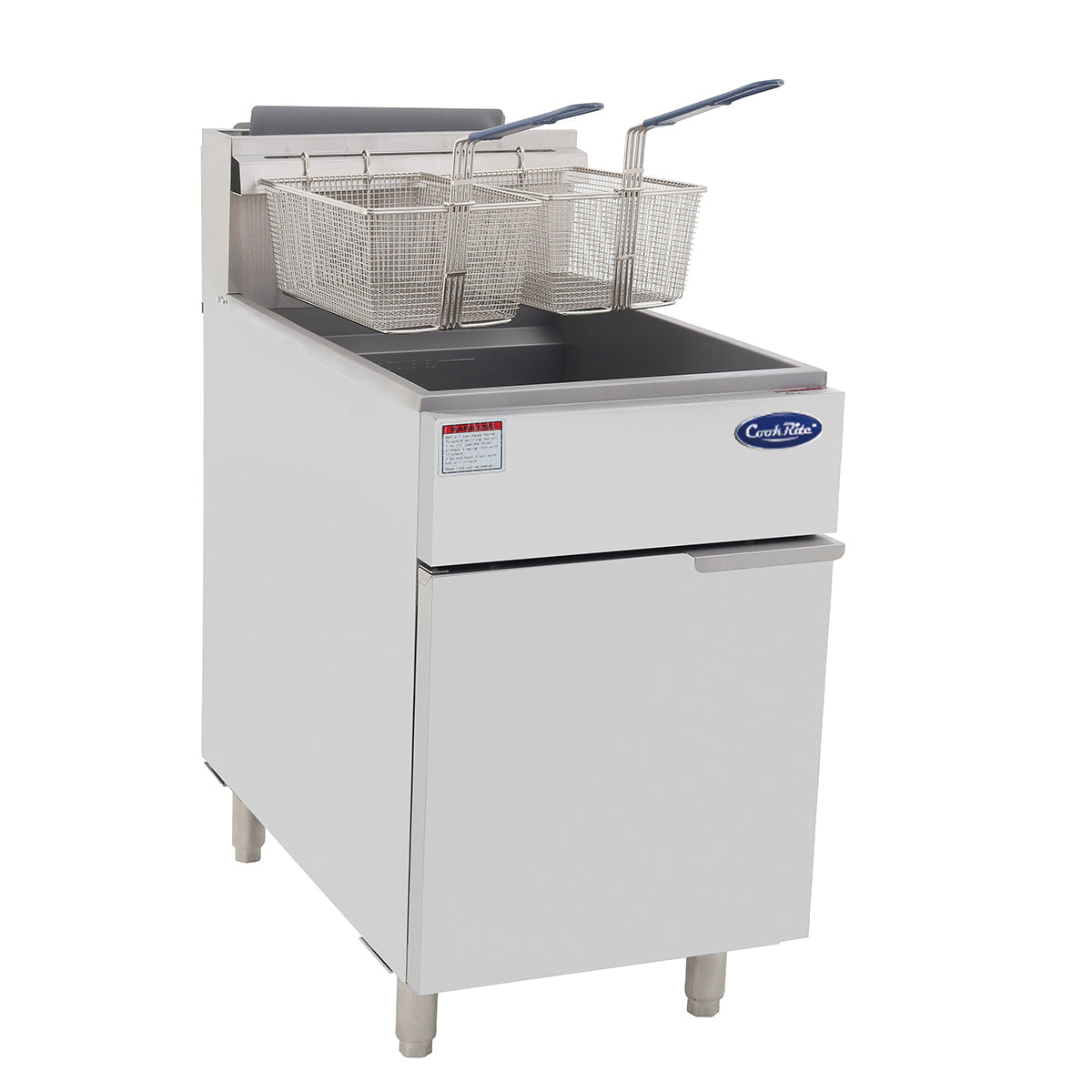

Cookrite ATFS-75-NG 5 Tube Gas Deep Fryer (Natural Gas)

The Cookrite ATFS-75-NG is a heavy-duty freestanding natural gas deep fryer built for the demands of high-volume commercial kitchens. Constructed entirely in 304 stainless steel, it features five heavy-duty tube burners delivering a total output of 140 MJ/h, providing rapid heat recovery to maintain consistent frying throughput during peak service periods.

Designed with practical kitchen operation in mind, the ATFS-75-NG incorporates an American Robert Shaw thermostat with a temperature range of 0°C to 240°C, an oil cooling zone at the base of the tank to minimise food residue build-up, and a front screw-on drain pipe for straightforward oil management. Gas approved Australia-wide and available in both natural gas and LPG configurations, this fryer suits fish and chip shops, restaurants, fast food outlets and catering operations requiring reliable, high-capacity frying performance.

Key Benefits

• Five high-output tube burners deliver 140 MJ/h total heat, enabling fast oil recovery between loads and sustaining output during busy service periods.
• The oil cooling zone at the base of the tank keeps cooler oil away from the active frying area, reducing food residue carbonisation and extending oil life.
• Robert Shaw thermostatic controls provide precise, repeatable temperature management from 0°C to 240°C, allowing accurate frying across a wide range of menu items.
• Standard flame failure protection and an automatic safety valve stabilising function help safeguard kitchen staff and comply with commercial kitchen safety requirements.
• Heavy-duty standby pilots on each tube burner ensure stable ignition and consistent flame performance under continuous cooking conditions.
• The front-mounted screw-on drain pipe makes oil changes and tank cleaning straightforward, reducing downtime between service periods.
• Nickel-plated frying baskets included as standard, ready for immediate use without additional accessories.
• Adjustable stainless steel legs and heavy-duty rear castors allow the unit to be levelled on uneven floors and repositioned within the kitchen as needed.
• Available in 3, 4 and 5 burner configurations in both natural gas and LPG, offering flexibility to match kitchen output requirements and gas supply.

Key Features

• Full 304 stainless steel construction throughout body, splashback and adjustable legs for corrosion resistance and easy cleaning.

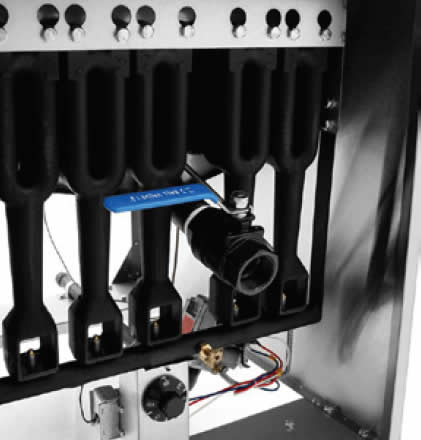

• Five heavy-duty tube burners with a combined gas rating of 140 MJ/h (28 MJ/h per tube).

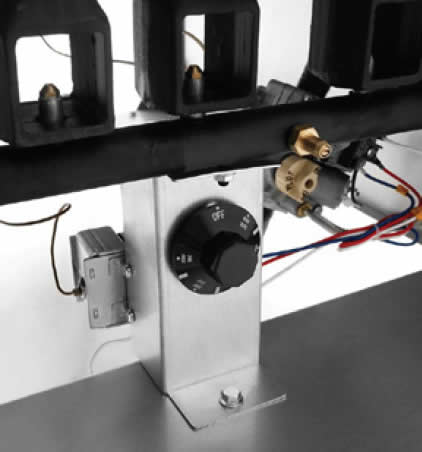

• American Robert Shaw thermostat and valve controls with a temperature range of 0°C to 240°C.
• Standard flame failure device on each burner for operator safety.
• Automatic safety valve stabilising function.
• Manual ignition with standby pilot flames on each tube burner for reliable re-ignition.
• Oil cooling zone seated at the bottom of the tank to trap food residue away from the active frying area.
• Front screw-on drain pipe for convenient oil draining and tank servicing.
• Stainless steel splashback included.

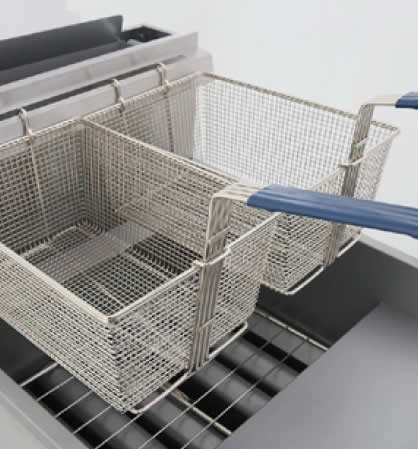

• Nickel-plated frying baskets included.
• Heavy-duty rear castors for safe repositioning.
• Adjustable stainless steel legs for levelling on uneven surfaces.
• 3/4 inch BSP gas inlet connection.
• Freestanding installation type; no external power supply required.
• Total oil capacity of 114 litres across the unit.
• Gas approved for use Australia-wide.
• Available in natural gas (NG) and LPG variants.
• Also available in 3 and 4 burner configurations.
• Country of origin: China.
• 24-month warranty.

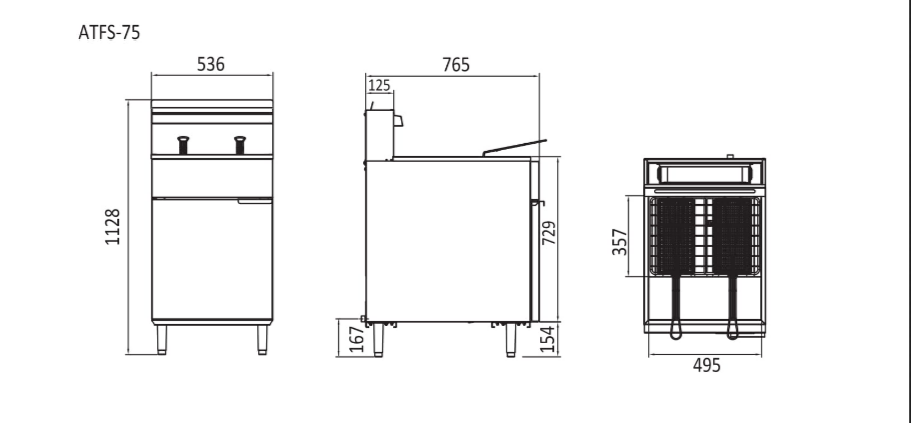

Specifications

• Width (mm): 535
• Depth (mm): 765
• Height (mm): 1128
• Weight (kg): 76
• Colour: Stainless Steel
• Gas Type: Natural Gas
• Gas Connection: 3/4" BSP
• Burner Output (MJ/h): 28 MJ/h per tube
• Packed Width (mm): 590
• Packed Depth (mm): 850
• Packed Height (mm): 970
• Shipping Weight: 90.5
• Capacity (Litres): 114
• Material: 304 Stainless Steel
• Splash Back: Yes
• Country of Origin: China
• Warranty (months): 24
• Temperature Range: 0°C - 240°C
• Installation Type: Freestanding
• Control Type: Robert Shaw Thermostat
• Temperature Control: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 5
• Power Rating: 140 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
