Overview

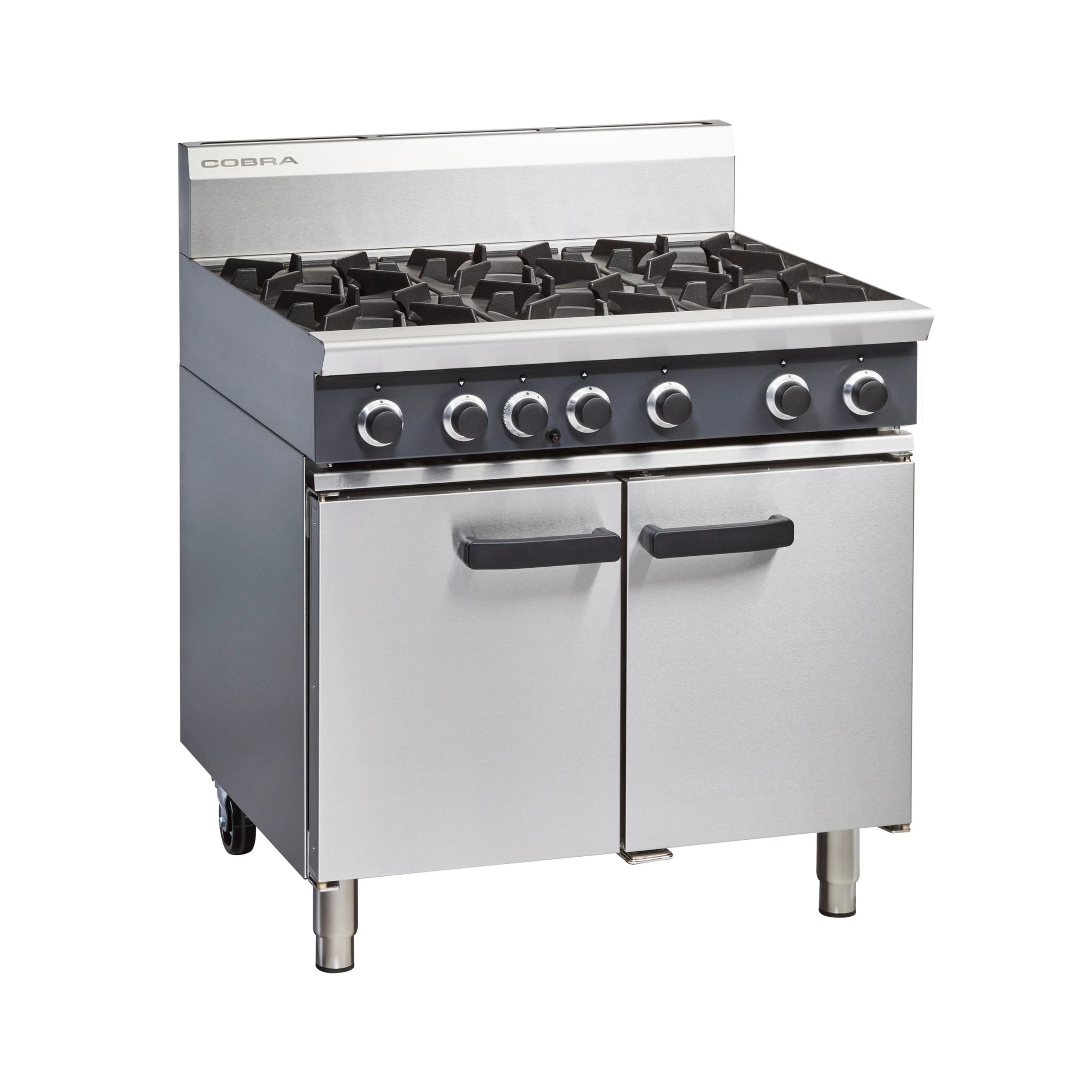

Cobra CR9D 900mm Six Burner Gas Range Static Oven

The Cobra CR9D is a 900mm wide, six burner gas range with integrated static oven, purpose-built for the demands of high-volume commercial kitchens. Six cast iron open burners, each rated at 22 MJ/hr, deliver a total hob output of 132 MJ/hr, while the high-crown gas static oven beneath accommodates 2/1 GN or two 1/1 GN gastronorm pans per rack across four rack positions, giving chefs the flexibility to bake, roast, and braise at volume without compromise.

Constructed in stainless steel with a welded vitreous enamelled oven liner, vitreous enamel pot stands, and a machine-finished 12mm thick griddle plate option, the CR9D is engineered for durability and effortless cleaning. Flame failure protection is standard on the open burners, manual pilot ignition is fitted as standard, and the unit features a French door system for full-width oven access. Fully modular in design with adjustable front feet and rear rollers, it integrates cleanly into any commercial cook line and is available in both Natural Gas and LPG configurations.

Key Benefits

• Six 22 MJ/hr open burners provide intense, responsive heat for boiling, sautéing, searing, and frying during peak service
• High-crown static oven accepts 2/1 GN or two 1/1 GN pans per rack, supporting large batch baking and roasting without multiple loads
• Four-position racking system gives chefs precise control over heat proximity for different dishes and tray sizes
• Flame failure protection standard on every open burner adds a critical layer of safety in fast-paced kitchen environments
• French door system allows full-width oven access, making it easy to load and unload large gastronorm trays safely
• Welded vitreous enamelled oven liner and enamel pot stands resist staining and wipe down quickly, reducing cleaning time between services
• Adjustable front feet and rear rollers make levelling straightforward on uneven floors and allow the unit to be repositioned without lifting
• Fully modular construction means the CR9D can be paired with other Cobra 900mm suite equipment to build a continuous, custom cook line
• Available in Natural Gas and LPG, with a 3/4 BSP male gas connection, to suit a wide range of commercial kitchen installations

Key Features

• Six open burners, each rated at 22 MJ/hr, total hob output 132 MJ/hr
• Total unit gas rating: 160 MJ/hr (44.4 kW)
• Cast iron burners with vitreous enamel pot stands for durability and stability
• Variable high-to-low burner controls for precise heat management
• Flame failure device standard on all open burners
• Optional pilot flame failure upgrade kit available per 300mm section (additional cost applies)
• Manual pilot ignition as standard
• Gas static oven accommodates 2/1 GN or two 1/1 GN gastronorm pans per rack
• High crown oven interior height for flexible pan and tray configurations
• Four-position rack system for versatile heat zone adjustment
• French door system providing full-width access to the oven cavity
• Welded vitreous enamelled oven liner for easy cleaning and long-term hygiene
• Machine-finished 12mm thick griddle plate (optional hob configuration)
• Optional hob variations allow configuration between open burners and griddle sections
• Stainless steel exterior finish throughout
• Oven cavity dimensions: 760mm W x 615mm D x 365mm H
• Rack size: 750mm x 590mm
• 170mm splashback included
• Adjustable front feet and rear rollers for easy levelling and repositioning
• Fully modular design for integration into a continuous suite
• Freestanding, free-standing installation with R 3/4 BSP male gas connection
• Available in Natural Gas or LPG
• Manufactured in New Zealand
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 900
• Depth (mm): 800
• Height (mm): 915
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Ignition Type: Manual Pilot
• Burner Output (MJ/h): 160
• Shipping Weight: 210
• Packed Width (mm): 940.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 865.0
• Shipping Cubic: 1.020441000m3
• Material: Stainless Steel
• Undershelf: Open Cabinet Base
• Splash Back: Yes (170mm)
• Country of Origin: New Zealand
• Warranty (months): 24
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 160 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
